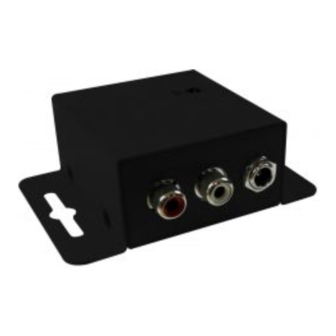

SIIG AV-GM0AR3-S1 Quick Start Manual

Stereo to spdif converter with adjustable audio delay
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Stereo to SPDIF Converter with Adjustable
Audio Delay
P/N: AV-GM0AR3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM0AR3-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG AV-GM0AR3-S1

Summary of Contents for SIIG AV-GM0AR3-S1

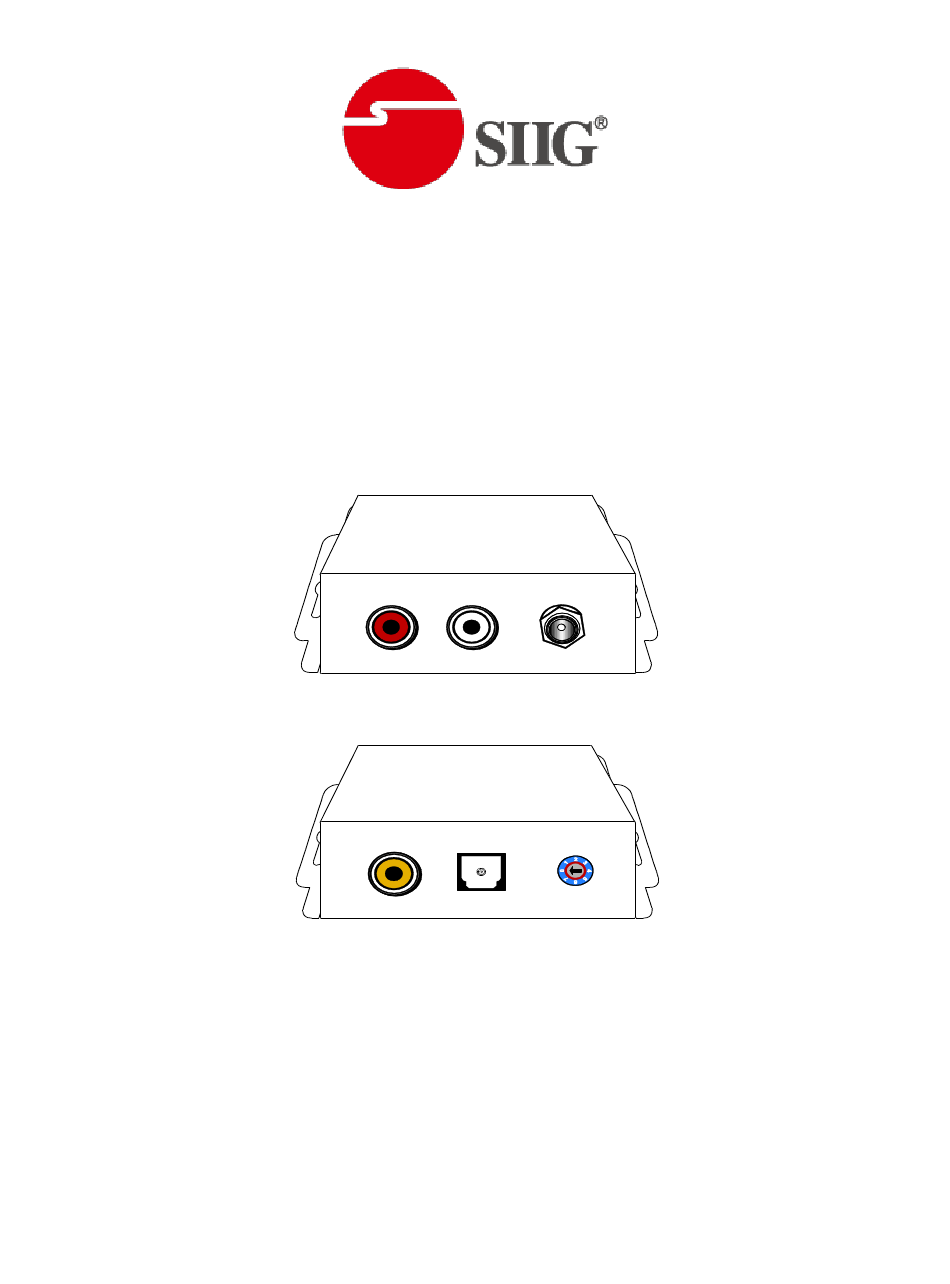

  • Page 1 Stereo to SPDIF Converter with Adjustable Audio Delay P/N: AV-GM0AR3-S1...

  • Page 2: Safety And Notice

    However, like all electronic equipments, the AV-GM0AR3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 Typical applications include HDTV lip-sync delay and home theater rear-channel effects etc. AV-GM0AR3-S1 offers a rotary switcher for user to fine tune the audio delays. With high quality 24 bit DAC and digital output through RCA and TOSLINK connectors, the audio quality is guaranteed with the minimal signal loss.
  • Page 4 Inter-locked 5V 2A DC Power consumption 7 Watts [max] Operation 0~40C [32~104F] temperature Storage temperature -20~60C [-4~140F] Relative humidity 20~90% RH [no condensation] 1x AV-GM0AR3-S1 Package Contents 1x User Manual 1x 5V 2A interlocked wall wart power adapter ~ 3 ~...

  • Page 5: Panel Descriptions

    Panel Descriptions Front Panel 1. +5V DC Power 2. Stereo audio input 3. Stereo audio input Rear Panel 4. Audio delay skew 5. S/PDIF output 6. S/PDIF output ~ 4 ~...

  • Page 6: Hardware Installation

    Hardware Installation 1. Connect your analog stereo audio source to AV-GM0AR3-S1. 2. Connect S/PDIF enable speaker to either RCA or TOSLINK connector of AV-GM0AR3-S1. 3. Plug in 5V DC power cord to the power jack of AV-GM0AR3-S1. 4. Adjust audio delay.

  • Page 7: Limited Warranty

    Limited Warranty The SELLER warrants the AV-GM0AR3-S1 Stereo to S/PDIF Converter with Adjustable Audio Delay to be free from defects in the material and workmanship for 3 years from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working...
  • Page 8 Support For more info or tech support http://www.siig.com/support April, 2018 ~ 7 ~...
