Summary of Contents for SIIG AV-GM01Q3-S1DS

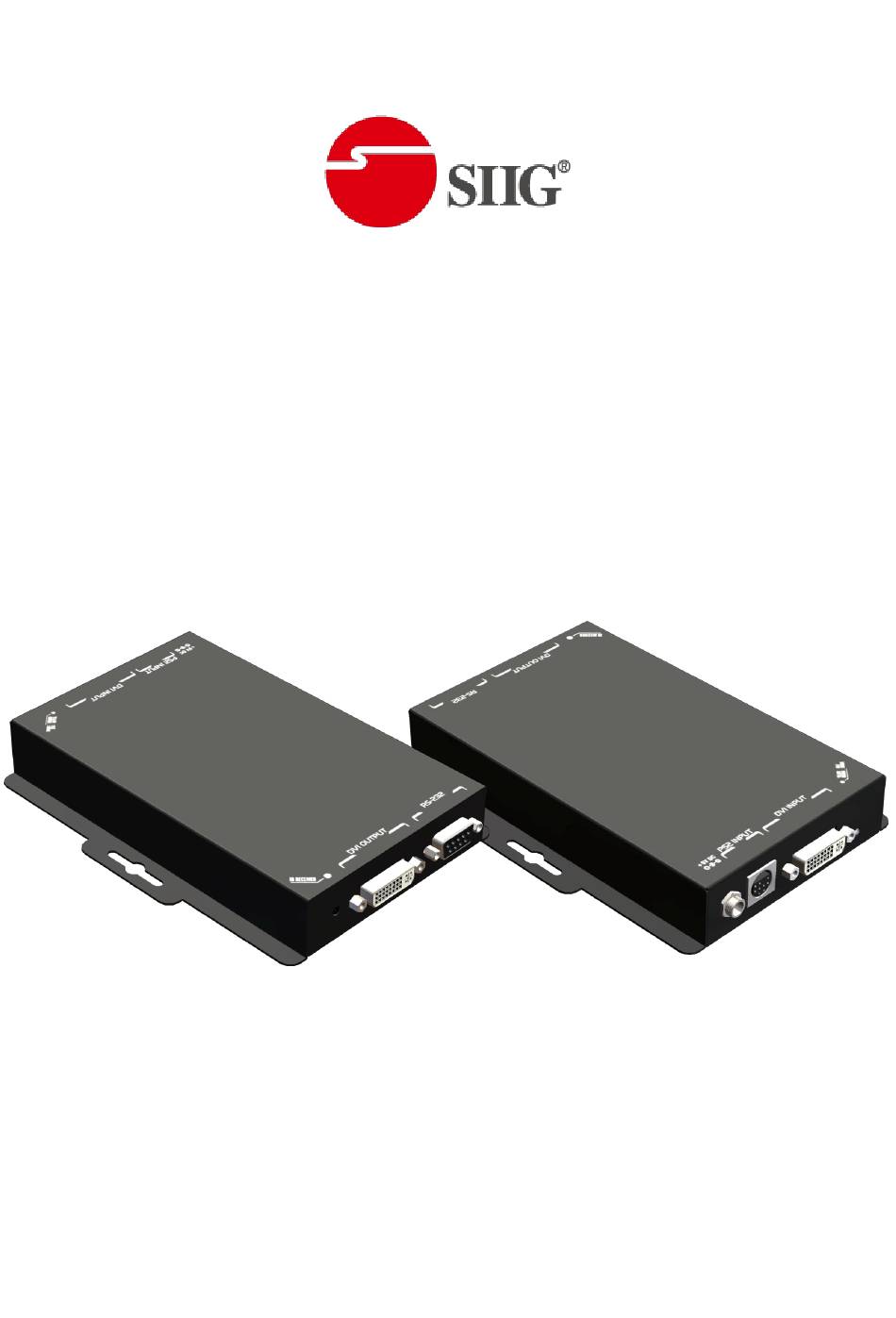

- Page 1 Dual-View Universal Video to DVI-I Scaler P/N: AV-GM01Q3-S1DS...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM01Q3-S1DS should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
With versatile IR remote control, AV-GM01Q3-S1DS offers a very easy way to convert, switch, adjust videos at your convenience. With PIP and PAP support, users can display two video inputs at the same... -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM01Q3-S1DS Technical Role of usage Video scaling & format converter HDMI & HDCP HDMI & HDCP 1.1 Compliance Digital video bandwidth 4.95 Gbps Analog video 165 MHz bandwidth Maximum resolution 1080p60 / 1920x1200@60 Input TMDS signal 1.2 Volts [peak-to-peak]... -
Page 5: Ir Remote Control
IR REMOTE CONTROL PIP/PAP Menu Freeze Video Sleep ON Menu Control Buttons Menu On Exit OSD Source: Sequential source switch Info: Display input type and time Auto: Auto adjustment for VGA input C.C.:No use in this model HDMI:No use in this model TV: No use in this model Aspect: Aspect ratio change CV1: Composite... - Page 6 The buttons not listed above are not in use for this model.
-
Page 7: Panel Descriptions
PANEL DESCRIPTIONS Front Panel IR: IR sensor DVI: DVI & VGA output RS-232: Firmware update and future software control Rear Panel Power: +5V DV latch-locking PS2: S-Video/Composite input DVI: HDMI/DVI/Component/VGA input LED: Indicates power up, idle, no signal... -
Page 8: Hardware Installation
1. Power up the AV-GM01Q3-S1DS. 2. To reset AV-GM01Q3-S1DS back to the factory default values, pull up-and-down the DIP switch 1 & 2 from OFF to ON to complete the process. You NEED to pull back the DIP switch back to OFF in order to get AV-GM01Q3-S1DS work normally. -
Page 9: Ir Control Tree
IR CONTROL TREE... -
Page 13: Software Procedure
SOFTWARE PROCEDURE 1. Setting Select the correct ComPort connected to the device. Push “Scan” to start the automatic scan on each. 2. System IR Simulation Cutting Function Update the status from the device to software. Main Function... - Page 14 3. Display Control Display Mode 4. Firmware Update 1. Press this button first 2. Reboot the device to proceed firmware updating...
-
Page 15: Connection Diagram
CONNECTION DIAGRAM... -
Page 16: Warranty
Also, the technical information contained herein regarding the AV-GM01Q3-S1DS features and specifications is subject to change without further notice...
