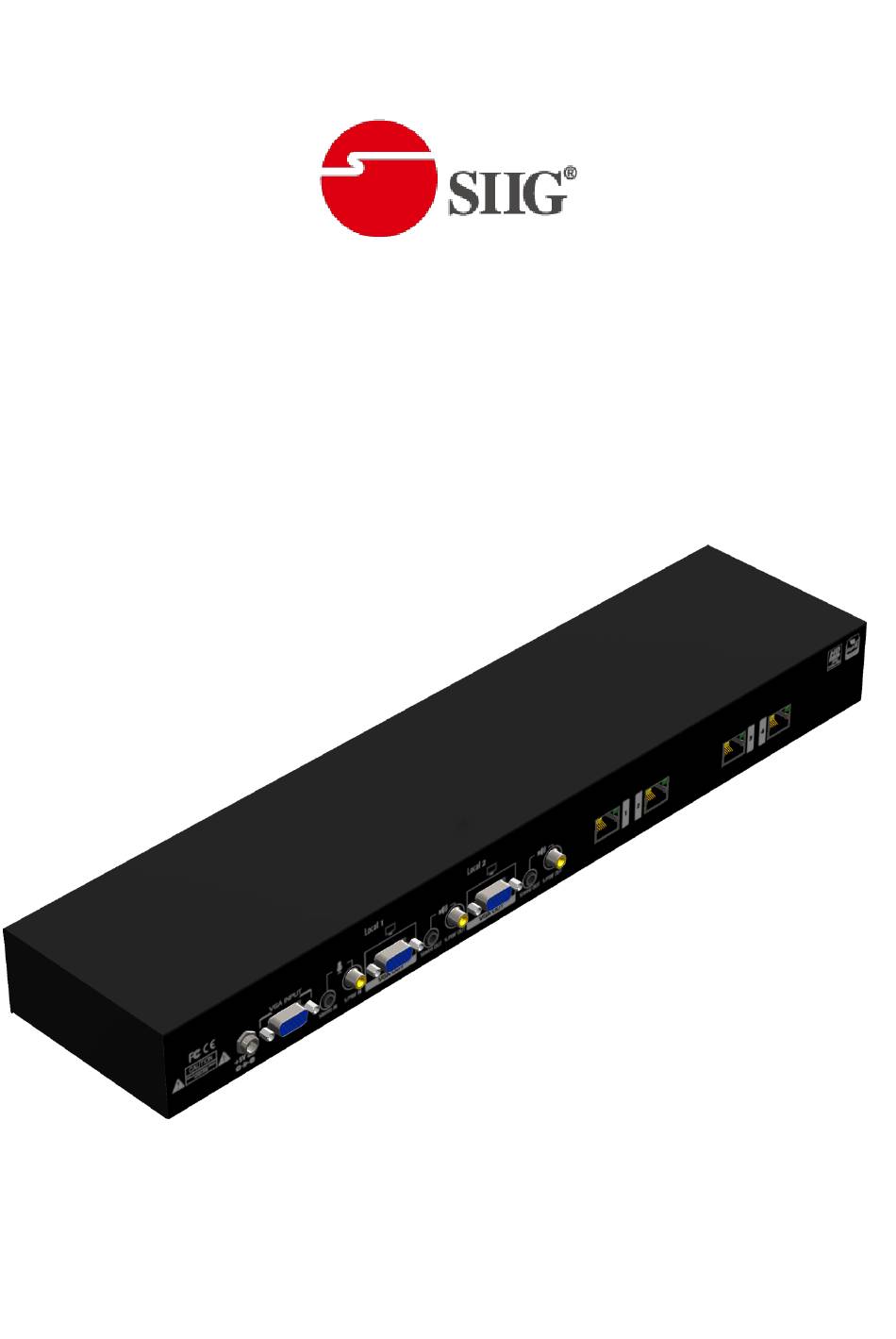

- Page 1 1x4 VGA & Audio over CAT 6 SHIELDED Splitter P/N: AV-GM06R3-S1...
-
Page 2: Safety And Notice
However, like all electronic equipments, the AV-GM06R3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Package Contents
INTRODUCTION The AV-GM06R3-S1 1x4 VGA & Audio over CAT 6 SHIELDED Splitter with only one cost effective Cat-6 Shielded cable lets you extend VGA or component video (WUXGA) and stereo/analog audio signals to cover the distance up to 330m to four VGA & Audio over CAT 6 SHIELDED receivers (BPVGARA or BPVGARAD). - Page 4 ● 1x AV-GM06R3-S1 ● 1x 1RU rack-mounting ear set ● 1x 5V power supply unit ● 1x C7 power cord ● 1x User Manual ~ 3 ~...
-
Page 5: Specifications
SPECIFICATIONS Model Name AV-GM06R3-S1 Technical Role of usage 1x2 Distribution Amplifier Transmitter [TX] HDMI compliance HDMI Deep Color & 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color Transmission over UTP Full HD (1080p)-40m (130ft) [CAT.X]... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS Front Panel AUDIO SWITCH: A push-in button for input audio selection (STEREO analog stereo audio; S/PDIF S/PDIF digital stereo audio) Power: Power on/off indicator. Rear Panel +5V DC: Latch-locking power jack to connect to a 5V DC power supply unit with a C7 power cord. -
Page 7: Connection Diagram
INSTALLTION 1. Switch off all devices, including monitors. 2. Connect the video and audio sources to the AV-GM06R3-S1. For component video source, please find a VGA-component breakout cable to plug into the VGA IN port. 3. Connect the video displays and audio speakers to the receiving units BPVGARA or BPVGARAD. - Page 8 NOTICE 1. All transmission distances are measured using Belden 1583A CAT6 Shielded 125MHz Solid UTP cable and ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the distance between the video source and the VGA display. 2. The transmission length is largely affected by the type of Category cables, the type of VGA sources, and the type of VGA displays.
-
Page 9: Pin Definition
PIN DEFINITION Category Cable Transmission Performance rating Type of category cable Wiring Shielding CAT5 CAT5e CAT6 shielded Unshielded (UTP) Solid Shielded (STP) Unshielded (UTP) Stranded Shielded (STP) Please use EIA/TIA-568-B termination (T568B) at any Termination time RJ45/Cat.X... - Page 10 Support For more info or tech support http://www.siig.com/support April, 2018 ~ 9 ~...
