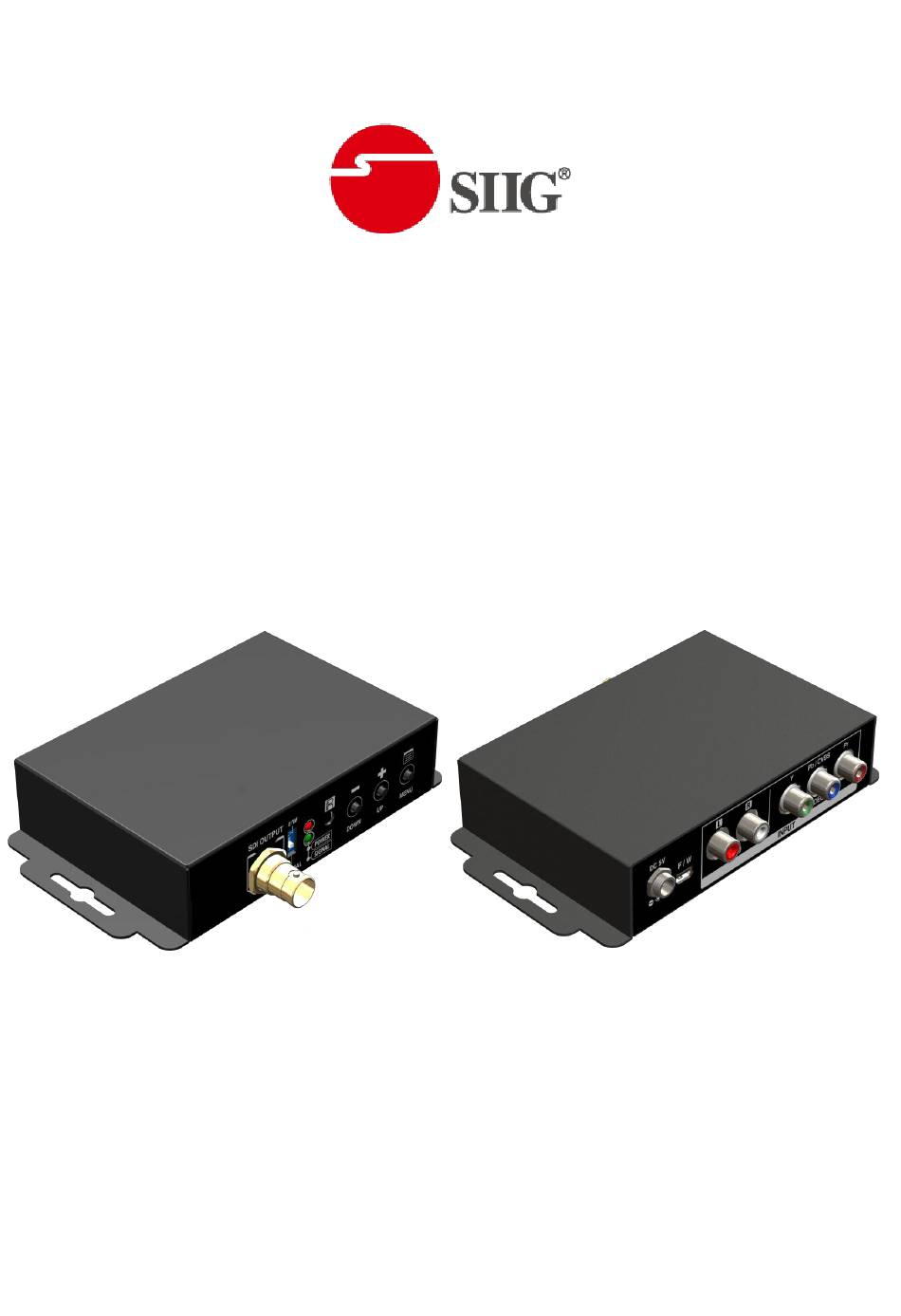

- Page 1 Component/CVBS & Audio to 3G/HD/SD-SDI Scaler Converter P/N: AV-GM0003-S1...
- Page 2 However, like all electronic equipments, the AV-GM0003-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 The AV-GM0003-S1 Component/CVBS & Audio to 3G/HD/SD-SDI Scaler Converter provides a professional way to convert CVBS with analog stereo audio to 3G/HD/SD-SDI in real time. The AV-GM0003-S1 provides low jitter SDI output. FEATURES IR remote control Remote control via Mini-USB ...
- Page 4 SPECIFICATIONS Model Name AV-GM0003-S1 Technical Role of usage Component/CVBS to SDI Converter SDI standards SD-SDI, HD-SDI & 3G-SDI Input Video Frequency 165MHz bandwidth Output Video 2.970Gpbs, 2.970/1.001Gbps bandwidth [3G] 1080p @50/59.94/60Hz (4:2:2) Output Video support [HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz [SD] NTSC @59.94Hz, PAL @50Hz...
- Page 5 PANEL DESCRIPTION Front Panel SDI OUT: 3G/HD/SD-SDI output DIP SWITCH: For firmware update ON []: firmware update mode OFF []: normal mode LED INDICATOR: [green]: signal indicator LED [red]: power indicator LED. IR SENSOR: IR sensor for receiving the IR commands from IR remote PUSH BUTTON [LEFT]: Down Button [MID]: Up Botton...
- Page 6 CONNECTION DIAGRAM...
- Page 7 OSD MENU Out Res. Output Mode YCbCr422 Disable, White, Cross, 1.Output Setup Hatch, Color, Gray, Default Pattern Windows, H-Ramp, W-HRamp, W-VRamp, Diagonal Contrast 0~255 of Contrast Level Brightness 0~255 of Brightness Level Saturation 0~255 of Saturation Level 0~255 of Hue Level 2.Image B/W Extension Off, On...
- Page 8 OPERATION APPROACH Method A: Push-in Button Method B: IR Remote Control Button Function FREEZE Freeze video ASPECT RATIO Aspect ratio change BLANK Blank video EXIT Exit OSD ENTER Enter key Up key LEFT Left key RIGHT Right key DOWN Down key MENU Menu on INPUT INFO...
- Page 9 Method C: IR Remote Control through Mini-USB port COM Port Selection COM Port Detection Button Output Setup Button Image Button Adjustment Button System Button Input / Output Resolution Info Refresh Input / Output Resolution Info Button Output Quick Selection Button 1.
- Page 10 3. Output Setup Button 4. Image Button 5. Adjustment Button...
- Page 11 6. System Button 1) In-Sync Info: To view the current input resolution 2) Factory Reset Button 3) Firmware Update Button The steps of firmware update: a) Unplug Mini-USB connector from device b) Set the Dip Switch to ON [] c) Connect the device to PC via USB to mini-USB cable d) Click the FW Update button on software e) Click “Load File”...
- Page 12 The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM0003-S1 features and specifications is subject to change without further notice.
