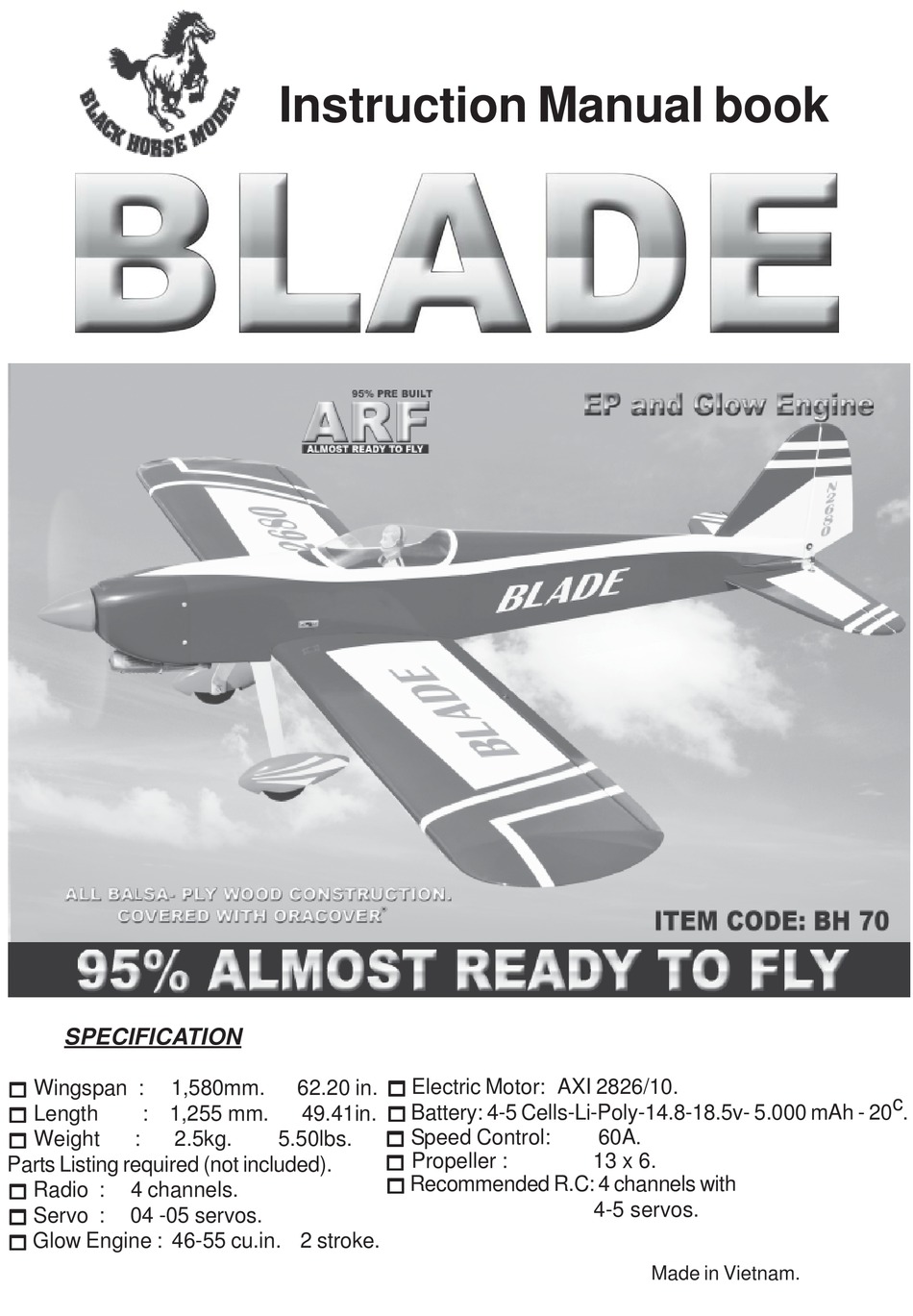

SPECIFICATION
     Wingspan :
1,580mm.
     Length
: 1,255 mm.
     Weight
:
2.5kg.
Parts Listing required (not included).
     Radio :
4 channels.
     Servo :
04 -05 servos.
     Glow Engine : 46-55 cu.in. 2 stroke.
Instruction Manual book
     Electric Motor: AXI 2826/10.
62.20 in.
     Battery: 4-5 Cells-Li-Poly-14.8-18.5v- 5.000 mAh - 20 c .
49.41in.
     Speed Control:
5.50lbs.
     Propeller :
     Recommended R.C: 4 channels with
60A.
13 x 6.
4-5 servos.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLADE BH 70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model BLADE BH 70

Summary of Contents for Black Horse Model BLADE BH 70

  • Page 1 Instruction Manual book SPECIFICATION      Electric Motor: AXI 2826/10.      Wingspan : 1,580mm. 62.20 in.      Battery: 4-5 Cells-Li-Poly-14.8-18.5v- 5.000 mAh - 20 c .      Length : 1,255 mm.
  • Page 2 BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your BLADE. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. SAFETY PRECAUTION. + This is not a toy + Be sure that no other flyers are using your radio frequency. + Do not smoke near fuel + Store fuel in a cool, dry place, away from children and pets. + Wear safety glasses.

  • Page 4: Installing The Aileron Servos

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. 1. Aluminium landing gear. Assemble then apply drops of thin 2.Wheel pants 6. Wheels. C/A to center of hinge,on both sides. 7. Spinner. 3. Fuel Tank. 8. Plastic - enginemount. 4. Tail gear 5.Electric motor ply of wood (5a,5b).
  • Page 5 BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. servo tray.  3. Drill 1,5mm pilot holes through the block of wood for each of the four mounting screws provided with the servo. Install servo into ai- leron servo tray as same as picture below. Drill a hole 1.5mm diameter.

  • Page 6: Installing The Aileron Linkages

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. INSTALLING THE AILERON CONTROL HORN. Install aileron control horn as same as picture below. Control horn of Aileron 2 x16mm.  1. Using a ruler & pen to draw a straight line as below picture. Secure Mark line.
  • Page 7 BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. Cut.  4. Locate one nylon servo arm, and using wire cutters,remove all but one of the arms. Using a 2mm drill bit, enlarge the third hole out from the center of the arm to accommo- date the aileron pushrod wire.

  • Page 8: Installing The Engine Mount

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. Secure. Epoxy glue Bottom side Repeat the procedure for the other wing half. INSTALLING THE ENGINE MOUNT. THERE ARE TWO OPTIONS: 1. ELECTRIC MOTOR 2. ENGINE MOUNT. OPTION 1: ELECTRIC MOTOR. Secure 3 x 15mm 3x 15mm C/A glue...

  • Page 9: Option 2: Engine Mount

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. OPTION 2: ENGINE MOUNT. 4 x 25mm Mark point Drill a hole 2.5mm 3x20mm Secure. INSTALLING THE ENGINE. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z”...

  • Page 10: Installing The Stopper Assembly

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. Pushrod wire When the stopper assembly is installed Right side. in the tank, the top of the vent tube should rest just below the top surface of the tank. It should not touch the top of the tank. ...
  • Page 11 BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A.  6. When satisfied with the alignment of the stopper assembly tighten the 3mm x 20mm machine screw until the rubber stopper ex- pands and seals the tank opening. Do not over Fuel tank tighten the assembly as this could cause the tank to split.

  • Page 12: Installing The Spinner

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. Right side Secure Trim and cut after Right side Bottom side Machine screw.  4. Install the muffler and muffler extension onto the engine and make the cutout in the cowl for muffler clearance. Connect the fuel and pressure lines to the carburetor, muffler and fuel filler valve.

  • Page 13: Installing The Throttle Servo

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. Secure wire Throttle Secure INSTALLING THE THROTTLE SERVO. 1. Install one adjustable metal connector  through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.

  • Page 14: Elevator Servo Installation

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. ELEVATOR SERVO INSTALLATION. 1. Install the rubber grommets and brass  Temporary pin to collets into the elevator servo. Test fit the servo keep hinge centered. into the servo tray.  2. Mount the servo to the tray using the ...
  • Page 15 BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. 4. Remove the stabilizer. Using the lines  you just drew as a guide, carefully remove the covering from between them using a modeling knife. When cutting through the cover- ing to remove it, cut with only enough pres- sure to only cut through the covering it’s self.

  • Page 16: Elevator Control Horn Installation

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. Epoxy glue  6. After the epoxy has fully cured, remove the masking tape or T-pins used to hold the stabilizer in place and carefully inspect the glue joints. Use more epoxy to fill in any gaps that were not filled previously and clean up the excess using a paper towel and rubbing alcohol.

  • Page 17: Rudder Servo Installation

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. RUDDER SERVO INSTALLATION. Bend Rudder servo install as same as method of elevator servo. See picture below: Rudder servo Rudder servo VERTICAL INSTALLATION. See picture below: Control clasp.  1. Using a modeling knife cut away the ...
  • Page 18 BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A.  5. Slide the vertical stabilizer back in place. Using a triangle, check to ensure that Vertical the vertical stabilizer is aligned 90º to the hori- Stabilizer. Horizontal 90º zontal stabilizer. Stabilizer. Epoxy glue ...

  • Page 19: Mounting The Tail Wheel Bracket

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. MOUNTING THE TAIL WHEEL Secure BRACKET. 3x12mm      1. Set the tail wheel assembly in place on the plywood plate. The pivot point of the tail wheel wire should be even with the rud- der hinge line and the tail wheel bracket should be centered on the plywood plate.

  • Page 20: Rudder Pushrod Installation

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. Assemble then apply drops of thin C/A to center of hinge,on both sides. Mark point  Drill 1.5mm diameter a hole of the mounting rudder control horn on to the rudder. Top side Drill a hole 1.5mm RUDDER CONTROL HORN INSTALLATION.

  • Page 21: Installing The Switch

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. Elevator pushrod Rudder control horn Rudder pushrod INSTALLING THE SWITCH. Bend and       1) Cut out the switch hole using a modeling cut after knife. Use a 2mm drill bit and drill out the two mounting holes through the fuselage side.
  • Page 22 BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A.       3. Position the battery pack and receiver behind the fuel tank. Use two tie wraps to hold the battery and receiver securely in place as pictures below Do not permanently secure the receiver and battery until after balancing the model.

  • Page 23: Wing Attachment

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. Secure Right side. Bottom side. Secure.  3) A drop of C/A glue on the wheel collar screws will help keep them from coming lose during operation.  3.Insert two wing panels as pictures be- low.

  • Page 24: Installing Cockpit Fuselage

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. INSTALLING COCKPIT FUSELAGE . See picture below: See picture wing attach to fuselage. Installing the fuselage hatch as same as pic- ture below. C/A glue E p o x y glue Top side...

  • Page 25: Control Throws

    BLADE - INSTRUCTION MANUAL ITEM CODE: BH70-A. BALANCING. CONTROL THROWS.       1) It is critical that your airplane be bal-       1. We highly recommend setting up a plane anced correctly. Improper balance will cause using the control throws listed.
