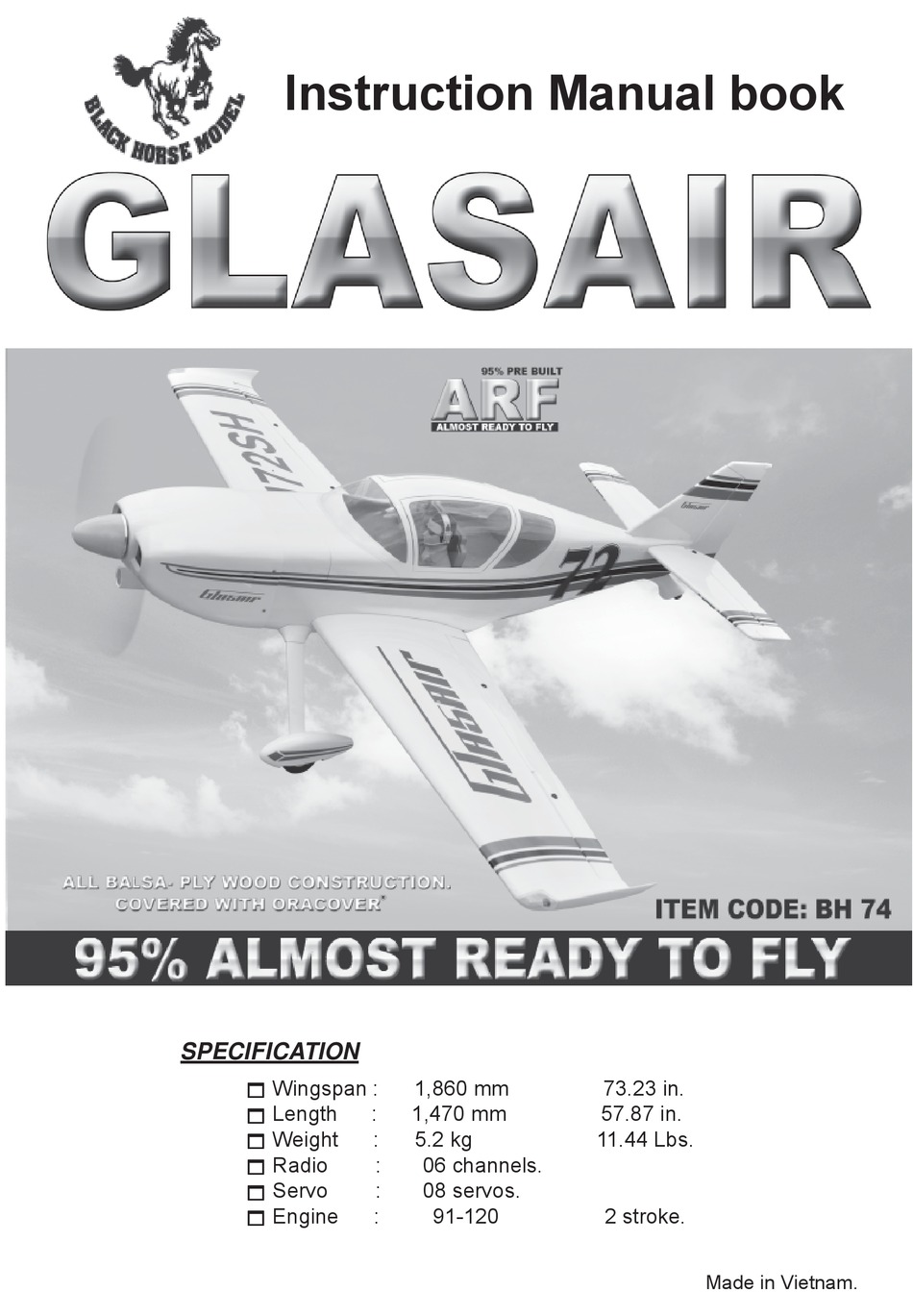

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
1,860 mm
:
1,470 mm
:
5.2 kg
:
06 channels.
:
08 servos.
:
91-120
73.23 in.
57.87 in.
11.44 Lbs.
2 stroke.
Made in Vietnam.
