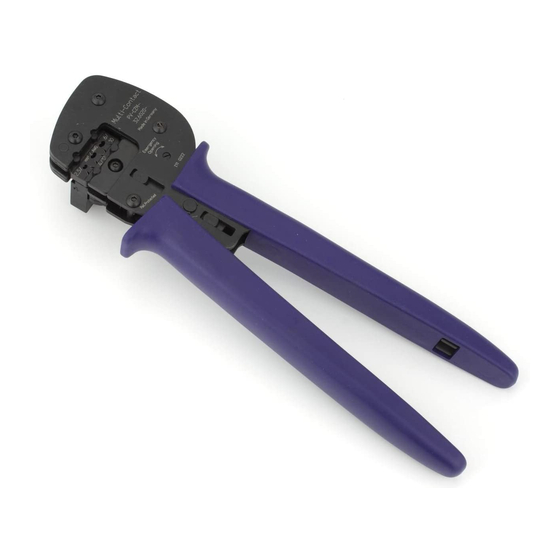

Crimping pliers

Advertisement

Quick Links

MA251 (中 -英)
MA251 (de_en)
操作指导
Bedienungsanleitung
压接钳 PV-CZM
目录
安全须知2
工具说明 MC4 �����������������������������������������������������������������������������3
工具说明 MC4-EVO 2 �������������������������������������������������������������������6
更换压接模
�������������������������������������������������������������������������������8
压接 ������������������������������������������������������������������������������������������10
MA251 (cn_en)
MA251 (de_en)
Operating instructions
Operating instructions
Crimping pliers PV-CZM
Content
Safety Instructions �����������������������������������������������������������������������2
Explanation for MC4 ��������������������������������������������������������������������3
Explanation for MC4-Evo 2 ����������������������������������������������������������6
Exchanging the crimping die ��������������������������������������������������������8
Crimping ������������������������������������������������������������������������������������10
1 / 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the PV-CZM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Staubli PV-CZM

  • Page 1: Table Of Contents

    MA251 (中 -英) MA251 (de_en) MA251 (cn_en) MA251 (de_en) 操作指导 Bedienungsanleitung Operating instructions Operating instructions 压接钳 PV-CZM Crimping pliers PV-CZM 目录 Content 安全须知2 Safety Instructions �����������������������������������������������������������������������2 工具说明 MC4 �����������������������������������������������������������������������������3 Explanation for MC4 ��������������������������������������������������������������������3 工具说明 MC4-EVO 2 �������������������������������������������������������������������6 Explanation for MC4-Evo 2 ����������������������������������������������������������6 更换压接模...
  • Page 2: Safety Instructions

    安全须知 Safety instructions 本装配说明和装配步骤说明是 TÜV Rheinland 和 UL 认证的重要 These assembly instructions and the assembly steps and in- 组成部分和先决条件。 structions described are an integral part of and prerequisite for certification by TÜV Rheinland and UL� 如您未遵守上述警告, 则 Stäubli Electrical Connectors (Stäubli) Stäubli Electrical Connectors (Stäubli) does not accept any liabil- 不承担任何责任。...
  • Page 3: 工具说明 Mc4

    工具说明 MC4 Explanation for MC4 (图. 1) (ill. 1) 压接钳包括定位块和内置压接模 Crimping pliers incl� locator and built-in crimping die 压接钳 压接模 定位块 Locator Crimping pliers Crimping dies • • • • • • 14 AWG • • • • • • 4 mm •...
  • Page 4 单独部件 Individual parts 电缆截面积 适用零件 Pos. Cable cross section suitable for (图. 2 + 3 + 4 + 5 + 6) (ill. 2 + 3 + 4 + 5 + 6) 可更换的压接模 Interchangeable crimping dies PV-KST4/2.5-UR PV-KBT4/2.5-UR PV-KST4/2.5-UR (ill. 2) (图.
  • Page 5 (ill. 9) (ill. 9) 定位块 PV-LOC-B Locator PV-LOC-B 订货号 326055 Order No�: 32�6055 注意事项: Note: 使用 PV-CZM-22100 压接钳时, 请搭 When using the crimping pliers 配 PV-LOC-B 定位块 PV-CZM-22100, use the locator PV-LOC-B� (ill. 10) (ill. 10) 定位块 PV-LOC-D Locator PV-LOC-D 订货号326074...
  • Page 6: 工具说明 Mc4-Evo 2

    工具说明 MC4-Evo 2 Explanation for MC4-Evo 2 (ill. 11) (ill. 1) 压接钳包括定位块和内置压接模 Crimping pliers incl� locator and built-in crimping die 压接钳 压接模 定位块 Locator Crimping pliers Crimping dies • • • • • • PV-KST-EVO 2/2.5…-UR PV-KBT-EVO 2/2.5…-UR 14 AWG •...
  • Page 7 单独部件 电缆截面积 适用零件 Individual parts Pos. Cable cross section suitable for (ill. 12 + 13 + 14 (ill. 12 + 13 + 14) 可更换的压接模 Interchangeable crimping dies PV-KST4-EVO 2/2,5...-UR PV-KBT4-EVO 2/2,5...-UR (ill. 12) (ill. 12) PV-KST4-EVO 2/2,5...-UR 型号 订货号 PV-KBT4-EVO 2/2,5...-UR 压接范围...
  • Page 8: Exchanging The Crimping Die

    更换压接模 Exchanging the crimping die 压接模拆除 Removing the crimping die (ill. 16) (ill. 16) 闭合压接钳 Close the crimping pliers� (ill. 17) (ill. 17) 将两个固定螺栓 (较长的 S 和较短的 S1 Remove completely both mounting ) 完全拆下。 张开压接钳 (把钳子手柄按 screws: the long S and the short S1� 压到底后可松开)...
  • Page 9 压接模安装 Fitting the crimping die (ill. 20) (ill. 20) 张开压接钳 (把钳子手柄按压到底后 Open the crimping pliers (press com- 可松开) 。 ■ ■ pletely together and release)� 插入两个压接模。 Insert both crimping dies� ■ ■ 标记必须与压接钳上的标记位于同 The markings must be on the same 一侧。...
  • Page 10: Crimping

    压接 Crimping (ill. 24) (ill. 24) 打开并握住夹钳 (K)。 Open and hold clamp (K)� ■ ■ 将插针置于适当的截面积范围内。 Place the contact in the appropriate ■ ■ 金属针U型口朝上(C)。 cross-section range� ■ 松开夹钳 (K)。 Turn the crimping flaps (C) upwards� ■ ■ 插针完成固定。 Release clamp (K)� ■...
  • Page 11 (ill. 27) (ill. 27) 根据 IEC 60352-2:2006 + A1:2013 编写标准, 目视检查压接。 Visually check the crimp according to the criteria written in IEC 60352-2:2006 + A1:2013 请确认: Confirm that: 所有铜丝均插入压接套 All of the strands have been captured in the crimp sleeve ■...
  • Page 12 - Material flow outwards 压接侧翼未完全闭合 - Open crimp wings 未包裹所有铜丝 - Not included strands 制造商/Producer: Stäubli Electrical Connectors AG Stockbrunnenrain 8 4123 Allschwil/Switzerland Tel. +41 61 306 55 55 +41 61 306 55 56 mail ec.ch@staubli.com www.staubli.com/electrical 12 / 12...
