In order to carry out a labour time collection you need a collection terminal with integrated transponder
reader.

5.3.1.2 Basic settings of the setup

At first you start the DatafoxStudioIV. Then you have to open the dialogue for setting the communication
parameters via
Kommunikation

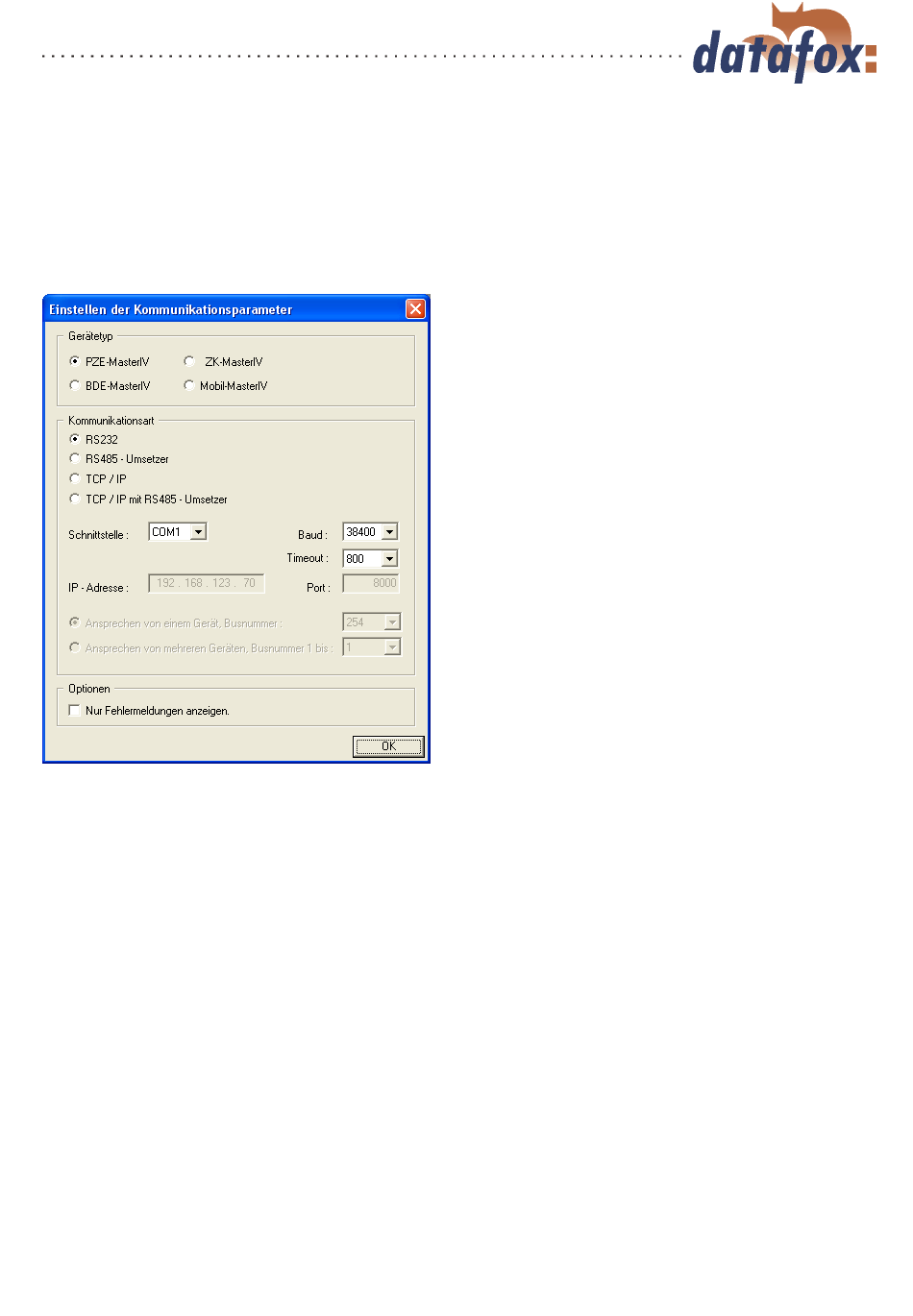

Figure 80: Setting of the device type and the communication parameters
Via
Datei Speichern unter
¢ ¡
In the following example you use the name PZE-Basic-Unique.aes.
You can also create a new setup file via
of device type and communication parameters is important.
Version: 04.01.07.00
.
Einstellungen
¢ ¡ ¡
Set PZE-MasterIV as device type.
In this example you select the communication
type RS232. Select the interface, as it is allocated
on you server (standard COM1). Baud rate and
timeout value can remain on the default values in
this case. But you should check the concurrence
of the settings via the system menu-BIOS of the
PZE-MasterIV under communication. If they are
not concurrent, you have to adapt the parameters
via terminal or DatafoxStudioIV. Confirm all
changes via OK.
you can save this setup (standard AESetup1) with an own name.
¡
Datei N eu
¥ ¡
Page 89
and save it with an own name. The setting
¡
