3.6.1 Communication via RS232
3.6.1.1 Requirement
For a communication with a PZE-MasterIV Basic over an RS-232 connection, the device has to be set for
this communication in the system menu-BIOS (see chapter 3.5.1). Furthermore, baud rate and timeout
of the RS232-interface of the terminal and the PC must be coordinated. Permitted baud rates are 9600,
19200 and 38400. The timeouts have to be between
communication the timeout is set on 100 by default.
3.6.1.2 Connection

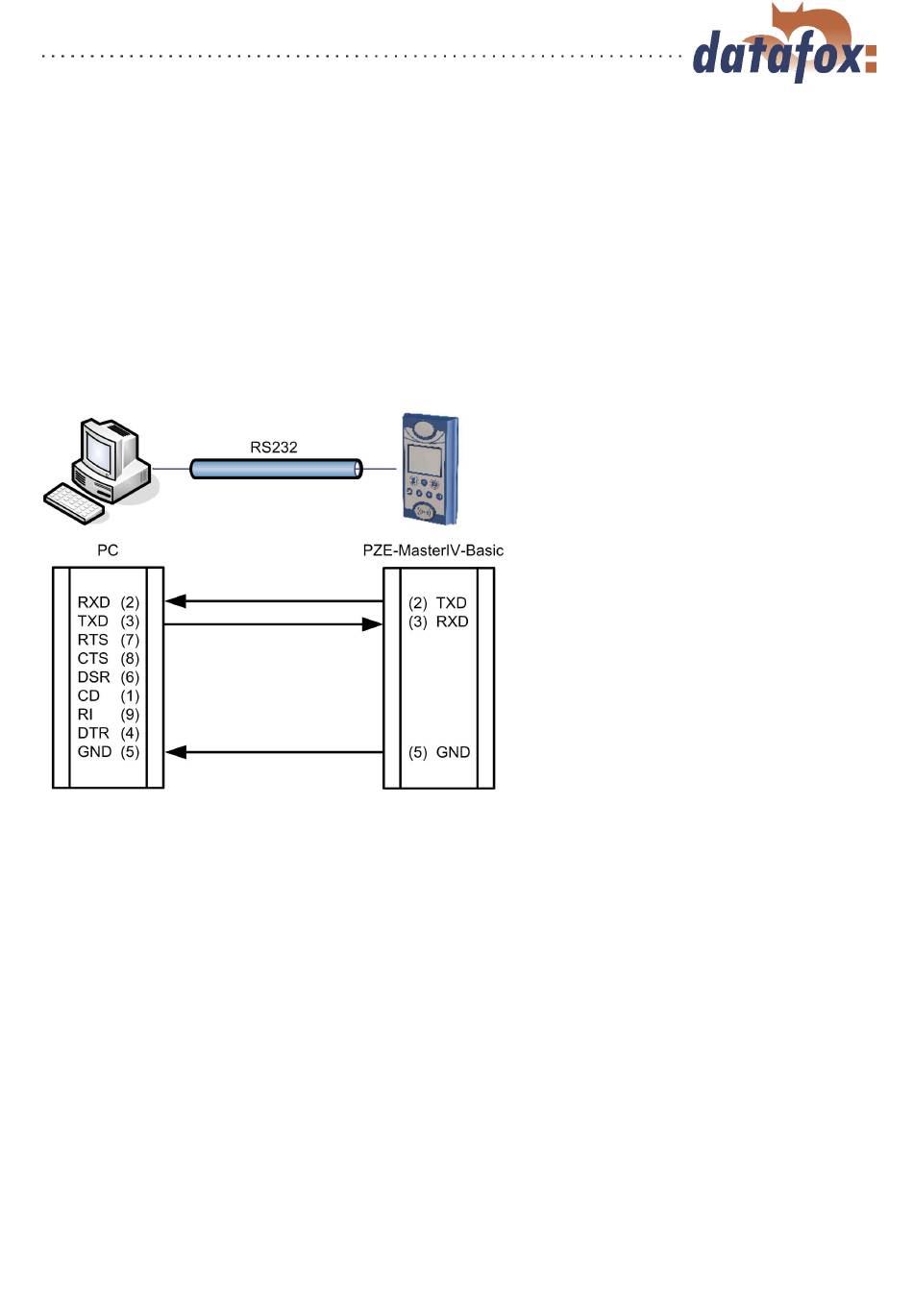

Figure 9: Connection of the PZE-MasterIV Basic with the PC about RS232
Version: 04.01.07.00
100 and
2000. When you select RS232 for
A single device can be connected to the
PC directly via the RS232-interface (po-
sition 2 in figure 6). The cable must not
be longer than 15 m. Use a RS232 cable
with a 1:1 configuration, corresponding
to Datafox item no. 20010, as connect-
ing cable.
