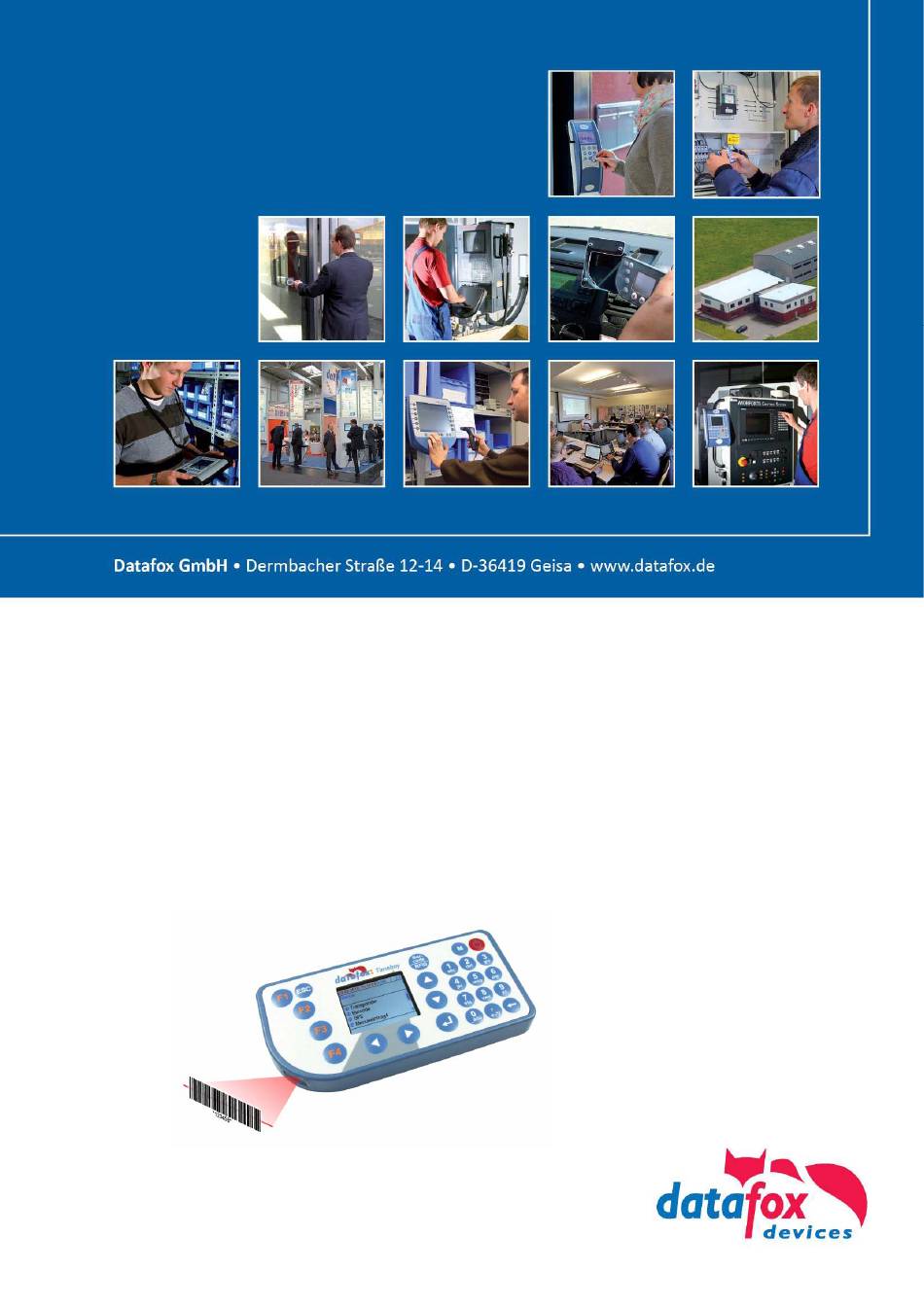

  • Page 1 Manual TimeboyIV Flexible data collection with method...
  • Page 2 Datafox GmbH. The assertion of all rights in this respect is reserved to Datafox GmbH, especially in case of the grant of a patent. The handover of this documentation does not establish a claim to the license or the use of the soft- and hardware.
  • Page 3 Datafox MasterIV, SW version xxx.pdf list as shown. The file is located on the Datafox DVD and for download on the homepage. Please also note the instructions in each chapter in the manual. The updates are available on our website under www.datafox.de download.

  • Page 4: Table Of Contents

    3.5. Further Notices ......................6 3.6. Disposal.........................6 System Requirements / Hardware 4.1. System Structure ......................7 4.2. Requirements for Operating Datafox Devices ............7 4.3. Kompatibilität Compatibility ..................8 4.3.1. Firmware File Archive (*.dfz) ..................8 4.3.2. Datafox Devices and Device Firmware................8 4.3.3. Device Firmware and Device Setup ................8 4.3.4.
  • Page 5 Mobile radio (GSM and. GPRS/GSM) .................33 5.11.3.1. Necessary Settings for Communication via Cellular Network........34 5.11.3.2. Communication state ....................35 5.11.4. Wireless for TimeboyIV....................36 5.11.4.1. Selecting the location in the bios-menu ................37 5.11.4.2. Overview of encryptions ....................37 5.11.4.3. Setting the wireless parameters ...................38 5.11.4.4.

  • Page 6: For Your Safety

    For Your Safety Safety Information for Datafox Products The device must only be operated according to the instructions given in the manual. Do no insert any foreign objects into the openings and ports. The device must not be opened. All maintenance work must only be performed by authorized specialists.

  • Page 7: Introduction

    Introduction Real mobile data collection, especially for time and production data collection, requires a pocket- size device with high functionalities. These demands are fulfilled by Datafox Timeboy. Due to its small size and slim design, it fits into any pocket.

  • Page 8: Typography Of The Documentation

    In order to define the behavior of the device, a setup must be created. For this purpose, the Data- foxStudioIV has been developed. With some practice it will be possible to create a complete compilation for the TimeboyIV within half an hour. If you need functions that are not available, please contact us.
  • Page 9 Note: Due to DatafoxStudioIV, Datafox devices offer many functions and combinations of  functions not all of which can be tested in the case of updates. This applies espe- cially to setups defined by you as customer.

  • Page 10: Intended Use And Environmental Protection Regulations And Notices

    See respective type label of the device 3.4. Maintenance / Repair Except for the battery replacement in mobile devices , Datafox devices are maintenance-free and must only be opened by authorized professionals. In case of defects, please contact your dealer or the Datafox service hotline.

  • Page 11: Further Notices

    The correct disposal of electrical and electronic equipment protects human life and the environment. For more information regarding the disposal of electrical and electronic equipment, please contact your local authorities or waste disposal companies. Manual TimeboyIV page 6 date: 11.07.2013 Version 04.02.04...

  • Page 12: System Requirements / Hardware System Structure

    4.2. Requirements for Operating Datafox Devices In order to operate the Datafox device, you need a 230 V power connection for the Datafox power supply. Depending on the main communication set, you need a corresponding transfer medium or connection cable.

  • Page 13: Kompatibilität Compatibility

    Device files (*.hex) of the MasterIV devices are delivered in a common firmware file archive. It has the file extension DFZ (stands for Datafox Zip). Now simply the firmware file archives (*.dfz) are in- dicated instead of the device files (*.hex). This applies to the DatafoxStudioIV and the DLL. The in- dication of device files (*.hex) is still possible.

  • Page 14: Device Firmware And Communications Dll

    A newer version of DatafoxStudioIV does not work with an older DLL. 4.3.6. DatafoxStudioIV and Device Setup With the DatafoxStudioIV, you create a device setup (application program) for the Datafox device. That means that in the setup only those functions were defined which were available in the Data- foxStudioIV version at the time of the setup creation.

  • Page 15: Update / Downgrade

    When performing a firmware downgrade the firmware has to be transmitted to the device twice. This has technical reasons. Errors shown on the display of the device after the first transfer can be ignored. Manual TimeboyIV page 10 date: 11.07.2013 Version 04.02.04...

  • Page 16: Device

    Keep in mind the message - FlashService - in the display of the device. It means that the live time of the flash memory according to the manufacturer instruction will be reached soon. Then the device has to be sent to Datafox for service.

  • Page 17: The Display

    = Key barrier activates.  = Value input above key field.  = Value input about barcode reader or key field  = Value input about transponder.  = Value input about barcode. Manual TimeboyIV page 12 date: 11.07.2013 Version 04.02.04...

  • Page 18: Handling

    If the bar code cannot be read, the value can be entered via the number/letter key block provided that the keyboard entry has not been deactivated for the field. Manual TimeboyIV page 13 date: 11.07.2013 Version 04.02.04...

  • Page 19: Operation

    5.5. Operation 5.5.1. Keyboard The keyboard of the TimeboyIV is designed as follows: Power switch Numeric pad or alphanumeric keys Backspace key for deleting an entry ENTER key for confirming an entry or action Arrow keys for navigating in a line or list F1 –...

  • Page 20: Entering Texts Via The Keyboard

    (descending tone sequence), the start-up tone sounds backwards. If the switch - button disabled in Setup, you can use the device via the switch off inter-Bios menu. To do this, "Gerät parken" "User Settings" and turn off the device. Manual TimeboyIV page 15 date: 11.07.2013 Version 04.02.04...

  • Page 21: Menu (Bios)

    – can also be made via the DatafoxStudioIV. You access the menu (BIOS) via key combinations:  ▲ + ▼, or  ESC + ENTER The options displayed depend on the hardware equipment of the TimeboyIV. Structure of the menu (BIOS)  Firmware info Menu Bios ...
  • Page 22 (BIOS), a query appears. The password can be entered via the number keys of the Timeboy. By activating the check box, an extra password can be set for the menu entry "user settings". Manual TimeboyIV page 17 date: 11.07.2013 Version 04.02.04...
  • Page 23 ◄ ►. Confirm your settings with ENTER. Under "Date/time" the date and time can be set. Use the number keys and the keys ▲, ▼, ◄, ► for this purpose. Manual TimeboyIV page 18 date: 11.07.2013 Version 04.02.04...

  • Page 24: Battery

    Remove the batteries and charge them in a charger with refresh function. Such devices normally  show whether a battery still has enough capacity. Measure battery voltage with a multimeter. The voltage must be at least 1.25 V after charging. Manual TimeboyIV page 19 date: 11.07.2013 Version 04.02.04...

  • Page 25: Charge The Battery

    5.5.7.3. Charge the battery The battery charge is controlled by the TimeboyIV itself. Depending on how to load the TimeboyIV charging duration varies. Charge with the Dockingstation: If the TomeboIV to charge, see you on the green LED. Charge Symbol The green LED should light up.

  • Page 26: Battery Operation And Battery Drain

    Exhaustive discharging damages the batteries and can lead to their destruction.  No warranty is given for batteries as they are wearing parts and their lifetime de- pends heavily on the user behavior. Manual TimeboyIV page 21 date: 11.07.2013 Version 04.02.04...
  • Page 27 The batteries can be a performance of approximately 70% is removed. After that, is the voltage for the operation of Timeboys not enough. This results in a performance of 700mAh. Example 1 TimeboyIV with Barcode / RFID-Reader: The input needs around 45 sec.; equal to:...
  • Page 28 Example 2 TimeboyIV with Barcode / RFID and Mobile radio, GSM / GPRS- Modul: The input needs around 30 sec.; equal to: - Display hell = 45 mA - Mobilfunk = 92 mA - Barcode = 86 mA - CPU...

  • Page 29: Buzzer

    Condition for that is, you have enabled the buzzer in the setup Basic Settings. The buzzer loudness can to modulate in the device BIOS menu. More details are given in the caption “Menu(Bios)”. Manual TimeboyIV page 24 date: 11.07.2013 Version 04.02.04...

  • Page 30: Bar Code Laser Scanner

    In this case, please restore the basic settings. You can find this sheet with bar codes on the DVD under < Datafox DVD\Timeboy II und III\Datafox_TimeboyIII\Handbuch, Doku>. Please observe the notes in the chapter "For Your Safety" when using the laser scanner.

  • Page 31: Digital Inputs

    It is also important if the Timeboy often has no reception and is used outside only for a short time. For a description of possible settings see the manual "Datafox Studio". Manual TimeboyIV page 26 date: 11.07.2013 Version 04.02.04...

  • Page 32: Types Of Communication

    Thus, it can be connected only directly to the RS232 of a PC. RS232 bus Sub-D 9-pin 1:1 socket-socket Power supply 9 volts 300 mA. Datafox Article-No.: 20002. Caution: Do not use a power supply with more than 12 volts. Caution: For use, the power supply has to be connected.

  • Page 33: Multiple Docking Station Via Rs232 To The Pc

    5.11.2.1. Mehrfachdockingstation per RS232 an PC RS232 bus Sub-D 9-pin 1:1 socket-socket Power supply 9 volts 300 mA. Datafox Article-No.: 20002. Caution: Do not use a power supply with more than 12 volts. Pin assignment of Sub-D plug 9-pin Designation...

  • Page 34: Multiple Docking Station Via Rs232 To The Master Iv

    Cable plug 9-pin Socket Converter RS232/RS485. Datafox Article-No. 1002. Assignment of the Datafox Data Line (Datafox Article No. 25010) Color coding and pair assignment Signal Signal Connection to Sub-D of the...

  • Page 35: Multiple Docking Station To Com Server Via Rs232 (Tcp/Ip)

    Please note the description of the COM server, especially with regard to the setting of the IP address and the conversion between RS232 and RS485. Connection: - to PC network Connection cable COM server to docking station Sub-D 25-pin - 9-pin, plug-socket Datafox Article No.: 25034 Plug Socket 25-pin 9-pin Pin 2: RS232 TXin...

  • Page 36: Set-Up Of The Com Server Lantronix Uds 11

    You are asked for a username and pass- word. Because the COM Server is in the state as delivered, no username or pass- word is set. Thus, make no entries and only confirm with “OK”. Manual TimeboyIV page 31 date: 11.07.2013 Version 04.02.04...
  • Page 37 2. The "Local Port" must be set to 8000 via the setting option "Connection". 3. Save your settings with "OK" and then "Apply Settings", otherwise they will not be taken over. Restart the COM Server and check the connection. Manual TimeboyIV page 32 date: 11.07.2013 Version 04.02.04...

  • Page 38: Mobile Radio (Gsm And. Gprs/Gsm)

    5.11.3. Mobile radio (GSM and. GPRS/GSM) The TimeboyIV can be equipped with a mobile radio modem. With it the communication on the mo- bile radio network is possible. The antenna is integrated in TimeboyIV. The SIM map is pocketed about the accumulator field. Take moreover the accumulators from the time bell-boy and introduce the SIM map as illustrated in the slit, until she engages.

  • Page 39: Necessary Settings For Communication Via Cellular Network

    For more information regarding the encryption of data for sending via http see the DatafoxStudioIV manual, chapter "Configuration > Encryption of Data Fields for Sending via HTTP". Manual TimeboyIV page 34 date: 11.07.2013 Version 04.02.04...

  • Page 40: Communication State

    Device is the encryption active, but not on the server battery is down, to disable Modem. impossible connect to the provider or bzw. Roaming impossible close connection Turn modem off Manual TimeboyIV page 35 date: 11.07.2013 Version 04.02.04...

  • Page 41: Wireless For Timeboyiv

    5.11.4. Wireless for TimeboyIV The TimeboyIV can be equipped with a WLAN module. For the setting WLAN parameter, please use the DatafoxStudioIV. Click on “Configuratio” -> “WLAN configuration for TimeboyIV (*.df0).” The WLAN settings are stored in a file with the extension "*. df0".

  • Page 42: Selecting The Location In The Bios-Menu

    WLAN - „Infrastructure“ Secutity: Secutity: Secutity: None (0) WPA2/802.11i WEP(1) ohne Encryption Encryption NO Key AES / CCMP WEP64 „AES 128“ WEP128 AES / CCMP + Authentication Authentication Open/None (0) Shared/PSK Shared/PSK (1) Manual TimeboyIV page 37 date: 11.07.2013 Version 04.02.04...

  • Page 43: Setting The Wireless Parameters

    AP when the unit is operating in the border area. Select the interval be- tween scans for new APs generous (80-120s). At most there is the possibility that AP "Beacon Interval" setting. The higher this is set, the less power required by the TimeboyIV. Recommendation: Beacon interval> 300ms Manual TimeboyIV page 38...

  • Page 44: Recommend Setting For Wlan

    5.11.4.4. Recommend setting for WLAN We recommend the following setting: WPA2 Shared/PSK Datafox have tested th follow AP: Longshine LCS-WA5-45 IEEE802.11g WatchGuard XTM WEB UI Longshine IEEE802.11n TP-Link WR841N v6/v7 00000000 Settings AP Settings TimeboyIV via StudioIV Caution: I is not possible to testing all AP you can by.

  • Page 45: Ad-Hoc Mode

    ► Choose in the Bios Menu ->communication -> WLANRS9110 ->load default settings. ► Switch the communication to WLAN. ► Scan for Wireless Networks (The device name is Datafox-MasterIV). ► Select this network an press connection. ► The Key is „Datafox-Geisa“.

  • Page 46: Kommunikation Per Sms

    Kommunikation per SMS 5.11.5.1. SMS versenden Datafox MasterIV Geräte, die mit einem GPRS-Modem ausgestattet sind, sind nun in der Lage, eine SMS zu senden. Voraussetzung dafür ist, dass die Hauptkommunikation auf „GPRS“ eingestellt ist. Dazu wurde in der Parametriersoftware DatafoxStudioIV eine neue Feldfunktion „SMS versenden“...

  • Page 47: Sms Empfangen

    5.11.5.2. SMS empfangen Datafox MasterIV Geräte, die mit einem GPRS-Modem ausgestattet sind, sind nun in der Lage eine SMS zu empfangen. Folgende Funktionen können dadurch realisiert werden: ► Anzeige, einer an das Gerät gesendeten SMS auf dem Display. Wie es bereits durch DFCComSendMessage oder bei der HTTP-Rückantwort möglich ist.
  • Page 48 Überwachungsservice einer technischen Anlage bei Störung oä.. Sollte die Regelung des Füllstandes mal abweichen, kann dies durch eine SMS gemeldet werden. Das Datafox MasterIV soll hier nicht als Regler, sondern nur als Benachrichtigung bei einer Abwei- chung dienen. Bei Bedarf kann auch ein Eingriff erfolgen.

  • Page 49: Fahrzeugdatenlogger Mit Timeboy

    Zur Installation und Einstellung beachten Sie bitte die separate Installations- und Einstellanleitung auf der Datafox DVD: Datei: “Datafox Fahrzeugdatenlogger für Timeboy, Einbau_Einstellanleitung HW-Version x,Vx.x“. Es handelt sich um ein separates Dokument, damit die Autowerkstatt für den Einbau nicht das kom- plette Handbuch benötigt.
  • Page 50 Rest mit 0x00 aufgefüllt. Zusatzfeld zur Übernahme einer GV (ab Firmware V 3.2.2 Fahrzeugdatenlogger ) Zusatzfeld 1 ASCII 20 Zusatzfeld zur Übernahme einer GV (ab Firmware V 3.2.2 Fahrzeugdatenlogger ) Zusatzfeld 2 ASCII 20 Manual TimeboyIV page 45 date: 11.07.2013 Version 04.02.04...
  • Page 51 Eingang 1 Ein Firmwareupdate des Fahrzeugdatenloggers kann nur durch Datafox erfolgen, sollten Anfragen dazu bestehen, setzen Sie sich mit Ihrem Händler oder Datafox in Verbindung. Autofreigabe per Relais Im Fahrzeugdatenlogger ist ein Relais eingebaut, das Sie für die Fahrzeugfreischaltung verwenden können.

  • Page 52: Technical Data Timeboyiv

    Technical data TimeboyIV System clock real-time clock Data Memory Flash 4 MB; 100,000 write cycles Display 220 x 176 pixel; 1.9 inch color TFT with backlight Keys type tactile feedback with full switch way size Ø 10 and 12 mm...

  • Page 53: Index

    TCP/IP Comserver 29, 31 UDS 1100 29, 31 Technical data TimeboyIV 47 Barcode 25 Barcode reader 25 Buzzer 24 W-Lan 36 Device 11 Disposal 6 Energie 5 Fahrzeugdatenlogger mit Timeboy 44 FAQ 47 Firmware 10 For Your Safety 1...
