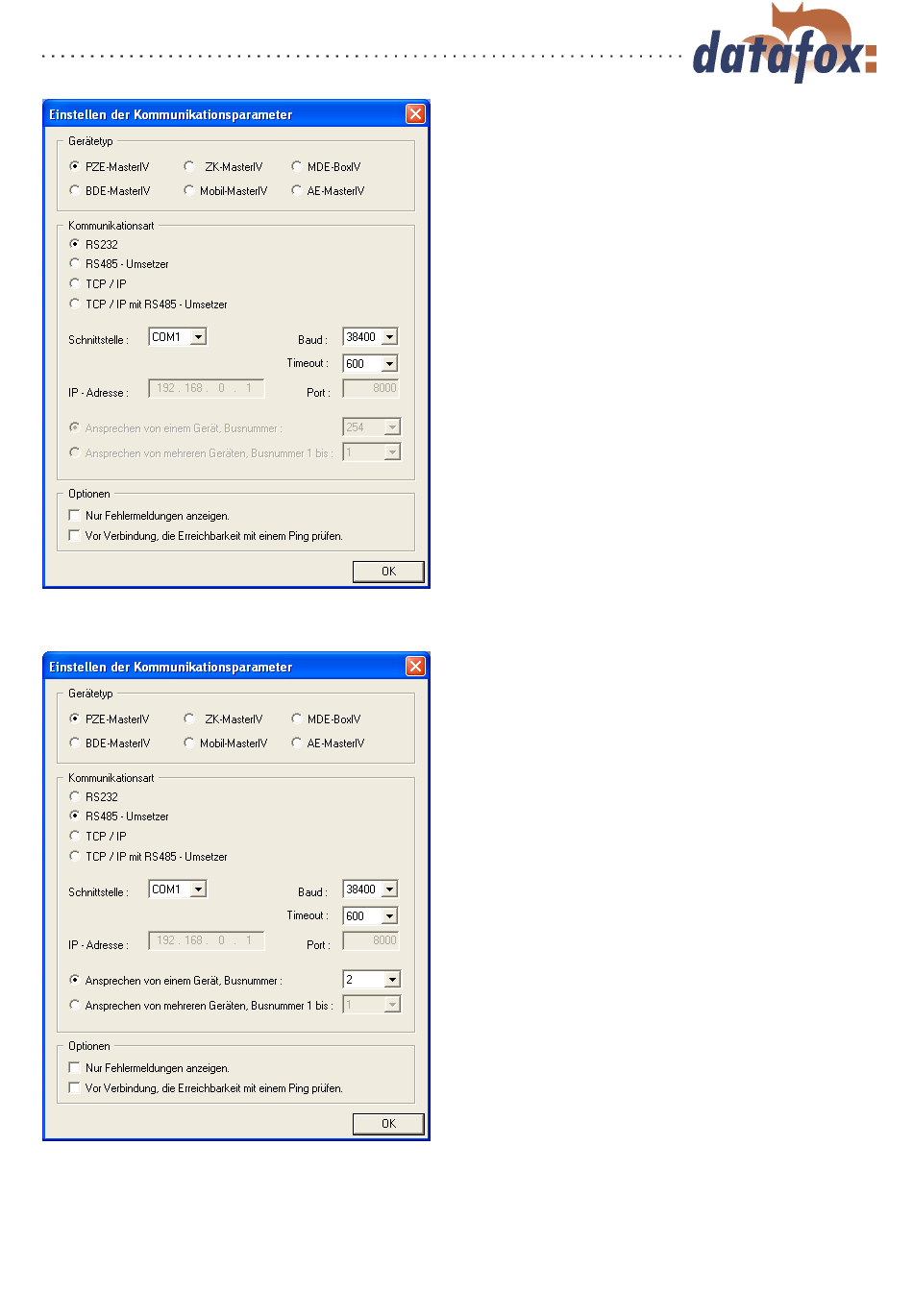

Figure 43: Settings of the RS232 communication
Figure 44: Settings of the RS485 communication via converter
Version: 04.01.07.00
With the type of communication you set via which
channel (transmitting medium) the communica-
tion should take place.
Dependent on the selected communication, the
active parameter have to be set.
In case of RS232 the serial port (COM-Port), the
baud rate (how many bits are transmitted within a
second) and the timeout (time till the connection
termination if no data arrive) have to be set.
For a communication via a RS485 converter,
in addition to the information of the RS232
communication you have to set if one or several
devices should be activated. For a communication
with only one device the bus number of the device
is set. Several devices can only be activated in a
consecutive order of bus numbers, starting with
bus number 1, and by giving the bus number of
the last device.
