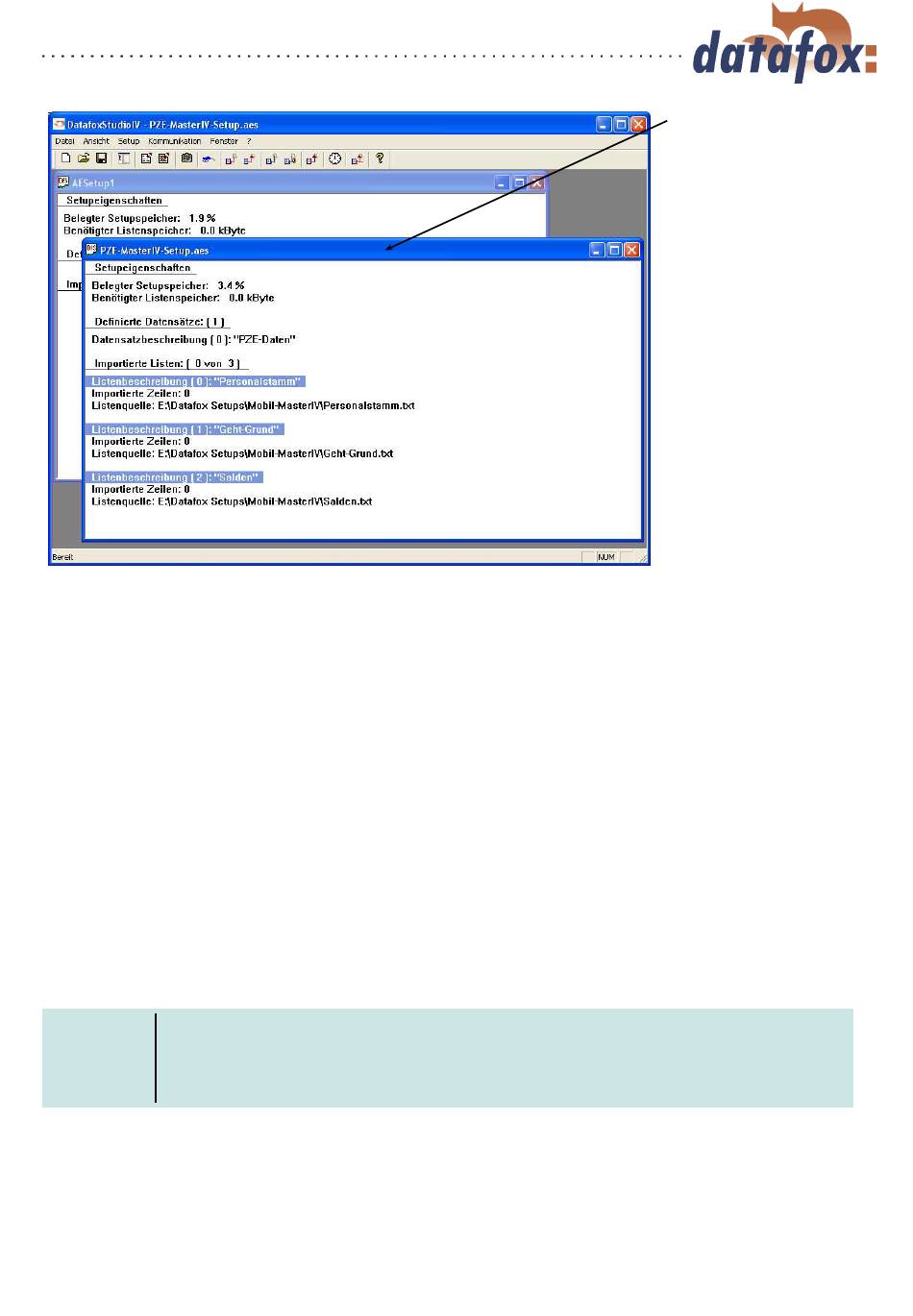

Figure 22: DatafoxStudioIV User interface

4.2 Operation of the DatafoxStudioIV

All functions you need about the setup are available via the menu of the DatafoxStudioIV. The most
important functions can additionally be called up via the toolbar.
When you have opened a setup file as described in chapter 4.3.2, you can open the setup-mask-dialogue
(as shown in figure 23) via the menu
selected setup in order to edit the setup. At first, all inputs you make in the setup-mask-dialogue are only
applied to the dialogue interface. If you close the dialogue via the OK-key, all settings will be applied to
the setup without further queries. If you close the dialogue via the cross, you will be asked if the changes
shall be applied to the setup. Only if you answer this query with JA (yes) the changes are applied to the
setup.
As long as the setup-mask-dialogue is opened you have no access to other functions of the DatafoxStu-
dioIV. Only if the dialogue is closed, you can call up and carry out other functions from the studio for
the setup that is chosen currently.
Note:
£ Please take into consideration that, if several setups have been opened in the main
window of the DatafoxStudioIV, the changes only refer to the currently chosen
setup. This means the setup window which is not covered by another window.
Version: 04.01.07.00
Setup Editieren
¢ ¡ ¡
Page 38
Client-Window
The edition, e.g. writ-
ing setup, etc., always
refers to the current
marked window.
file name of the setup
file is visible in the title
bar.
or via a double click in the window of the
The
