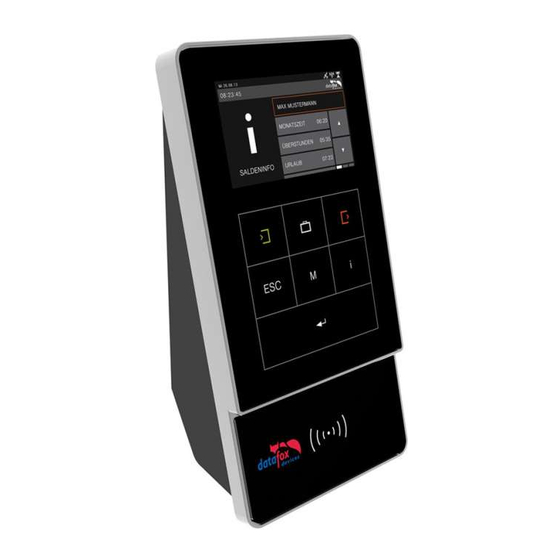

Datafox Evo 4.6 FleKey
Flexible data collection with method

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evo 4.6 FleKey and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Datafox Evo 4.6 FleKey

Summary of Contents for Datafox Evo 4.6 FleKey

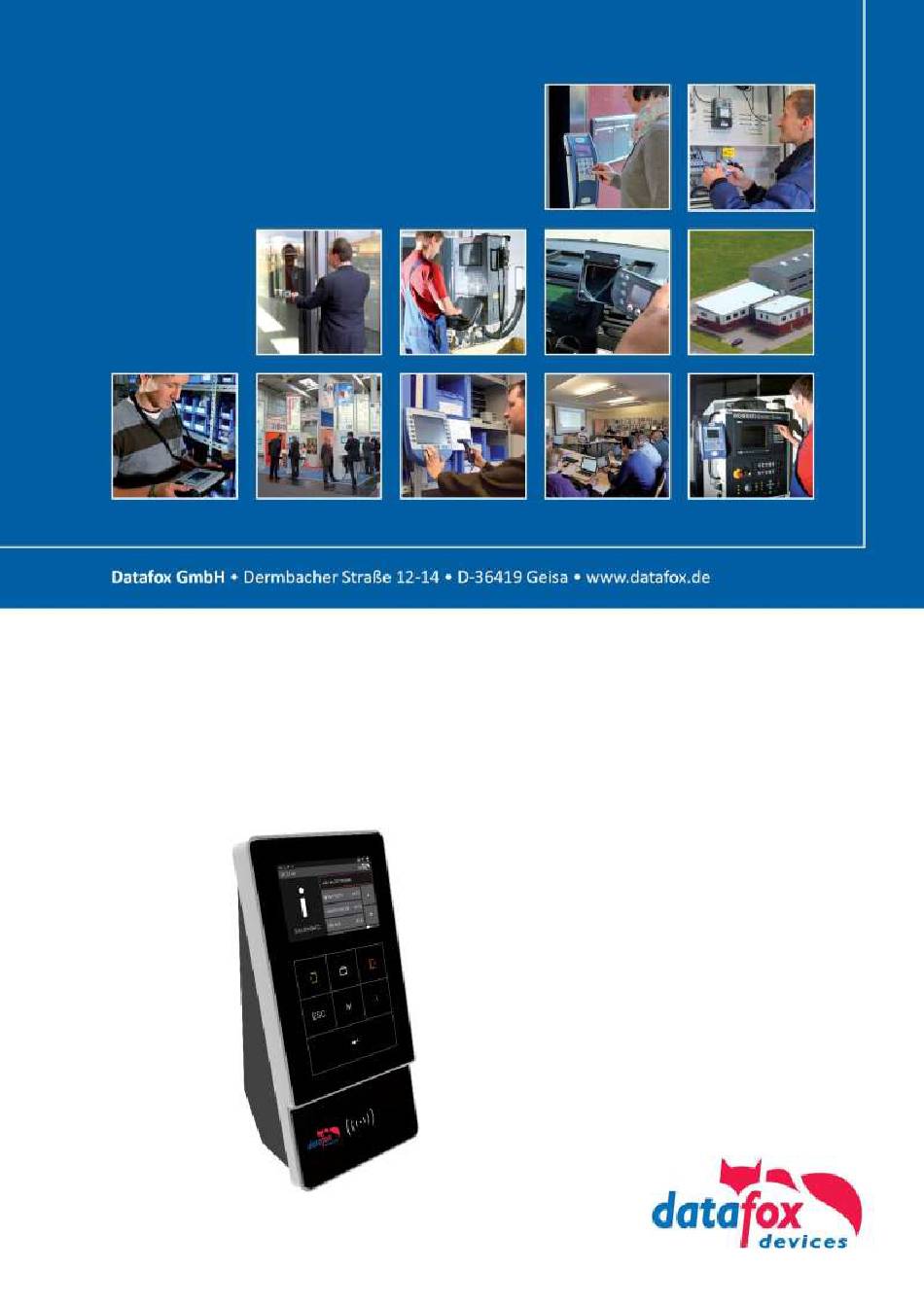

  • Page 1 Manual Datafox Evo 4.6 FleKey Flexible data collection with method...
  • Page 2 Datafox GmbH. The assertion of all rights in this respect is reserved to Datafox GmbH, especially in case of the grant of a patent. The handover of this documentation does not establish a claim to the license or the use of the soft- and hardware.
  • Page 3 Datafox MasterIV, SW version xxx.pdf list as shown. The file is located on the Datafox DVD and for download on the homepage. Please also note the in- structions in each chapter in the manual. The updates are available on our website under www.da- tafox.de download.

  • Page 4: Table Of Contents

    3.9. Disposal ........................9 System Requirements / Hardware 4.1. System Structure ..................... 10 4.2. Requirements for Operating Datafox Devices ............10 4.3. General Hardware Information ................11 4.3.1. Hardware equipment ....................11 4.3.2. Behavior in case of power failure ................11 4.3.3.
  • Page 5 Connection and wiring of the access control ............78 5.8.1. Configuration and structure of the Access control ............78 5.8.2. Description of Tables for Access Control 2 ..............81 5.8.3. Access-control with Intera 2 ..................84 Manual Datafox Evo 4.6 FleKey PageV Date: 14.09.2021 V 04.03.17.XX...
  • Page 6 "Training" menu page ....................143 5.12.4. Menu page - Delete ....................144 5.12.5. Menu page - "Exit ....................144 5.13. Finger scanner Line Sensor .................. 148 5.13.1. Operation Finger Scanner ..................148 Manual Datafox Evo 4.6 FleKey PageVI Date: 14.09.2021 V 04.03.17.XX...
  • Page 7 Status information on the camera ................164 5.14.8. Camera frame rates ....................165 5.15. Signature function (EVO 4.3 only) ................ 166 5.15.1. Configuration using the Datafox Studio IV..............166 5.15.2. Integration into the setup process ................166 5.16. Fever measurement on the wrist ................167 5.16.1.

  • Page 8: For Your Safety

    EN 55024 : 2010 + A1 : 2015 EN 61000 – 6 – 2: 2005 IEC 61000-3-2 : 2014 IEC 61000-3-3 : 2013 IEC EN 60950-1 : 2006 + A11 : 2009 + A1 : 2010 Manual Datafox Evo 4.6 FleKey Page 1 Date: 14.09.2021 V 04.03.17.XX...

  • Page 9: Introduction

    2. Introduction Datafox data terminals have been developed to fulfill the requirements of modern personnel time recording where users have high demands concerning flexible and elegant design. Furthermore, the Datafox Embedded-Concept also covers access control. All relevant data can be recorded with modern technology and be transferred to the analysis software immediately.

  • Page 10: Typography Of The Documentation

    Due to technical development, illustrations, function steps, procedures and technical data may vary slightly. The Datafox device has been developed for the purpose of creating a flexible and easily inte- grated terminal for data recording serving for a great variety of applications. The device is robust and easy to use.
  • Page 11 Note: Due to DatafoxStudioIV, Datafox devices offer many functions and combinations of  functions not all of which can be tested in the case of updates. This applies espe- cially to setups defined by you as customer.

  • Page 12: Intended Use And Environmental Protection

    Extreme environmental influences may damage or destroy the device and should be avoided. This includes fire, extreme sunlight, water, extreme cold and extreme heat. See respective type label of the device. Manual Datafox Evo 4.6 FleKey Page 5 Date: 14.09.2021 V 04.03.17.XX...

  • Page 13: Mounting Outdoors

    In the case of bell systems / mailboxes / barriers, mount- ing plates are usually already available which can be used for this purpose. View recessed Installation in A front plate / Mounting plate Manual Datafox Evo 4.6 FleKey Page 6 Date: 14.09.2021 V 04.03.17.XX...

  • Page 14: Temperature

    Except for the battery replacement in mobile devices, Datafox devices are maintenance-free and must only be opened by authorized professionals. In case of defects, please contact your dealer or the Datafox service hotline. If a definite defect is present, you can also send the device directly to Datafox. https://www.datafox.de/reparaturen.de.html?file=files/Datafox_Devices/PDF/Support/Data- fox%20Reparaturbegleitformular%20V3%2C%20D-GB_2020.09.25.pdf Manual Datafox Evo 4.6 FleKey...

  • Page 15: Cleaning

    Also ensure that technical equipment of your vehicle is not compromised by the device. In order to prevent SIM card misuse, have your SIM card blocked immediately in cases of loss or theft of the device. Manual Datafox Evo 4.6 FleKey Page 8 Date: 14.09.2021 V 04.03.17.XX...

  • Page 16: Disposal

    The correct disposal of electrical and electronic equipment protects human life and the environment. For more information regarding the disposal of electrical and electronic equipment, please contact your local authorities or waste disposal companies. Manual Datafox Evo 4.6 FleKey Page 9 Date: 14.09.2021 V 04.03.17.XX...

  • Page 17: System Requirements / Hardware

    4.2. Requirements for Operating Datafox Devices In order to operate the Datafox device, you need a 230 V power connection for the Datafox power supply. Depending on the main communication set, you need a corresponding transfer medium or connection cable.

  • Page 18: General Hardware Information

    We currently recommend equipping the devices with a POE module if a "UPS" is to be used. Then connect the devices via a POE switch and supply the switch via a standard UPS. Manual Datafox Evo 4.6 FleKey Page 11...

  • Page 19: Compatibility

    Device files (*.hex) of the MasterIV devices are delivered in a common firmware file archive. It has the file extension DFZ (stands for Datafox Zip). Now simply the firmware file archives (*.dfz) are indi- cated instead of the device files (*.hex). This applies to the DatafoxStudioIV and the DLL. The indi- cation of device files (*.hex) is still possible.

  • Page 20: Device Firmware And Device Setup

    With the DatafoxStudioIV, you create a device setup (application program) for the Datafox device. That means that in the setup only those functions were defined which were available in the Datafox- StudioIV version at the time of the setup creation. The DatafoxStudioIV you use for opening a de- vice setup may thus only be newer but never older than the DatafoxStudioIV version you used to create the device setup.

  • Page 21: Update / Downgrade

    When performing a firmware downgrade the firmware has to be transmitted to the device twice. This has technical reasons. Errors shown on the display of the device after the first transfer can be ignored. Manual Datafox Evo 4.6 FleKey Page 14 Date: 14.09.2021 V 04.03.17.XX...

  • Page 22: Device

    Keep in mind the message - FlashService - in the display of the device. It means that the live time of the flash memory according to the manufacturer instruction will be reached soon. Then the device has to be sent to Datafox for service.

  • Page 23: Guideline For Commissioning

    Access-control ► Finishing installation of the device ► Setting for man communication 5.2.3. Troubleshooting during Commissioning ► Please see the FAQ on our website: http://www.datafox.de/faq-de.html. ► Tips: o Connection to the device cannot be set up via TCP/IP ...

  • Page 24: Operation And Display Elements Of The Evo 4.6 Flex-Key

    See chapter "Switching backlight- ing". Touch area. Here is the same Device with other picture in the background and other colors. That’s more flexible than with an EVO 4.3. Manual Datafox Evo 4.6 FleKey Page 17 Date: 14.09.2021 V 04.03.17.XX...

  • Page 25: Operation With Gesture Control For Evo 4.3

    5.3.2. Operation with gesture control for EVO 4.3 The world of smartphones and tablets inspire all users of such devices. This operating convenience has also been introduced at Datafox. Now you can scroll through the display by "Wipe". This functionality is available here: scroll in Bios menu List display / menu display "scrolling"...
  • Page 26 Display in the left part of the window:  = Transponder input (Accept value of transponder)  = Check in (coming) - booking  = check out (going) - booking Manual Datafox Evo 4.6 FleKey Page 19 Date: 14.09.2021 V 04.03.17.XX...

  • Page 27: Structure Display Evo 4.3 /4.6 In The Bios Menu

    1 display in the bios menu: To flip the page, use the arrow keys For selection, just tap. Menu  general information Here you can test to read the badge Manual Datafox Evo 4.6 FleKey Page 20 Date: 14.09.2021 V 04.03.17.XX...
  • Page 28 Menu Touch: Layout: Here you can see the defined keys on the touchscreen such as numbers or ESC function keys. See the chapter: Touch configuration and display design. Manual Datafox Evo 4.6 FleKey Page 21 Date: 14.09.2021 V 04.03.17.XX...
  • Page 29 If the layout does not match exactly with the buttons, you can set an offset. To exit the menu: Dive with 2 fingers simultaneously on the right and left edge of the touch area for 2 seconds. Manual Datafox Evo 4.6 FleKey Page 22 Date: 14.09.2021 V 04.03.17.XX...
  • Page 30 Hier kann das Layout umgestellt werden. Große Icons bei Eingaben ein/ausblenden. Siehe: Displaybild umschalten Show large Icons Show large Icons no: headline 1 and 2 kombination no: headline 1 and 2 kombination yes: Manual Datafox Evo 4.6 FleKey Page 23 Date: 14.09.2021 V 04.03.17.XX...
  • Page 31 (With this setting use the device the communication to a web- server. If this setting on “yes“, the is the device not reachable.) (Here can you change the TCP/IP parameters.) e.g. IP-address, port and more. Manual Datafox Evo 4.6 FleKey Page 24 Date: 14.09.2021 V 04.03.17.XX...
  • Page 32 Setting the LAN parameters TCP/IP (page 1) ( DHCP E4:F7. MAC Address, starts by the Datafox devices ever with activate DHCP, automatic IP address assignment Current ip-adress. When you use DHCP then you can not set the IP adress manually.

  • Page 33: Activate The Bootloader

    In the menu User settings“ it is pos- sible to restart the device. Confirm your choosing with a tip (en- ter) on the display. All data and settings are kept. Manual Datafox Evo 4.6 FleKey Page 26 Date: 14.09.2021 V 04.03.17.XX...

  • Page 34: Switch The Display Design

    Newly revised display layout for better ease of use and better clar- ity. You can choose between this two designs in the menu “user settings  display / signals  Display-layout. Manual Datafox Evo 4.6 FleKey Page 27 Date: 14.09.2021 V 04.03.17.XX...

  • Page 35: Create A New Display Design

    To create an individual design, you need the DatafoxStudioIV minimum version: 04.03.06.XX. You find in the DatafoxStudioIV un- “Configuration Display Desinger“, the point to create an individual display design. Manual Datafox Evo 4.6 FleKey Page 28 Date: 14.09.2021 V 04.03.17.XX...

  • Page 36: Keys And The Combinations

    „Touch“ or slide with the finger over the display  Assume a chosen list entry ENTER-button  Abort an action ESC-button  Jump in the main menu ESC-button Manual Datafox Evo 4.6 FleKey Page 29 Date: 14.09.2021 V 04.03.17.XX...

  • Page 37: Bios Menu Setting Wlan

    Yes  saves the changes and exits the menu. No  exits the menu without saving the changes. By pressing ESC, you will find yourself back in the change menu and can view the changes you have made again. Manual Datafox Evo 4.6 FleKey Page 30 Date: 14.09.2021 V 04.03.17.XX...
  • Page 38 SSID can be added. Attention: Currently, however, only the connection to WPA2 networks is supported when entering with SSID. Manual Datafox Evo 4.6 FleKey Page 31 Date: 14.09.2021 V 04.03.17.XX...
  • Page 39 The input of the SSID and the key are limited to 32 characters. Values of the "Latin1" character set are permitted as input, with the exception of the control characters. Manual Datafox Evo 4.6 FleKey Page 32 Date: 14.09.2021 V 04.03.17.XX...

  • Page 40: Displaydesigner

    For the devices AE-MasterIV V4, PZE-MasterIV V4 and PZE-MasterIV Basic V4 is the Designer only usable for color display. With the Display-Designer, Datafox offers the possibility for partners and users to customize the dis- play according to your requirements. But due to the necessary operating sequences, this cannot be a completely free design, but things like headlines, menu structures and footers have to be guaran- teed.

  • Page 41: Color Setting For The Display

    „PZE“-design. This design is also set as de- fault when you first create a Function Key’s new theme in Display Designer. are not displayed in the default setting. Manual Datafox Evo 4.6 FleKey Page 34 Date: 14.09.2021 V 04.03.17.XX...

  • Page 42: Display Function Buttons On The Evo 4.3 / 4.6 / 2.8 / 3.5 Display

    Upload images for function buttons of EVO 4.3 / 4.6 / 2.8 / 3.5 Under this menu item "Key settings" you can import the image file for each function key. Sample picture for the key fig- ures: Manual Datafox Evo 4.6 FleKey Page 35 Date: 14.09.2021 V 04.03.17.XX...

  • Page 43: Transfer Additional Images

    The file names must follow name restrictions as followed: filename - Data storage successful !: save_ok.bmp filename - Data storage almost full: save_warning.bmp filename - Data store full! Notify admin !: save_error.bmp Manual Datafox Evo 4.6 FleKey Page 36 Date: 14.09.2021 V 04.03.17.XX...

  • Page 44: Image Display In The Main Menu

    The other main menu pages activated in the display designer can still be reached by swiping. Manual Datafox Evo 4.6 FleKey Page 37 Date: 14.09.2021 V 04.03.17.XX...

  • Page 45: Keyboard Graphics And Touch Configuration For The Evo 4.6 Flexkey

    Layout with fox-design white Layout with fox-design black You fount the Immage for the touch in the installation of the DatafoStudioIV: Here the standard installation path: C:\Program Files (x86)\Datafox\data\ui\EVO_4_6 Manual Datafox Evo 4.6 FleKey Page 38 Date: 14.09.2021 V 04.03.17.XX...

  • Page 46: Show Images During Inputs

    C:\Program Files (x86)\Datafox\data\ui\EVO_4_6 Example complete display: 5.3.3.10. Show images during inputs In the input fields "Normal", "Fingerprint", "Confirmation" and "Display or wait message" it is possible to display an image instead of text or the large clock. The name of the input field defines which stored image is displayed. The image name must be en- tered in the following form in the name of the field query.
  • Page 47 If these are not referenced in an input field, the images are not displayed either. In this case, note that the available storage space in the terminal is thereby reduced. Manual Datafox Evo 4.6 FleKey Page 40 Date: 14.09.2021 V 04.03.17.XX...

  • Page 48: Design Examples In The Designer

    With the installation of the DatafoxStudioIV you get several design examples for the devices. Click on the "Design Examples" button to open them. Datafox gradually extends the examples. If you have any suggestions or wishes, please let us know. Manual Datafox Evo 4.6 FleKey Page 41 Date: 14.09.2021 V 04.03.17.XX...

  • Page 49: Individual Photo Gallery For Evo Agera Reader

    5.3.3.12. Individual Photo gallery for EVO Agera reader The Datafox EVO Agera is not only in the position to do access control but also to give information by the help of a photo gallery. This could be e.g. the next company trip, information or just a presentation of your company.

  • Page 50: Switch Colours Of The Backlight

    Please adjust the colors to your needs. Help for the mixed colour: colour part of red part green part blue part white yellow turquoise orange pink green blue white Manual Datafox Evo 4.6 FleKey Page 43 Date: 14.09.2021 V 04.03.17.XX...

  • Page 51: Switch Lighting Depending On The Result

    List selection found no entry, then switch the backlight to: „Result: ESC“ The selection found an entry, then switch the backlight to: „Result: OK“ Manual Datafox Evo 4.6 FleKey Page 44 Date: 14.09.2021 V 04.03.17.XX...

  • Page 52: Installation Of The Evo 4.3/4.6 Terminal

    Installation height from 1.20 to 1.40 m recom- mended. If the device is equipped with a finger scanner, you should install the device 5 cm to 10 cm higher. 1,20m 1,40 m Manual Datafox Evo 4.6 FleKey Page 45 Date: 14.09.2021 V 04.03.17.XX...

  • Page 53: All Dimensions For The Evo Terminal

    5.5.2. All dimensions for the EVO terminal The suitable drilling template can be found here https://www.datafox.de/downloads-evo-line-43.de.html?file=files/Datafox_Devices/Downloads_Module_Zubehoer/230_Mon- tage/115001%20EVO%204.3%20Bohrschablone.pdf Table stand: https://www.datafox.de/downloads-evo-line-43.de.html?file=files/Datafox_Devices/Downloads_Module_Zubehoer/230_Mon- tage/11x081%20EVO%20Tischstaender%20BG%20%2B%20Geraete.pdf Manual Datafox Evo 4.6 FleKey Page 46 Date: 14.09.2021 V 04.03.17.XX...

  • Page 54: Connecting Of Evo 4.3/4.6

    1 digital output with normally open and normally close 1x digi. OUT Modulplatz 6 RS 232 Mini-DIN M004 + 5 V Ground / GND Modulplatz 7 TCP/IP - LAN RJ 45 Manual Datafox Evo 4.6 FleKey Page 47 Date: 14.09.2021 V 04.03.17.XX...

  • Page 55: Power Supply Of The Evo 4.3/4.6

    IEEE 802.3af 15,4 Watt 12,95 Watt PoE+ IEEE 802.3at 25,4 Watt 21,90 Watt If power is supplied via POE, an external access-reader can also be supplied via the access control plug. Manual Datafox Evo 4.6 FleKey Page 48 Date: 14.09.2021 V 04.03.17.XX...

  • Page 56: Modules For Devices Of Hardware V4

    5.6.3. Modules for devices of hardware V4 5.6.3.1. Description of the various extension modules The Datafox devices of the generation V4 are particularly distinguished by the variable configuration of individual modules. Depending on the device, a certain number of module locations are available.
  • Page 57 This can be individually fitted. Exceptions: Module place 8, only here TCP is possible. RS 485 for access control - maximum 4 Modules can be fitted. Manual Datafox Evo 4.6 FleKey Page 50 Date: 14.09.2021 V 04.03.17.XX...

  • Page 58: Read Out Important Module Information From The Device

    5.6.3.3. Read out important module information from the device Click on: "Configuration  Device Configuration BIOS" Then click on "Status" thereafter Click "Read". Manual Datafox Evo 4.6 FleKey Page 51 Date: 14.09.2021 V 04.03.17.XX...
  • Page 59 Different timers, which are set in the setup, are shown. The figure in brackets is the actual time to the next trigger. Number of stored records in the device and memory used. Manual Datafox Evo 4.6 FleKey Page 52 Date: 14.09.2021 V 04.03.17.XX...

  • Page 60: Connection Of The Individual Modules

    Analog inputs, 4 times analog IN common ground; GND / Ground + 0-10 V signal 4 + 0-10 V signal 3 + 0-10 V signal 2 + 0-10 V signal 1 Manual Datafox Evo 4.6 FleKey Page 53 Date: 14.09.2021 V 04.03.17.XX...

  • Page 61: Times Digital Out

    Connectiom example (Connection of 4 contacts): e.g.: 4x digital in max. 30V 0 - 1,5 V Input logical 0 3,5 V - 30 V Input logical 1 - Galvanically isolated - up to 250Hz Manual Datafox Evo 4.6 FleKey Page 54 Date: 14.09.2021 V 04.03.17.XX...

  • Page 62: Bus For Access Control

    5.6.3.9. RS-485 bus for access control Manual Datafox Evo 4.6 FleKey Page 55 Date: 14.09.2021 V 04.03.17.XX...

  • Page 63: Communication Of Hardware V4 Devices

    The type of communication depends on the device. All possible communications are listed in the device.  Note: Datafox-devices are able to communicate encrypted. „DatafoxStudioIV“. Read more in the manual for the The switching of the communication can be done via : 1.

  • Page 64: Automatic Detected Connected Usb To Pc

    If the device is connected to a PC no other connections (for example Wi-Fi) will happen. If the USB-cable is disconnected, it will automatically switch to the configured main com- munication. Manual Datafox Evo 4.6 FleKey Page 57 Date: 14.09.2021 V 04.03.17.XX...

  • Page 65: Installing Usb Driver For Hardware V4 Devices

    Follow the instructions on the screen: Caution: Only use the driver which are delivered with the device! Note:  If you have DatafoxStudioIV installed, the USB-driver will already be installed on your PC. Manual Datafox Evo 4.6 FleKey Page 58 Date: 14.09.2021 V 04.03.17.XX...

  • Page 66: Communication / Record Transfer Via Usb-Stick (Host)

    Lists of access control can be transferred individually, operation lists must always be transmitted in complete form. All lists defined in the setup must also exist on the stick in the "List" directory. Manual Datafox Evo 4.6 FleKey Page 59 Date: 14.09.2021 V 04.03.17.XX...

  • Page 67: Error Messages By Using Usb-Stick (Host)

    Error by checking the handle, the file is not open Error write protect Error by the record structure Error during the firmware update No USB stick Incorrect password No list Manual Datafox Evo 4.6 FleKey Page 60 Date: 14.09.2021 V 04.03.17.XX...

  • Page 68: Communication Via Tcp / Ip

     "LAN / WLAN – Configuration (*.df0)“. The LAN / WLAN configurations are saved in a file with the filename extension "*. df0". Here you have the possibility to edit the file, load it into the Datafox device (upload) or read it from the device (download).

  • Page 69: Communication Tcp / Ip Via Network-Cable

    For devices with display, the IP address can also be entered directly on the device. Press ESC and ENTER simultaneously to enter the Bios menu of the device. More information can be found in the chapter „bios menu“. Manual Datafox Evo 4.6 FleKey Page 62 Date: 14.09.2021 V 04.03.17.XX...

  • Page 70: Communication Tcp / Ip Via Wlan / Wifi

    Communication TCP / IP via wLAN / Wifi General information about the WLAN modules used. There are 2 different WLAN modules that have been integrated into the Datafox devices. 1.) Redpine – installed in the units since 2013. 2.) Texas Instruments TI-CC3135 - installed in the devices since 2021.03.

  • Page 71: Texas Instruments Ti-Cc3135 (Generation 2)

    We cannot test every Acsess point on the market. Therefore, it is not possible for us to guarantee a connection to every AP.. Support for WPA3 and WPA2 Enterprise is planned. Manual Datafox Evo 4.6 FleKey Page 64 Date: 14.09.2021 V 04.03.17.XX...

  • Page 72: Redpine (Generation 1)

    When setting the encryption AES or WEP, only one type is used at a time. The setting AES+WEP means for some access points that AES encryption is performed first and then additionally encrypted with WEP. In this case, only set AES. Manual Datafox Evo 4.6 FleKey Page 65 Date: 14.09.2021 V 04.03.17.XX...
  • Page 73 WLAN connection. The user therefore has no insight into the dial-in parameters at the various locations.  Hint: With automatic selection of the configuration / location, the first attempt is always made to establish a connection with the default schema. Manual Datafox Evo 4.6 FleKey Page 66 Date: 14.09.2021 V 04.03.17.XX...

  • Page 74: Connection Of The Terminals Via Tcp/Ip Dns / Dhcp

    5.7.4.5. Connection of the Terminals via TCP/IP DNS / DHCP To connect a Datafox EVO-Device with the Hostname it is necessary to set something in the DNS- Server. (In this example Windows-Server 2012) Create a new Host (A)-value: Abbreviation Descripion...
  • Page 75 DHCP- entry EVO 2.5 10245 .zentrale.de Evo25-10245.zentrale.de EVO 3.5 10246 .zentrale.de Evo35-10246.zentrale.de AE-Master 10247 .zentrale.de AE-10247.zentrale.de PZE-Master 10248 .zentrale.de PZE-10248.zentrale.de EVO 4.3 10249 .zentrale.de Evo43-10249.zentrale.de Manual Datafox Evo 4.6 FleKey Page 68 Date: 14.09.2021 V 04.03.17.XX...

  • Page 76: Communication Via Cellular Network (Gprs)

    We recommend to use T-Mobile or Vodafone as provider for mobile networks! Our experience shows that with other providers you have to reckon with more frequent dial-ups and thus delayed data transmission and possibly higher costs. Information for M2M: http://www.t-mobile.de/business/machinetomachine/m2m-im-einsatz/0,23219,26762-_,00.html Manual Datafox Evo 4.6 FleKey Page 69 Date: 14.09.2021 V 04.03.17.XX...

  • Page 77: Communication State

    Device is the encryption active, but not on the server battery is down, to disable Modem. impossible connect to the provider or Roaming impossible close connection Turn modem off Manual Datafox Evo 4.6 FleKey Page 70 Date: 14.09.2021 V 04.03.17.XX...

  • Page 78: Communication Via Sms

    Caution: Enter the phone number always with a country code. Example.: +49161458 The device can save 128 SMS. Then there is additional as follows to clear the oldest SMS. Manual Datafox Evo 4.6 FleKey Page 71 Date: 14.09.2021 V 04.03.17.XX...

  • Page 79: Receive A Sms

    (default setting). Save you an empty Key, then receive the device every SMS. The last received SMS can you see in the Bios-Menu under „general information Bios (Menu)“. Manual Datafox Evo 4.6 FleKey Page 72 Date: 14.09.2021 V 04.03.17.XX...
  • Page 80 Connection to the server with the saved parameters in the „active mode“. b) and c) Connection on Port 8000 to the server (www.datafox.de/123.123.123.123). d) Connection to the server “www.datafox.de” and port “4711”. Manual Datafox Evo 4.6 FleKey Page 73 Date: 14.09.2021 V 04.03.17.XX...
  • Page 81 If the level of regulation from the system is not correct, then there is a report via SMS. The Datafox MasterIV is not the regulator here. He gives only a report in trouble. If necessary, a procedure also can be done.

  • Page 82: Communication Via Rs485

    Setting for communication in the DatafoxStudioIV for connection via RS 485: Com-Port See in the device man- ager on your PC Baud rate 38400 and Bus number are to set in the device bios menu Manual Datafox Evo 4.6 FleKey Page 75 Date: 14.09.2021 V 04.03.17.XX...

  • Page 83: Connecting The Terminal Via Rs485 With A Comserver Lantronix

    Setting for communication in the DatafoxStudioIV for connection via RS 485: IP and Port must set in the comserver. Baud rate 38400 and Bus number are to set in the device bios menu Manual Datafox Evo 4.6 FleKey Page 76 Date: 14.09.2021 V 04.03.17.XX...
  • Page 84 Setting in the Comserver for connection via RS 485: Port: for example 8000 IP: for example 192.168.123.224 Manual Datafox Evo 4.6 FleKey Page 77 Date: 14.09.2021 V 04.03.17.XX...

  • Page 85: Connection And Wiring Of The Access Control

    When adding comments, you have to notice that in a comment line no field values can be given and that the comment line has to start with a semicolon. The table Reader.txt might look like this: RefLocation RefAction PinGeneral Manual Datafox Evo 4.6 FleKey Page 78 Date: 14.09.2021 V 04.03.17.XX...
  • Page 86 Online / offline after time-out is a combination. If the server is unavailable, the terminal can decide on basis of its lists whether to grant access to a per- son or not. Manual Datafox Evo 4.6 FleKey Page 79 Date: 14.09.2021 V 04.03.17.XX...
  • Page 87 (19.00) on all weekdays. The corresponding relay is at the door module with the bus number 2. Reader.txt RefLocation RefAction PinGeneral Time.txt Weekdays TimeEnd TimeEnd 12345 10:00 00:00 12345 16:00 00:00 07:00 19:00 1234567 Action.txt RefReader PortOut Elapse RefTime Manual Datafox Evo 4.6 FleKey Page 80 Date: 14.09.2021 V 04.03.17.XX...

  • Page 88: Description Of Tables For Access Control 2

    6 = permanent opening for U & Z cylinders 7 = Burglary alarm system, allowed to switch on/off 8 = general authority (with PIN request) 9 = general authority (no PIN request) Manual Datafox Evo 4.6 FleKey Page 81 Date: 14.09.2021 V 04.03.17.XX...
  • Page 89 Reference to the action that should be carried out (e.g. switch relay). (int) The time model which indicates when the digital input is checked. (0 = not Number RefTime used). (int) Manual Datafox Evo 4.6 FleKey Page 82 Date: 14.09.2021 V 04.03.17.XX...
  • Page 90 This is a function to switch relays directly via time (table) RefTime (int) Please not mix this function with the normal access actions. !!! By a time-table setting “1234567 00:00-23:59” is the relay permanent on. Manual Datafox Evo 4.6 FleKey Page 83 Date: 14.09.2021 V 04.03.17.XX...

  • Page 91: Access-Control With Intera 2

    RFID-Tac in the field LED – white = sleepmode (deactivatet via proximity sensor.) LED – off -> reddy to read and the background LED is on. LED – Blau (no function) Manual Datafox Evo 4.6 FleKey Page 84 Date: 14.09.2021 V 04.03.17.XX...
  • Page 92 Connection to the PTSM connector The EVO Intera II is supplied with the 4-pin or 5-pin mating connector for connecting the reader. These are protected against polarity reversal and are sup- plied by Datafox with printed assignment. PTSM 5- PTSM 4- DIP switch...
  • Page 93 Bus Nr. 1 EVO-ZK-Leser Uv >max. 200 m bei 0.6mm plug 4 poles for access plug 5 poles digital in-/output max. 30V; 2A Power supply for door electic door opener Manual Datafox Evo 4.6 FleKey Page 86 Date: 14.09.2021 V 04.03.17.XX...

  • Page 94: Access Control With Evo Intera Reader

    Environment values Ambient temperature, Protection -20 ° C to +70 ° C, IP65 Transponder systems 125kHz Mifare Legic Hitag 1+2+S Mifare Classic Legic prime Unique EM4102 Mifare Desfire Legic advant Manual Datafox Evo 4.6 FleKey Page 87 Date: 14.09.2021 V 04.03.17.XX...
  • Page 95 Titan EM4450 Mifare Ultralight Manual Datafox Evo 4.6 FleKey Page 88 Date: 14.09.2021 V 04.03.17.XX...
  • Page 96 3, without terminate resistor 0-0-0-1-1 Connector for IO- modul Relay + digital in description Number. +10V bis +30V DC ! new RS 485-Data „B“ DIP-switch RS 485-Data „A“ GND ground Manual Datafox Evo 4.6 FleKey Page 89 Date: 14.09.2021 V 04.03.17.XX...

  • Page 97: Connecting Of The Evo Intera Reader Examples

    Wire plan for one EVO Intera: Bus Nr. 1 EVO Intera Connector 4 pole for Access Bus connector 5 pole for digital in and max. 30V; 2A Power supply for door opener Manual Datafox Evo 4.6 FleKey Page 90 Date: 14.09.2021 V 04.03.17.XX...

  • Page 98: Connecting Of Kyo Oneloc As A Door Opener With One Intera

    RS485 door opener - EVO device - KYO Oneloc - AE-Master power supply RS485 RS485 door opener power supply RS485 RS485 door opener power supply RS485 further readers possible Manual Datafox Evo 4.6 FleKey Page 91 Date: 14.09.2021 V 04.03.17.XX...
  • Page 99 Entry for reader at KYO Oneloc Attention: Dip switch on reader always bus address 1 Master device with access control e.g.: - KYO Inloc - EVO device - KYO Oneloc - AE-Master Manual Datafox Evo 4.6 FleKey Page 92 Date: 14.09.2021 V 04.03.17.XX...
  • Page 100 12V max. 2A RS485 power supply RS485 12V max. 2A power supply RS 485 R = 120 Ohm further readers terminating resistor possible directly at the last KYO Oneloc Manual Datafox Evo 4.6 FleKey Page 93 Date: 14.09.2021 V 04.03.17.XX...

  • Page 101: Connecting Of Kyo Oneloc As A Door Opener With Two Intera

    RS485 Door opener - EVO device - KYO Oneloc - AE-Master 12V DC Power supply RS485 RS485 RS485 Door opener 12V DC Power supply RS485 RS485 Further readers possible Manual Datafox Evo 4.6 FleKey Page 94 Date: 14.09.2021 V 04.03.17.XX...
  • Page 102 Attention: Dip switch on reader always bus address 1 Entry 2nd reader Door 2 Master device with access control e.g.: - KYO Inloc - EVO device - KYO Oneloc - AE-Master Manual Datafox Evo 4.6 FleKey Page 95 Date: 14.09.2021 V 04.03.17.XX...

  • Page 103: Wiring Of Kyo Oneloc As A Door Opener With Two Intera

    Bus Nr. 030 for KYO Oneloc vice Oneloc 1 reader Bus Nr. 040 Further readers possible R = 120 Ohm terminating resistor directly at the last KYO Oneloc Manual Datafox Evo 4.6 FleKey Page 96 Date: 14.09.2021 V 04.03.17.XX...

  • Page 104: Access Control Ii With Phg-Modules

    69806D of the PHG readers the autologin function for Mifare is sup- ported. Here for 5 of the max. 6 keys can be used in the setup. Manual Datafox Evo 4.6 FleKey Page 97 Date: 14.09.2021 V 04.03.17.XX...
  • Page 105 Attention: Technical data for the PHG access modules can be found on the Datafox DVD or in our download area. Please note the power consumption of the modules and the voltage drop at long cable lengths. The responsibility for calculating the maximum cable lengths lies with the installer.

  • Page 106: Connecting Of Phg-Reader

    5.8.5.1. Connecting of PHG-reader In order to connect the PHG modules, please note the PHG documentation on the Datafox CD: <Datafox-Geräte- Datafox-Zutritt-Module PHG *.pdf> In the PHG documents for the single modules, the pin assignment and configuration via the DIP switches are described.
  • Page 107 RS485 I²C max. 1000 m max. 5 m floating relay contact Reader I/O-Box Power supply 12 V DC for reader C max. 5m ISTY 2x2x0,8  / – / Manual Datafox Evo 4.6 FleKey Page 100 Date: 14.09.2021 V 04.03.17.XX...
  • Page 108 Power supply for door opener Bus Nr. 1 Siedle-access reader Wire plan for Siedle access reader: Power supply 12 V DC for reader max. 30V; 2A Power supply for door opener Manual Datafox Evo 4.6 FleKey Page 101 Date: 14.09.2021 V 04.03.17.XX...
  • Page 109 Wiring plan for a VOXIO-T-Z reader: The reader type is supported as of FW 04.03.12.xx PHG reader VOXIO-T-Z Power supply 12 V for DC AC-reader max. 30V; 2A Power supply for door opener Manual Datafox Evo 4.6 FleKey Page 102 Date: 14.09.2021 V 04.03.17.XX...
  • Page 110 RS485 I²C max. 5 Reader 3 potential-free contact for door more reader Last reader last reader end resistor max. 1000 m switch 7  on Manual Datafox Evo 4.6 FleKey Page 103 Date: 14.09.2021 V 04.03.17.XX...
  • Page 111 – / ~ further reader In any case, a protection circuit should be integrated when connecting the door-opener. A freewheeling diode for DC and an RC element for AC. Manual Datafox Evo 4.6 FleKey Page 104 Date: 14.09.2021 V 04.03.17.XX...
  • Page 112 Relais 2 normally open free free digital in 2 Signal digital in 2 ground 1 und 2 ground U+ 8…..30V ST 1 Circuit diagram “S“ normally open “G“ common “Ö“ normally close Manual Datafox Evo 4.6 FleKey Page 105 Date: 14.09.2021 V 04.03.17.XX...

  • Page 113: Configuration

    The IO box is accessed via the same address like the reader. The two digital in- puts have port number 4 and 5, the digital outputs port number 1 and 2. In case of discontinuity or sabotage, port no. 6 is used. Manual Datafox Evo 4.6 FleKey Page 106 Date: 14.09.2021 V 04.03.17.XX...
  • Page 114 C bus, is omitted. Corresponding reader table: RefLocation RefAction PinGeneral Description Master device Reader at RS485 (PHG) IO-Box at I C-Bus Reader at RS485 (LTM) IO-Box at I C-Bus Manual Datafox Evo 4.6 FleKey Page 107 Date: 14.09.2021 V 04.03.17.XX...

  • Page 115: Access Control Ii With Evo Agera

    RGB colours. The control of the LED is con- trolled exclusively by the readers firmware. Access denied = red - Access permitted = green - Bios activated = blue - Manual Datafox Evo 4.6 FleKey Page 108 Date: 14.09.2021 V 04.03.17.XX...

  • Page 116: Display For State Of Access Control

    Error message error communication The reader is in constant communi- cation with the master. If communication is interrupted, this is indicated by the text "Communi- cation error" on the reader. Manual Datafox Evo 4.6 FleKey Page 109 Date: 14.09.2021 V 04.03.17.XX...

  • Page 117: Bios-Menu

    The following information can be called up in the general con- figuration: - Installed firmware, serial number - Memory allocation for the image memory - Transponder test for the transponder configured in the mas- ter setup. Manual Datafox Evo 4.6 FleKey Page 110 Date: 14.09.2021 V 04.03.17.XX...

  • Page 118: Display Configuration

    The bus terminating resistor of 120 Ω is switched on or off in the bus configuration under "Terminating resistor". Note: If it is the last or only reader in the RS485 bus, the termi- nating resistor must be switched on. Manual Datafox Evo 4.6 FleKey Page 111 Date: 14.09.2021 V 04.03.17.XX...

  • Page 119: Instructions For The Electrician For Installing The Access Control System

    ! Incorrect star connection of the RS485 bus. RS485 wire pairs must not be connected in parallel. Junction box RS485 wire pair RS485 wire pair Datafox EVO Intera 1 Datafox KYO Inloc Datafox EVO Intera 2 Manual Datafox Evo 4.6 FleKey Page 112 Date: 14.09.2021 V 04.03.17.XX...
  • Page 120 A cable can be led to the reader, ex- ample: Cat cable, Telecommunications cable (JY(ST)Y), or similar RS485 A-B AC Master e.g.: Datafox KYO Inloc External power supply +12V Junction box Manual Datafox Evo 4.6 FleKey Page 113 Date: 14.09.2021 V 04.03.17.XX...

  • Page 121: Calculation For The Power Supply Of Access Modules

    RS485 network for access control. The voltage drop in the whole bus must not exceed 4 V. Please note that if you use a Datafox device power supply unit as voltage source, 16 modules at most (8 in the RS485 bus and 8 via RS232 stub line) can be fed.

  • Page 122: Cable Length And Cable Cross Section For Access Wiring

    12V: • mm Cable cross section: • mm Cable cross section: power supply reader with separated power supply 24V: • mm Cable cross section: • mm Cable cross section: Manual Datafox Evo 4.6 FleKey Page 115 Date: 14.09.2021 V 04.03.17.XX...

  • Page 123: Online Functions For The Access Control

    With the answer from the server you are able to perform specific actions with the access readers. The following examples will give you an insight in what is possible with the functions and actions. All parameters correspond the online functions with the dll. Manual Datafox Evo 4.6 FleKey Page 116 Date: 14.09.2021 V 04.03.17.XX...
  • Page 124 For this, the new keywords "module" and "master" were implemented. These must be used to- gether, replacing the keyword "access". Attention: The order “accessmasktypduration” or mastermodulemasktypdura- tion must be strictly adhered to. status=ok&checksum=2482&access=010&mask=5&type=1&duration=2 status=ok&checksum=2482&master=1&module=010&mask=5&type=1&duration=2 Manual Datafox Evo 4.6 FleKey Page 117 Date: 14.09.2021 V 04.03.17.XX...
  • Page 125 You can also perform multiple actions on the access control in one response. However, the total length of the response must not exceed 254 characters. Attention: A automated switch between online and offline mode is not possible in http mode Manual Datafox Evo 4.6 FleKey Page 118 Date: 14.09.2021 V 04.03.17.XX...

  • Page 126: Online Via Dll Connection

    LEDs. More dll functions are documented in the “Datafox SDK” on our website https://www.datafox.de/downloads-datafox-kyo-inloc.de.html?file=files/Datafox_Devices/Down- loads_Geraete_Zubehoer/001_MasterIV-Software/Datafox_SDK_Windows_04.03.12.zip...

  • Page 127: Function Extention For Access Control Ii

    The entire logic of the access control lies in the links between the access lists. Here is an overview of the links between the access lists: The following example gives an overview: Manual Datafox Evo 4.6 FleKey Page 120 Date: 14.09.2021 V 04.03.17.XX...

  • Page 128: Examples

    All readings of RFID on this reader make all actions in the table “action“, with the ID 3000. Table Time Weekdays TimeStart TimeEnd Description text 1234567 00:01 23:59 24houers opening possible 1234567 07:00 16:00 Time for special action Manual Datafox Evo 4.6 FleKey Page 121 Date: 14.09.2021 V 04.03.17.XX...
  • Page 129 Description 1111 2005-01-01 2015-12-31 Master of Garage 2222 2005-01-01 2015-12-31 Skilled workers 3333 2005-01-01 2015-12-31 Facility manager Facility manager second RFID-chip, 4444 2005-01-01 2015-12-31 only for closing the door Manual Datafox Evo 4.6 FleKey Page 122 Date: 14.09.2021 V 04.03.17.XX...
  • Page 130 The goal is to allow users only to exit at the allowed floor. Then tenant uses the transponder to activate only the switch for his floor. In the cabin of the elevator the RFID-reader is installed. The Datafox-Device is on the top of the cabin.
  • Page 131 2099-12-31 floor Tenant of an apartment on the 1102 2005-01-01 2099-12-31 floor 1 and 2 Tenant of an apartment on the 1104 2005-01-01 2099-12-31 floor 1, 2 and 3 Manual Datafox Evo 4.6 FleKey Page 124 Date: 14.09.2021 V 04.03.17.XX...

  • Page 132: Description Of The Table „Action2

    If you would like to continue working with the "action" table, the table "Action 2" may not be transferred to the device. A table "Action 2" has already been transferred to the device, it must be cleared by load- ing a new setup. Manual Datafox Evo 4.6 FleKey Page 125 Date: 14.09.2021 V 04.03.17.XX...

  • Page 133: Additional Functions For Access Control

    Here you can choose whether the reject is limited in time or whether Hard remains active. In the case of Hard Active, access is not permitted again until another room ID has been accessed. This corresponds to leaving the previous room. Manual Datafox Evo 4.6 FleKey Page 126 Date: 14.09.2021 V 04.03.17.XX...

  • Page 134: List Presence

    Reference to the ID of the room, defined in the table "Location", where this RefLocation (int) person currently stays Number Time stamp when the person entered the current room TimeStamp (int) Integer in seconds, starting 01.01.2000. Manual Datafox Evo 4.6 FleKey Page 127 Date: 14.09.2021 V 04.03.17.XX...

  • Page 135: Automatic Relay Release Upon Opening Of The Door

    Doors that are opened by a time model or set to free access will remain opened. Caution: All action entries associated to the reader will be checked and released. A check con- cerning the group is not implemented. Manual Datafox Evo 4.6 FleKey Page 128 Date: 14.09.2021 V 04.03.17.XX...

  • Page 136: Configuration

    5.8.12.2. Configuration Implementing supervised door using the Datafox Access Control modules requires the setup using the ReaderProps list. This list is required for BDS and anti-passback as well. The following specifi- cation of the ReaderProps thus contains minimal field length specifications.

  • Page 137: Special Case: Relays Operated By Time Model

    ID 10 identified an RFID transponder that is allowed to open the door. The action sets relay 1 at the access controller for 10 seconds. Simultaneously the green LED is activated at reader ID 10. Action2.txt Grou Reader PortOut Elapse Reader Time Time Relais Relais Manual Datafox Evo 4.6 FleKey Page 130 Date: 14.09.2021 V 04.03.17.XX...

  • Page 138: Additional Lists

    If digital input 1 changes to low voltage, all doors being unlocked for a finite time will be locked again. The entry to the ReaderProps list is as follows: ReaderPorps.txt RefReader Type Mode RefReaderInput Input Manual Datafox Evo 4.6 FleKey Page 131 Date: 14.09.2021 V 04.03.17.XX...

  • Page 139: Rfid Reader

    EVO 4.6 FlexKey with Mifare-Desfire: LRW 4 cm R/W für MifarePlus / 7 Byte UID necessary  Note: More information you found in the manual from DatafoxStudioIV chapter „The RFID Technology” Manual Datafox Evo 4.6 FleKey Page 132 Date: 14.09.2021 V 04.03.17.XX...

  • Page 140: Data On Card

    6987986 Franz Zufall The terminal stores where the data is written to the ID card (e.g. segment) Doors with electronic locking cylinder or similar. Current authorization yes / no Manual Datafox Evo 4.6 FleKey Page 133 Date: 14.09.2021 V 04.03.17.XX...

  • Page 141: Settings For Using Dataoncard

    When importing via the DLL, the data needs to be passed on as binary data. Using the DFC GetField, DFC GetField list functions, you are working with strings, while the firm- ware converts the hexstrings to and from the binary data. Manual Datafox Evo 4.6 FleKey Page 134 Date: 14.09.2021 V 04.03.17.XX...
  • Page 142 1. ) RFID Configurations for the RFID reader The transponder configuration for the reading can be freely selected. However, firstly it needs to be defined in the basic transponder settings. Manual Datafox Evo 4.6 FleKey Page 135 Date: 14.09.2021 V 04.03.17.XX...
  • Page 143  Please note: First, complete the transponder configuration, then create the list with the binary field and finally parameterize the field function Data on Card. Manual Datafox Evo 4.6 FleKey Page 136 Date: 14.09.2021 V 04.03.17.XX...
  • Page 144 0x30, 0x31, 0x32, 0x33, 0x34 ……  Please note: When a 3-tone sequence is signaled, the Data-On-Card option is not available on this de- vice. The option has to be purchased afterwards. Manual Datafox Evo 4.6 FleKey Page 137 Date: 14.09.2021 V 04.03.17.XX...

  • Page 145: Dataoncard On The Access Control Reader

    Only one access control reader (ZK) can be connected to the bus at any time. Dip switch 1 and the termination of the bus must be set to "ON" (Bus address 1). Manual Datafox Evo 4.6 FleKey Page 138 Date: 14.09.2021 V 04.03.17.XX...

  • Page 146: Dataoncard And A Access Control Reader - Wiring

    ZK-Knoten Wiring plan for EVO-access reader with using DataOnCard: EVO-access-reader connector ZK-Knoten Wiring plan for PHG-access reader with using DataOnCard: RS 485 bus line up to 500m in a twisted pair cable Manual Datafox Evo 4.6 FleKey Page 139 Date: 14.09.2021 V 04.03.17.XX...

  • Page 147: Barcode Reader

    From this 255 characters can you coppy maximum 60 in a global variable. More information about cut a value find you in the manual DatafoxStudioIV in the chapter "Normal (value transfer from ID card, etc ...)". Setting in the DatafoxStudioIV: Manual Datafox Evo 4.6 FleKey Page 140 Date: 14.09.2021 V 04.03.17.XX...

  • Page 148: Fingerscanner Optical Sensor

    In addition, Finger Writing on Card can be active. You can select the in- dividual menu items! You can also watch the handling of the new finger sensor in our video. https://www.datafox.de/video-verwendung-und-einlernen-einer-fingerprintloesung-mit-optischen-flaechensensor.de.html Manual Datafox Evo 4.6 FleKey Page 141 Date: 14.09.2021 V 04.03.17.XX...

  • Page 149: Menu Page - Check Finger

    The successful teach-in is indicated by a green field which also contains a quality value. With a quality value of 85 and more, the teach-in was very successful. Manual Datafox Evo 4.6 FleKey Page 142 Date: 14.09.2021 V 04.03.17.XX...

  • Page 150: Training" Menu Page

    If no more green feedback comes, the training can be stopped. The fingers that have already been taught-in are marked with „X“ Manual Datafox Evo 4.6 FleKey Page 143 Date: 14.09.2021 V 04.03.17.XX...

  • Page 151: Menu Page - Delete

    For EVO 2.8 and 3.5 there is a separate page for exiting the finger administration menu. Simply click on the center of the screen and exit the menu. With the EVO 4.3 you can exit the administration menu by pressing the "ESC" key. Manual Datafox Evo 4.6 FleKey Page 144 Date: 14.09.2021 V 04.03.17.XX...
  • Page 152 Schlechte Positionen / Bad positions Zu weit unten Zu weit oben Zu weit links Zu weit rechts Too far down Too far up Too far left Too far right Manual Datafox Evo 4.6 FleKey Page 145 Date: 14.09.2021 V 04.03.17.XX...
  • Page 153 Finger sehr trocken Trockenen Finger kurz Trockenen Finger an- Trockenen Finger ein- Finger very dry gerieben gehaucht gecremt Dry finger shortly Dry finger breathed on Dry finger with cream rubbed Manual Datafox Evo 4.6 FleKey Page 146 Date: 14.09.2021 V 04.03.17.XX...
  • Page 154 640 Bytes. ISO19794-4; ANSI-378 Resolution 500 dpi The sensor-resolution is 500 dpi. Active area 14 x 18mm The active area of the sensor is 14 x 18 mm. Manual Datafox Evo 4.6 FleKey Page 147 Date: 14.09.2021 V 04.03.17.XX...

  • Page 155: Finger Scanner Line Sensor

    In no case may be components on the finger, which have an abrasive effect. These use the protective layer of the line sensor and thus significantly reduce the service life. Manual Datafox Evo 4.6 FleKey Page 148 Date: 14.09.2021 V 04.03.17.XX...

  • Page 156: General Infomation

    The behavior must be checked in each individual case, since it is very dependent on the group of people. In such cases, one should switch to another finger, because not every human finger is suitable for the Minutien method. Manual Datafox Evo 4.6 FleKey Page 149 Date: 14.09.2021 V 04.03.17.XX...

  • Page 157: Teach-In

    05597861113494 M. Musterfrau Step 2 Scan finger Step 3 PID and finger characteristics to combinate finger characteristics Template Step 4 Save Template on Biokey-Module on Mifare Transponder on Server Manual Datafox Evo 4.6 FleKey Page 150 Date: 14.09.2021 V 04.03.17.XX...

  • Page 158: Procedure

    (scanned) finger. The fingerprint module transfers PID and validity to the terminal. The task in the terminal for the fingerprint triggers an input sequence and access control - if defined in the setup. Manual Datafox Evo 4.6 FleKey Page 151 Date: 14.09.2021 V 04.03.17.XX...

  • Page 159: Process Variants

    Deleting a template from a fingerprint module by identification 1.) Scan finger 2.) Delete template from fingerprint module or 1.) Determine PID (read from ID card or via list selection) 2.) Delete template from fingerprint module Manual Datafox Evo 4.6 FleKey Page 152 Date: 14.09.2021 V 04.03.17.XX...

  • Page 160: Technical Data Of The Fingerprint Module

    In order to use the camera it has to be active first (see). A default setup does not activate the cam- era automatically – you have to do it explicitly. Manual Datafox Evo 4.6 FleKey Page 153 Date: 14.09.2021 V 04.03.17.XX...
  • Page 161 You will require the activation of the camera in oder to use the camera test from the BIOS menu as well. Manual Datafox Evo 4.6 FleKey Page 154 Date: 14.09.2021 V 04.03.17.XX...

  • Page 162: Simple Picture Recording By Field Function

    In addition to taking pictures you may show a text message on the display when the device has just acquired the image. The duration for showing the text message may be set explicitly (see green box in Fehler! Verweisquelle konnte nicht gefunden werden.). Manual Datafox Evo 4.6 FleKey Page 155 Date: 14.09.2021 V 04.03.17.XX...
  • Page 163 Additionally an acoustic signal may be generated when running the field function. The acoustic sig- nal may be selected from the drop down list (see blue section in Fehler! Verweisquelle konnte nicht gefunden werden.). The acoustic signal is deactivated by default. Manual Datafox Evo 4.6 FleKey Page 156 Date: 14.09.2021 V 04.03.17.XX...

  • Page 164: Simple Or Randomized Picture Recording By Field Function

    Figure 7 Memory settings The image size depends on the compression ratio when storing PNG devices. When using BMP files, the images size stays the same for all images. Manual Datafox Evo 4.6 FleKey Page 157 Date: 14.09.2021 V 04.03.17.XX...
  • Page 165 If the image buffer’s capacity is exceeded, the oldest image inside this storage will be overwritten when taking a new picutre. Thus you will have access to the most current pictures always. Manual Datafox Evo 4.6 FleKey Page 158 Date: 14.09.2021 V 04.03.17.XX...

  • Page 166: Bios Menu

    Fehler! Verweisquelle konnte nicht gefunden werden. Fehler! Verweisquelle konnte nicht gefunden werden.). The re- trieval period is shown at the screens headline. Manual Datafox Evo 4.6 FleKey Page 159 Date: 14.09.2021 V 04.03.17.XX...
  • Page 167 Manual Datafox Evo 4.6 FleKey Page 160 Date: 14.09.2021 V 04.03.17.XX...

  • Page 168: Transfering Images From The Device To The Pc

    For downloading a specific image, you may enter its name into the field „Single image name for reading:“ and press the Button „Read im- age“ (green marker in Fehler! Verweisquelle konnte nicht gefunden werden.). Manual Datafox Evo 4.6 FleKey Page 161 Date: 14.09.2021 V 04.03.17.XX...

  • Page 169: Restoring Camera Images

    Using the button „Reset image memory“ you may permanently delete all images from the device’s memory. These images then cannot be recovered. Attention: After resetting the image memory a recovery of the images is not possible. Manual Datafox Evo 4.6 FleKey Page 162 Date: 14.09.2021 V 04.03.17.XX...

  • Page 170: Additional Information

    DatafoxStudio when transfer- ring a new setup. Attention: The images stored on a device are erased when transfering a setup to the device. Manual Datafox Evo 4.6 FleKey Page 163 Date: 14.09.2021 V 04.03.17.XX...

  • Page 171: Status Information On The Camera

     REcount = Count of camera module reboots The “Info” section contains settings applied. Currently, the resolution and image format are shown. Figure 11 Device status with built-in camera Manual Datafox Evo 4.6 FleKey Page 164 Date: 14.09.2021 V 04.03.17.XX...

  • Page 172: Camera Frame Rates

    (see 5.14.1.1). This, however, does not guarantee that all operations lead to taking a picture. Manual Datafox Evo 4.6 FleKey Page 165 Date: 14.09.2021 V 04.03.17.XX...

  • Page 173: Signature Function (Evo 4.3 Only)

    5.15.1. Configuration using the Datafox Studio IV The signature function has to be activated in the setup and memory has to be assigned to storing the signature images. You may then use the field function “Signature” at the appropriate place in your setup process.

  • Page 174: Fever Measurement On The Wrist

    5.16. Fever measurement on the wrist The temperature measurement option on Datafox terminals measures the skin temperature behind the wrist at a distance of 3-10 cm. This measurement can give an indication of whether the person at the terminal may have a fever. Fever is often an early sign of contagious infectious diseases, as it is the case with Covid-19.

  • Page 175: Operating Sequence Of The Measuring Process

    (e.g. green or red light). The value of the result status can be assigned to a record description field or also to a "global varia- ble" for a subsequent evaluation. Manual Datafox Evo 4.6 FleKey Page 168 Date: 14.09.2021 V 04.03.17.XX...

  • Page 176: Description Of The Field Function

    After a valid or only after an invalid measurement, a query can be activated to be able to repeat the measurement. This gives the user the possibility to perform measurements again by one or more repetitions, e.g. if there were still clothes in the measuring range. Manual Datafox Evo 4.6 FleKey Page 169 Date: 14.09.2021 V 04.03.17.XX...

  • Page 177: Operation On The Unit

    5.16.2.2. Operation on the unit In this case the wrist is from the sensor. sensor. In this case the wrist is close to the sensor. sensor away. Manual Datafox Evo 4.6 FleKey Page 170 Date: 14.09.2021 V 04.03.17.XX...
  • Page 178 If the maximum set value is reached, this message appears. Manual Datafox Evo 4.6 FleKey Page 171 Date: 14.09.2021 V 04.03.17.XX...

  • Page 179: Description Of The Field Function In The Display Designer

    Example of the display layout of an EVO 3.5 Pure during measurement. Manual Datafox Evo 4.6 FleKey Page 172 Date: 14.09.2021 V 04.03.17.XX...
  • Page 180 (in the left-hand area) and for the thermometer (in the right-hand area). The combination of arrow symbols for the three possible distance states.  Guide the wrist towards the sensor. Manual Datafox Evo 4.6 FleKey Page 173 Date: 14.09.2021 V 04.03.17.XX...
  • Page 181 Please note the maximum image sizes when specifying. Images that are too large will be scaled down to the maximum possible size. Smaller images will be aligned in the centre. Manual Datafox Evo 4.6 FleKey Page 174 Date: 14.09.2021 V 04.03.17.XX...

  • Page 182: Technical Data Evo 4.6 Flexkey Terminal

    Protection IP 65 front side, IP54 complete Software Configuration program Setup program (Datafox-Studio) to configure without programming effort Communication tools http, DLL or C source code for integration in the application Module extensions For the extension to a variety of functions such as communication, inputs / outputs, sensors, ... are 7 expansion slots for modules.

  • Page 183: Communication Modules

    RS485 Width 20mm RS485 connection for the access reader, relay modules, ... power sup- ply from 1 external reader when using Datafox power supplies with Access Control-IO Width 20mm 1 relay changeover, 42 V AC, DC 60 V, 2 A, max. 60 W; 1 digital input for monitoring door, ...
