Manual
WAGO-I/O-SYSTEM 750 XTR
750-468/040-000
4AI 0-10V DC S.E. /XTR

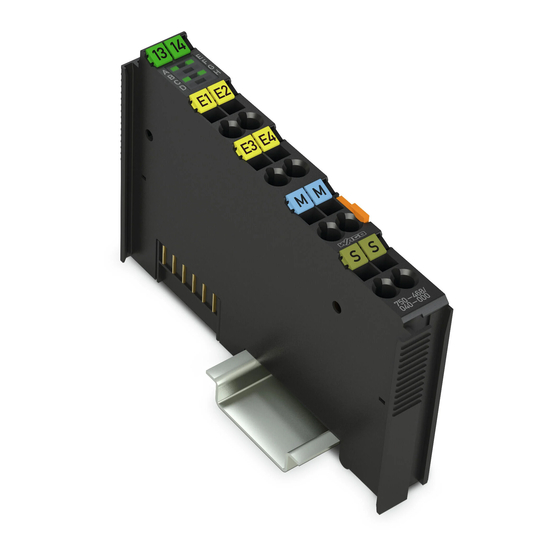

4-Channel Analog Input Module, 0-10 VDC,
Single-ended /XTR
Version 1.3.0
Pos : 3 /Alle Serien (Allgemeine M odul e)/Rec htlic hes, Allgemei nes/Impressum für Standardhandbüc her - allg. Angaben, Ansc hriften, T elefonnummer n und E-Mail-Adres sen @ 3\mod_1219151118203_21.doc x @ 21060 @ @ 1
Advertisement
Chapters
Table of Contents
Related Manuals for WAGO 750-468/040-000
Summary of Contents for WAGO 750-468/040-000
- Page 1 Pos : 2 /D okumentati on allgemein/Ei nband/Ei nband Fronts eite - H andbuc h; CI 2017; mit DocVariablen (Standar d) @ 28\mod_1486477502910_0.doc x @ 405388 @ @ 1 Manual WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR 4-Channel Analog Input Module, 0-10 VDC, Single-ended /XTR Version 1.3.0...
- Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. === Ende der Liste für T extmar ke Ei nband_vorne === Manual...
-
Page 3: Table Of Contents
WAGO-I/O-SYSTEM 750 XTR Table of Contents 750-468/040-000 4AI 0-10V DC S.E. /XTR Pos : 5 /D okumentati on allgemein/Verzeic hnisse/Inhalts verz eichnis - Ü berschrift oG und Verzei chnis @ 3\mod_1219151230875_21.doc x @ 21063 @ @ 1 Table of Contents Notes about this Documentation ............. - Page 4 Table of Contents WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR Connection Examples ................37 Use in Hazardous Environments ............38 Marking Configuration Examples ............39 7.1.1 Marking for Europe According to ATEX and IECEx ......39 7.1.2 Marking for the United States of America (NEC) and Canada (CEC) ..............
-
Page 5: Notes About This Documentation
Pos : 10 /Serie 750 ( WAGO-I/O-SYST EM)/Hi nweis e z ur D okumentati on ( alte Struktur)/Gül tigkeits ber eich/Gültig kei tsbereic h D okumentati on I/O-Modul 750-xxxx, ohne Variantenang abe @ 14\mod_1358944037947_21.doc x @ 109346 @ @ 1... -
Page 6: Symbols
Notes about this Documentation WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR Pos : 12.4 /All e Seri en ( Allgemei ne Module)/Ü bers chriften/Ebene 2/Symbol e - Ü berschrift 2 @ 13\mod_1351068042408_21.doc x @ 105270 @ 2 @ 1 Symbols Pos : 12.5.1 /All e Serien ( Allgemei ne Module)/Sicherheits- und sons tige Hi nweis e/Gefahr/Gefahr: _War nung vor Pers onenschäden allgemei n_ - Erläuter ung @ 13\mod_1343309450020_21.doc x @ 101029 @ @ 1... - Page 7 WAGO-I/O-SYSTEM 750 XTR Notes about this Documentation 750-468/040-000 4AI 0-10V DC S.E. /XTR Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Pos : 12.6 /Dokumentation allgemei n/Glieder ungs elemente/---Seitenwechs el--- @ 3\mod_1221108045078_0.doc x @ 21810 @ @ 1 Manual Version 1.3.0...
-
Page 8: Number Notation
WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR Pos : 12.7 /All e Seri en ( Allgemei ne Module)/Ü bers chriften/Ebene 2/D arstellung der Z ahlens ys teme - Ü bers chrift 2 @ 23\mod_1435647128078_21.doc x @ 184811 @ 2 @ 1 Number Notation Pos : 12.8 /All e Seri en ( Allgemei ne Module)/R ec htliches , Allgemei nes /Zahlens ysteme @ 3\mod_1221059454015_21.doc x @ 21711 @ @ 1... -
Page 9: Important Notes
Pos : 15.6 /Serie 750 (WAGO-I/O-SYST EM)/Wic htige Erläuterungen (al te Str uktur)/Besti mmungsg emäß e Ver wendung/Besti mmungsgemäße Ver wendung 750- xxxx für Geräte - STD - mi t EN 61000-6- 3 @ 3\mod_1224064151234_21.doc... -
Page 10: Technical Condition Of Specified Devices
These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •... -
Page 11: 2.1.4.1.2 Packaging
WAGO-I/O-SYSTEM 750 XTR Important Notes 750-468/040-000 4AI 0-10V DC S.E. /XTR Environmentally friendly disposal benefits health and protects the environment from harmful substances in electrical and electronic equipment. • Observe national and local regulations for the disposal of electrical and electronic equipment. -
Page 12: Safety Advice (Precautions)
Pos : 15.14 /Serie 750 ( WAGO-I/O-SYST EM)/Wichtig e Erl äuter ung en (alte Struktur)/Sic her heits- und s onstige Hi nweis e/Warnung/Warnung: Speisung aus schli eßlich aus SELV-/PELV- Vers orgung ( 24V-XTR-I/O-M odule) @ 29\mod_1493107132163_21.doc... - Page 13 Pos : null /Serie 750 (WAGO-I/O-SYST EM)/Wichtige Erläuter ung en (alte Str uktur)/Sic her hei ts- und s onstige Hi nweise/Ac htung/Ac htung: Ei nwandfrei e Kontakti erung z ur Tragsc hiene gewährleisten! @ 3 4\mod_1550481407638_21.doc...
- Page 14 Pos : 15.17 /Serie 750 ( WAGO-I/O-SYST EM)/Wichtig e Erl äuter ung en (alte Struktur)/Sic her heits- und s onstige Hi nweis e/Ac htung/Ac htung: XTR - Is olationspr üfung en mit DC durchführen! @ 15\mod_1370843209441_21.doc...
-
Page 15: Device Description
Pos : 18.6 /Serie 750 (WAGO-I/O-SYST EM)/Wic htige Erläuterungen (al te Str uktur)/Sic herheits- und s onstige Hinweise/Hinweis/Hi nweis : Potenti alei nspeis e modul ei ns etz en! ( keine LK) @ 3\mod_1226499089640_21.doc x @ 25026 @ @ 1... - Page 16 750-626/040-000 are generally to be used for XTR module groups. Pos : 18.11 /Serie 750 ( WAGO-I/O-SYST EM)/Gerätebeschr eibung (alte Struktur)/Einl eitung/Eins atzbereic h/Eins atzbereic h 750- xxxx/040-000 all e XTR-Koppler/Contr oller ohne Ei nsc hränkung+Misc hbetriebhinweise @ 15\mod_1368425919479_21.doc x @ 119444 @ @ 1 The I/O module can be operated with all fieldbus couplers/controllers of the WAGO-I/O-SYSTEM 750 XTR.
-
Page 17: View
Figure 1: View Pos : 22 /Serie 750 ( WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Ansic ht/Ansicht C ageClamp® _Legende mi t LEDs _ohne Leistungs kontakte @ 16\mod_1371816091053_21.doc x @ 124052 @ @ 1 Table 3: Legend for Figure “View”... -
Page 18: Connectors
Data Contacts/Local Bus Pos : 26.1 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Ansc hlüs se/Datenkontakte - Fel dbus koppl er/-c ontroller und Modul e – Abbildung und Besc hrei bung @ 3\mod_1231771259187_21.doc x @ 26002 @ @ 1 Communication between the fieldbus coupler/controller and the I/O modules as well as the system supply of the I/O modules is carried out via the local bus. -
Page 19: Power Jumper Contacts/Field Supply
Shield termination Pos : 32 /Serie 750 ( WAGO-I/O-SYST EM)/Wic htige Erläuterungen (al te Str uktur)/Sic herheits- und sonstige Hinweis e/Hinweis/Hi nwei s: Ges chir mte Signall eitungen ver wenden! @ 7\mod_1265723251019_21.doc x @ 50140 @ @ 1 Use shielded signal lines! Only use shielded signal lines for analog signals and I/O modules which are equipped with shield clamps. -
Page 20: Display Elements
Pos : 35 /All e Seri en (Allgemei ne Module)/Ü berschriften/Ebene 2/Anzeig eel emente - Ü berschrift 2 @ 4\mod_1240984390875_21.doc x @ 31964 @ 2 @ 1 Display Elements Pos : 36 /Serie 750 ( WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Anz eigeel emente/AI/Anz eigeel emente 750- 0468/040- xxx @ 16\mod_1378111203904_21.doc x @ 130425 @ @ 1 Figure 4: Display Elements Table 5: Legend for Figure “Display Elements”... -
Page 21: Schematic Diagram
Pos : 40 /All e Seri en (Allgemei ne Module)/Ü berschriften/Ebene 2/Sc hematis ches Sc haltbild - Ü bersc hrift 2 @ 4\mod_1240984441312_21.doc x @ 31967 @ 2 @ 1 Schematic Diagram Pos : 41 /Serie 750 ( WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Sc hematische Sc hal tbilder/AI/Sc hematisc hes Sc haltbild 750-0468/040- xxx @ 16\mod_1378111644743_21.doc x @ 130454 @ @ 1 Figure 5: Schematic Diagram Pos : 42 /D okumentation allgemei n/Glieder ungs elemente/---Seitenwechs el--- @ 3\mod_1221108045078_0.doc x @ 21810 @ @ 1... -
Page 22: Technical Data
Pos : 44.2 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Technisc he Daten/VS (Variabl ensteuerung)/Technisc he Daten Vers orgung (VS) DC 24 V (M odul e ohne LKs) - XTR @ 24\mod_1452073791842_21.doc... -
Page 23: Mechanical Conditions
Follow the installation instructions Pos : 44.7 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Technisc he Daten/VS (Variabl ensteuerung)/Technisc he Daten kli matisc he U mwel tbedi ngungen (VS) - XTR @ 15\mod_1369387559187_21.doc x @ 120360 @ 3 @ 1 3.6.7... -
Page 24: Approvals
Pos : 47.2 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Zul ass ung en/Allgemein/Zul ass ung en I/O-Modul 750- xxxx Allgemei n, ohne Vari antenangabe - Einl eitung @ 4\mod_1237460656921_21.doc x @ 28643 @ @ 1 The following approvals have been granted to 750-468/040-000 I/O modules: Pos : 47.3 /All e Seri en ( Allgemei ne Module)/Z ulassungen/Standardz ulassungen/C E (Konformi täts kennz eichnung) @ 3 \mod_1224494777421_21.doc x @ 24276 @ @ 1... -
Page 25: Standards And Guidelines
Standards and Guidelines Pos : 49.1 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/Nor men und Richtlini en I/O-Modul 750- xxxx, ohne Vari antenangabe - Einl eitung @ 7\mod_1274278887584_21.doc x @ 56645 @ @ 1 750-468/040-000 I/O modules meet the following standards and guidelines: Pos : 49.2 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/Allgemeine N or men XTR 2017 (AT EX und IECEx) @ 29\mod_1488294653976_21.doc x @ 410705 @ @ 1... -
Page 26: Table 16: Climatic And Mechanical Environmental Conditions And Shipbuilding
Device Description WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR Table 16: Climatic and Mechanical Environmental Conditions and Shipbuilding Standard Test Value Transport EN 60870-2-2 Ct2(2k4) (except precipitation/water/moisture) Mechanical Environmental Conditions EN 61850-3 Achieved EN 60870-2-2 EN 60721-3-1 EN 60721-3-3... -
Page 27: Table 17: Emc - Immunity To Interference
Pos : 49.5 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/EM V-Nor men I/O-M odul 750- xxxx/0040- 0000, nur Standar dversi on - Ei nlei tung XTR @ 18\mod_1395909426189_21.doc... - Page 28 The list of ship certifications issued is available in the section “Approvals”. Pos : 49.7 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/Nor men Störauss endung XTR @ 18\mod_1394087664442_21.doc x @ 147358 @ @ 1 Manual Version 1.3.0...
-
Page 29: Table 18: Emc - Emission Of Interference
WAGO-I/O-SYSTEM 750 XTR Device Description 750-468/040-000 4AI 0-10V DC S.E. /XTR Table 18: EMC – Emission of Interference Standard Test Value Enclosure Emission of Interference • EN 61000-6-3 30 dB(µV/m), QP, 30 MHz … 230 MHz • EN 55022 Class B 37 dB(µV/m), QP, 230 MHz …... -
Page 30: Table 19: Standards And Rated Conditions For Rail Applications (En 50155)
EMC A or EMC B). Pos : 49.8 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/Nor men und Ei ns atz beding ung en für Bahnanwendungen (EN 50155) XTR @ 28\mod_1486482984774_21.doc x @ 405384 @ @ 1... -
Page 31: Process Image
Pos : 52.3 /Serie 750 (WAGO-I/O-SYST EM)/Proz ess abbild Lokalbus/Hi nweis: Proz ess abbil dmappi ng abhängig von F BK/PFC , mit Status-/C ontrollbyte @ 4\mod_1242621308640_21.doc x @ 33290 @ @ 1 Mapping of process data in the process image of fieldbus systems The representation of the I/O modules’... -
Page 32: Table 20: Process Image Of The I/O Module750-468/040-000
Process Image WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR Table 20: Process image of the I/O module750-468/040-000 Status Numeric value Input voltage byte 0 V … 10 V hex. Binary XFÜ Hex. Dec. < 0.00 '0000.0000.0000.0 000' 0x0000 0x00 0.00... -
Page 33: Mounting
I/O modules with fewer power contacts. Pos : 55.2 /Serie 750 (WAGO-I/O-SYST EM)/Wic htige Erläuterungen (al te Str uktur)/Sic herheits- und s onstige Hinweise/Vorsic ht/Vorsic ht: Verletz ungsgefahr durc h sc harfkantige M esser kontakte! @ 6\mod_1256193279401_21.doc x @ 43414 @ @ 1 Risk of injury due to sharp-edged blade contacts! The blade contacts are sharp-edged. -
Page 34: Inserting And Removing Devices
Pos : 55.10 /Serie 750 ( WAGO-I/O-SYST EM)/Wichtig e Erl äuter ung en (alte Struktur)/Sic her heits- und s onstige Hi nweis e/Ac htung/Ac htung: XTR nic ht unter -20 °C verdrahten oder umstec ken @ 15\mod_1367559895186_21.doc... -
Page 35: Removing The I/O Module
(if any) to the fieldbus coupler/controller or to the previous or possibly subsequent I/O module are established. Pos : 55.12 /Serie 750 ( WAGO-I/O-SYST EM)/Monti eren/D emonti eren/XTR-I/O-Modul entfernen @ 28\mod_1486551166032_21.doc x @ 405491 @ 3 @ 1 5.2.2 Removing the I/O Module Remove the I/O module from the assembly by pulling the release tab. -
Page 36: Connect Devices
Connect Devices Pos : 58 /Serie 750 ( WAGO-I/O-SYST EM)/Ans chli eßen/Leiter an C AGE C LAM P ans chli eßen ( allgemei n) - Übersc hrift 2 und Text @ 3\mod_1225448660171_21.doc x @ 24928 @ 2 @ 1 ®... -
Page 37: Connection Examples
Figure 10: Connection Examples Pos : 62 /Serie 750 ( WAGO-I/O-SYST EM)/Wic htige Erläuterungen (al te Str uktur)/Sic herheits- und sonstige Hinweis e/Hinweis/Hi nwei s: Ges chir mte Signall eitungen ver wenden! @ 7\mod_1265723251019_21.doc x @ 50140 @ @ 1... -
Page 38: Use In Hazardous Environments
Use in Hazardous Environments Pos : 65.2 /Serie 750 (WAGO-I/O-SYST EM)/Eins atz in Ex- Ber eichen/Ei ns atz ber eich Serie 750 @ 3\mod_1234272230203_21.doc x @ 27500 @ @ 1 The WAGO-I/O-SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas and shall be used in accordance with the marking and installation regulations. -
Page 39: Marking Configuration Examples
Marking for Europe According to ATEX and IECEx Pos : 65.6 /Serie 750 (WAGO-I/O-SYST EM)/Eins atz in Ex- Ber eichen/Beis piel bedruc kung ATEX und IEC Ex_TUEV07_2017 @ 14\mod_1360569228625_21.doc x @ 111294 @ @ 1 Figure 11: Marking Example According to ATEX and IECEx Figure 12: Text Detail –... -
Page 40: Table 21: Description Of Marking Example According To Atex And Iecex
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR Table 21: Description of Marking Example According to ATEX and IECEx Marking Description TUEV 07 ATEX 554086 X Approving authority resp. certificate numbers IECEx TUN 09.0001 X... -
Page 41: Figure 13: Marking Example For Approved Ex I I/O Module According To Atex And Iecex
750-468/040-000 4AI 0-10V DC S.E. /XTR Pos : 65.8 /Serie 750 (WAGO-I/O-SYST EM)/Eins atz in Ex- Ber eichen/Beis piel bedruc kung ATEX und IEC Ex_TUEV12_Ex i_2017 @ 14\mod_1360569320118_21.doc x @ 111298 @ @ 1 Figure 13: Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Figure 14: Text Detail –... -
Page 42: Table 22: Description Of Marking Example For Approved Ex I I/O Module According To Atex And Iecex
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR Table 22: Description of Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Marking Description TUEV 12 ATEX 106032 X Approving authority resp. certificate numbers... -
Page 43: Marking For The United States Of America (Nec) And Canada (Cec)
Figure 15: Marking Example According to NEC Pos : 65.11 /Serie 750 ( WAGO-I/O-SYST EM)/Ei ns atz i n Ex-Bereic hen/Beispi elbedruc kung und Textdetail N EC 500_2017 @ 14\mod_1360580302684_21.doc x @ 111353 @ @ 1 Figure 16: Text Detail – Marking Example According to NEC 500... -
Page 44: Figure 17: Text Detail - Marking Example For Approved
750-468/040-000 4AI 0-10V DC S.E. /XTR Pos : 65.13 /Serie 750 ( WAGO-I/O-SYST EM)/Ei ns atz i n Ex-Bereic hen/Beispi elbedruc kung und Textdetail N EC 505_2017 @ 29\mod_1497865583500_21.doc x @ 424739 @ @ 1 Figure 17: Text Detail – Marking Example for Approved Ex i I/O Module According to NEC 505... -
Page 45: Figure 19: Text Detail - Marking Example For Approved
750-468/040-000 4AI 0-10V DC S.E. /XTR Pos : 65.16 /Serie 750 ( WAGO-I/O-SYST EM)/Ei ns atz i n Ex-Bereic hen/Beispi elbedruc kung und Textdetail C EC_2017 @ 29\mod_1497865583297_21.doc x @ 424736 @ @ 1 Figure 19: Text Detail – Marking Example for Approved Ex i I/O Modules According to CEC 18... -
Page 46: Installation Regulations
Special Notes Regarding Explosion Protection Pos : 65.21.2 /Serie 750 ( WAGO-I/O- SYST EM)/Ei nsatz i n Ex-Bereic hen/Besonder e Hi nweis e hinsic htlic h Explosi onssc hutz_2017 @ 29\mod_1491556994025_21.doc x @ 415448 @ @ 1 The following warning notices are to be posted in the immediately proximity of the WAGO-I/O-SYSTEM 750 (hereinafter “product”):... - Page 47 WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-468/040-000 4AI 0-10V DC S.E. /XTR Explosive atmosphere occurring simultaneously with assembly, installation or repair work must be ruled out. Among other things, these include the following activities • Insertion and removal of components •...
-
Page 48: Special Notes Regarding Ansi/Isa Ex
Special Notes Regarding ANSI/ISA Ex Pos : 65.21.5 /Serie 750 ( WAGO-I/O- SYST EM)/Ei nsatz i n Ex-Bereic hen/AN SI/ISA gemäß U L Fil e E198726_2017 @ 29\mod_1491557259544_21.doc x @ 415451 @ @ 1 For ANSI/ISA Ex acc. to UL File E198726, the following additional requirements apply: •... -
Page 49: List Of Figures
WAGO-I/O-SYSTEM 750 XTR List of Figures 750-468/040-000 4AI 0-10V DC S.E. /XTR Pos : 67 /D okumentation allgemei n/Verz eic hniss e/Abbil dungs verz eic hnis - Übersc hrift oG und Verz eichnis @ 3\mod_1219222916765_21.doc x @ 21080 @ @ 1 List of Figures Figure 1: View ....................17... -
Page 50: List Of Tables
List of Tables WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR Pos : 69 /D okumentation allgemei n/Verz eic hniss e/Tabell enverz eichnis - Übersc hrift oG und Verz eichnis @ 3\mod_1219222958703_21.doc x @ 21084 @ @ 1 List of Tables Table 1: Number Notation ................... - Page 51 WAGO-I/O-SYSTEM 750 XTR 750-468/040-000 4AI 0-10V DC S.E. /XTR Pos : 71 /D okumentation allgemei n/Einband/Einband - Leers eite für durc h 2 teilbare Seitenz ahl (Standarddruc k) @ 3\mod_1219230851078_0.doc x @ 21123 @ @ 1 Manual Version 1.3.0...
