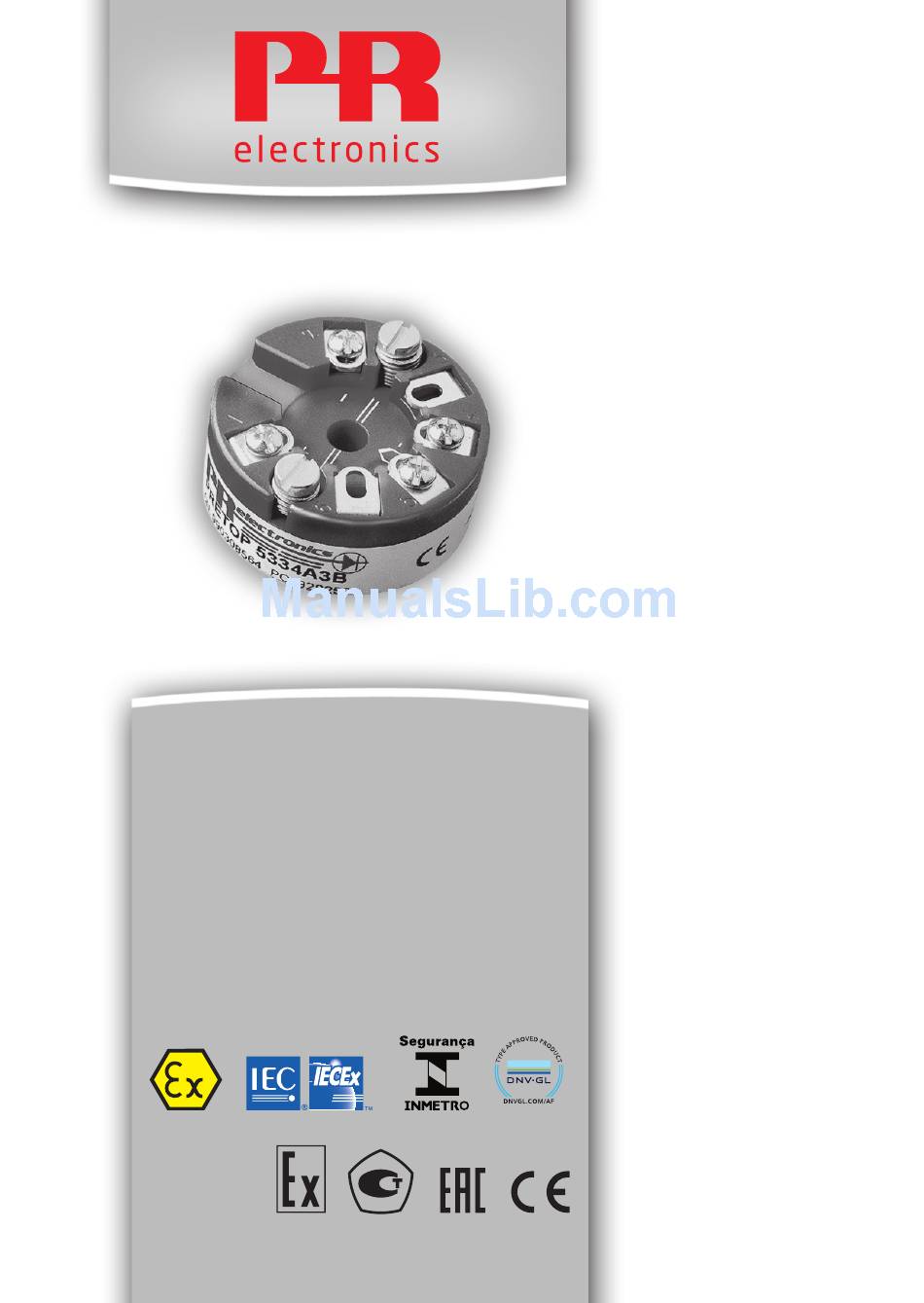

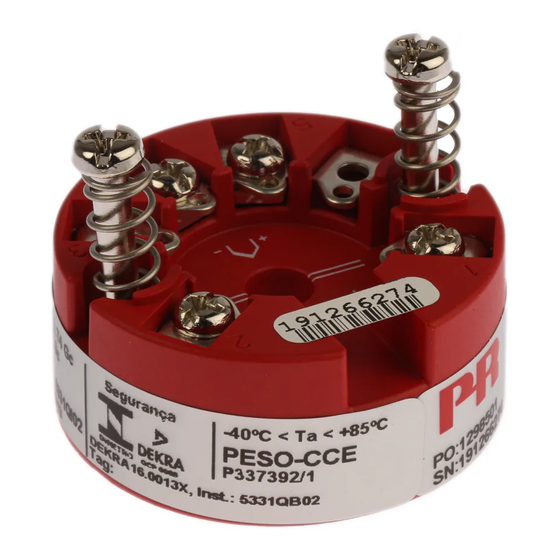

- Page 1 5 3 3 4 2 - W i r e P r o g r a m m a b l e T r a n s m i t t e r N o . 5 3 3 4 V 1 1 0 - U K F r o m s e r .
- Page 2 Revision Notes The following list provides notes concerning revisions of this document. Rev. ID Date Notes 13/45 IECEx and INMETRO approvals added 15/14 PESO/CCOE approval added GOST approval replaced with EAC approval 17/07 INMETRO installation drawings updated 1707...
-
Page 3: Table Of Contents
2-WIRE PROGRAMMABLE TRANSMITTER 5334 CONTENTS Application ....................Technical characteristics ..............Mounting / installation ................. Applications....................Order: 5334 ....................Electrical specifications................ Connections ....................Block diagram ................... Programming .................... Mechanical specifications ..............10 Mounting of sensor wires ..............10 Appendix ....................11 ATEX Installation Drawing - 5334A .......... -
Page 4: Application
• Continuous check of vital stored data for safety reasons. Mounting / installation • For DIN form B sensor head mounting. In non-hazardous areas the 5334 can be mounted on a DIN rail with the PR fitting type 8421. 5334V11 0 -UK... -
Page 5: Applications
APPLICATIONS 2-wire installation TC to 4...20 mA in control room 2-wire installation mV to 4...20 mA in control room 5 33 4 V 1 10 - UK... -
Page 6: Order: 5334
Order: 5334 Ambient Galvanic Type Version temperature isolation 5334 Standard -40°C...+85°C : 3 1500 VAC ATEX Ex, IECEx & INMETRO Electrical specifications Specifications range: -40°C to +85°C Common specifications: Supply voltage, DC Standard ..............7.2...35 V ATEX Ex, IECEx & INMETRO ......7.2...30 VDC Internal power dissipation Standard .............. - Page 7 Basic values Basic Temperature Input type accuracy coefficient ≤ ±10 µV ≤ ±1 µV / °C Volt TC type: E, J, K, L, N, T, U ≤ ±1°C ≤ ±0.05°C / °C TC type: B, R, S, ≤ ±2°C ≤ ±0.2°C / °C W3, W5, LR EMC immunity influence ..........
-
Page 8: Current Output
Cold junction compensation ........ < ±1.0°C Sensor error detection ........... Yes Sensor error current: When detecting ........... Nom. 33 mA Else ................0 mA Voltage input: Measurement range ..........-12...150 mV Min. span ..............5 mV Input resistance............10 MΩ Output: Current output: Signal range ............... -
Page 9: Connections
CONNECTIONS Input: TC, internal CJC Output: 2-wire installation 5 33 4 V 1 10 - UK... -
Page 10: Block Diagram
BLOCK DIAGRAM 5334V11 0 -UK... -
Page 11: Programming
PROGRAMMING • Loop Link is a communications interface that is needed for programming 5334. • For programming please refer to the drawing below and the help functions in PReset. • Loop link is not approved for communication with modules installed in harzardous (Ex) areas. -
Page 12: Mounting Of Sensor Wires
Mechanical specifications Mounting of sensor wires ø 6 mm 20.2 m m 33 mm ø 44 mm Wires must be mounted between the metal plates. 5334V11 0 -UK... -
Page 13: Appendix
APPENDIX ATEX INSTALLATION DRAWING - 5334A ATEX INSTALLATION DRAWING - 5334B IECEx INSTALLATION DRAWING - 5334A IECEx INSTALLATION DRAWING - 5334B INMETRO INSTRUÇÕES DE SEGURANÇA - 5334A INMETRO INSTRUÇÕES DE SEGURANÇA - 5334B 5 33 4 V 1 10 - UK... - Page 14 5331QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 5331A3B or 5334A3B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 15 5331QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 5331D or 5334B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 16 5331QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes. The sensor circuit is not infallibly galvanic isolated from the input circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute. In a potentially explosive gas atmosphere, the transmitter shall be mounted in an enclosure in order to provide a degree of protection of at least IP20 according to EN60529.
- Page 17 5331QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5331A or 5334A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 18 5331QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5331D or 5334B the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 19 5331QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes. The sensor circuit is not infallibly galvanic isolated from the input circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute. In a potentially explosive gas atmosphere, the transmitter shall be mounted in a metal form B enclosure in order to provide a degree of protection of at least IP20 according to IEC60529.
- Page 20 5331QB02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Desenho de Instalação INMETRO Para instalação segura do 5331A ou 5334A o seguinte deve ser observado. O modelo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
- Page 21 5331QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Desenho de Instalação INMETRO Para instalação segura do 5331D ou 5334B o seguinte deve ser observado. O modelo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
- Page 22 5331QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Notas de instalação O circuito do sensor não é isolado galvanicamente do circuito de entrada de forma infalível. Contudo, a isolação galvânica entre os circuitos é capaz de resistir a um ensaio de tensão de 500Vac durante 1 minuto.
- Page 23 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearization, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analog and digital signals as well as HART signals between sensors / I/P converters / frequency signals and control systems in Ex zone 0, 1 &...
- Page 24 www.prelectronics.se sales-se@prelectronics.com www.prelectronics.com sales-uk@prelectronics.com www.prelectronics.com sales-us@prelectronics.com www.prelectronics.cn sales-cn@prelectronics.com Head office Denmark www.prelectronics.com PR electronics A/S sales@prelectronics.dk Lerbakken 10 tel. +45 86 37 26 77 DK-8410 Rønde fax +45 86 37 30 85...
