Installation Guide V130/V350/V430/SM35/SM43/SM70 CANbus Module

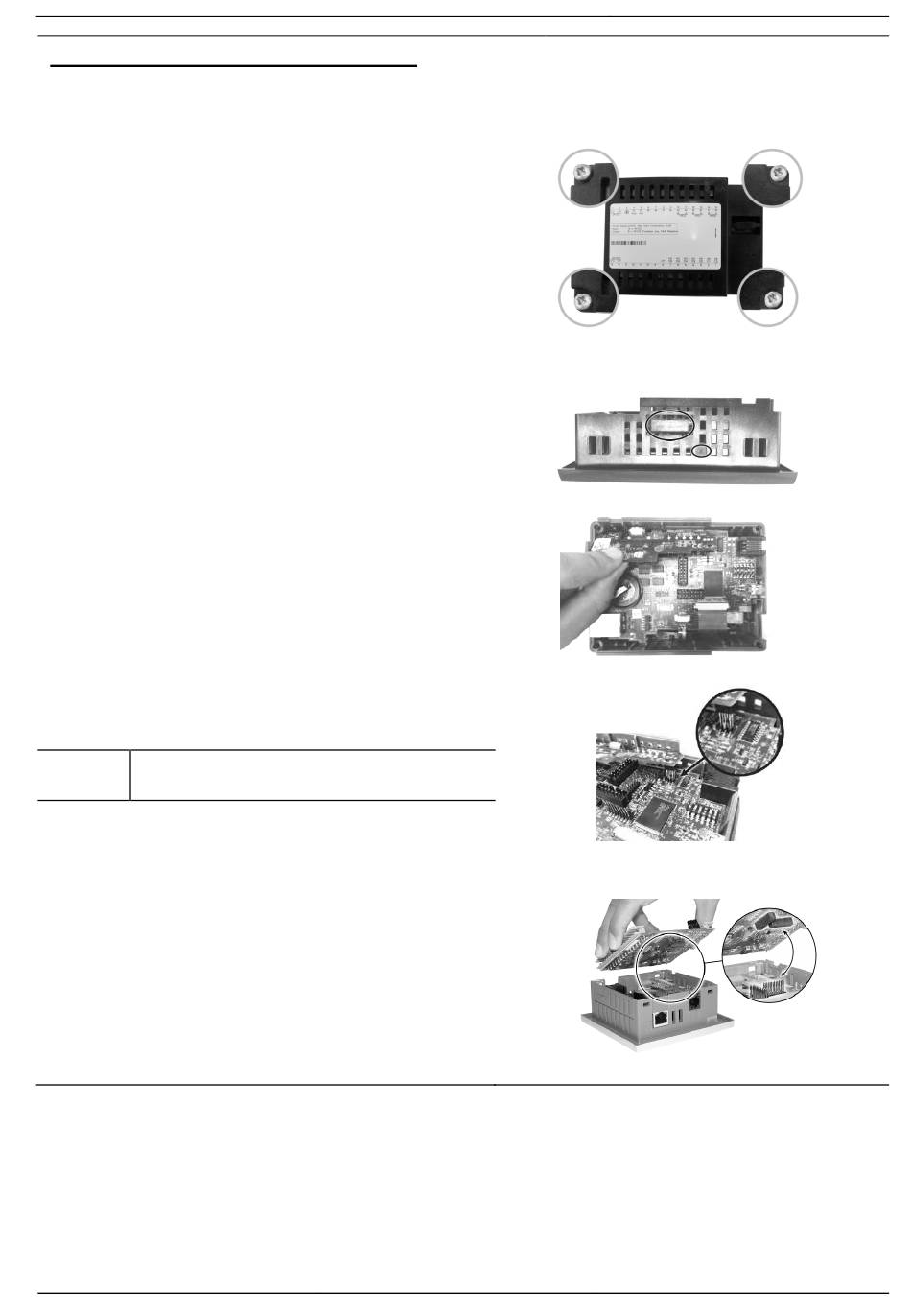

Installation in a V430/SM43 controller

Opening the Controller
1.
Turn off the power supply,
disconnect and dismount the controller.
2.
The back cover of the controller
comprises 4 screws, located in the corners.
Remove the screws, and pull off the back
cover.
3.
Hold the I/O PCB board by its top and
bottom connectors and steadily pull
the board off.

Installing V100-17-CAN, V100-S-CAN

1.
Break the plastic tab marked X.
2.
Plastic tab X comprises a cutout that covers
the CANbus port location.
3.
locate the white plastic pin and remove it by
compressing the ends of the white pin with a
pair of pliers.
4.
Insert the module as shown in the
accompanying figure.
6-pin female CANbus connector. The main
board comprises a male 6-pin CANbus
connector.
Make certain that the pins fit correctly
Caution
into their matching receptacle.

Closing the controller

1.
Replace the I/O board.
2.
Close the controller by snapping the plastic
cover back in its place. If the card is placed
correctly, the cover will snap on easily.
3.
Replace the screws in the corners
of the back cover.
Unitronics
3/15
