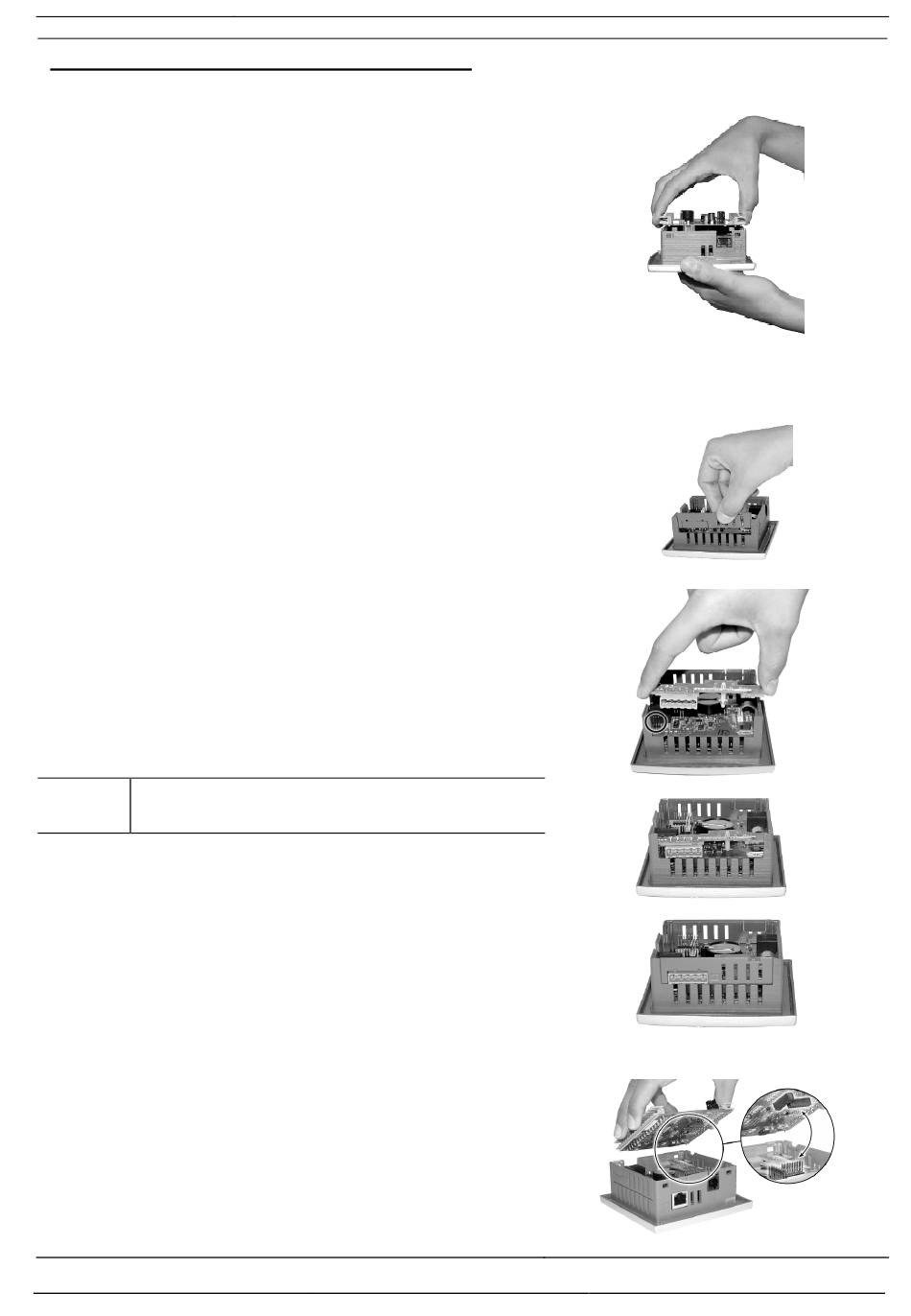

Installation in a V130/V350/SM35 controller

Opening the Controller
1. Turn off the power supply, disconnect,
and dismount the controller.
2. The back cover of the controller
comprises 4 screws, located in the
corners. Remove the screws, and pull off
the back cover.
3. Hold the I/O PCB board by its top and
bottom connectors and steadily pull the
board off.
Note that if you are installing both a V100-17-CAN, V100-S-CAN module and either V100-17-RS4/X
or V100-17-ET2, V100-S-ET2 or V100-17-PB1 modules, you should install the V100-17-RS4/X
or V100-17-ET2, V100-S-ET2 or V100-17-PB1 modules first.

Installing V100-17-CAN, V100-S-CAN

1. Remove the plastic tab marked X.
2. Plastic tab X comprises a cutout that covers the
CANbus port location. Snip through the cutout
holders and remove the cutout.
3. On the V100-17-CAN, V100-S-CAN, locate the:
- white plastic pin. The main board comprises
an insertion point for this pin.
- 6-pin female CANbus connector.The main
board comprises a male 6-pin CANbus connector.
4. Insert the module as shown in the accompanying
figure.
Make certain that the pins fit correctly into their
Caution
matching receptacle.
5. When the module is properly installed in the
controller, it is held in place by the white plastic pin.
6. Replace the plastic tab marked X and then
close the controller as shown below.
Note that in order to remove the module; you
must compress the ends of the white pin with a
pair of pliers while pulling the module out of the
controller.

Closing the controller

1. Replace the I/O board.
2. Close the controller by snapping the plastic
cover back in its place. If the card is placed
correctly, the cover will snap on easily.
3. Replace the screws in the corners of the back cover.
2
