Premier Mounts CONVERGENT SAM-IFJ Series Installation Manual

Video wall mount for samsung ifj led cabinets

Advertisement

Quick Links

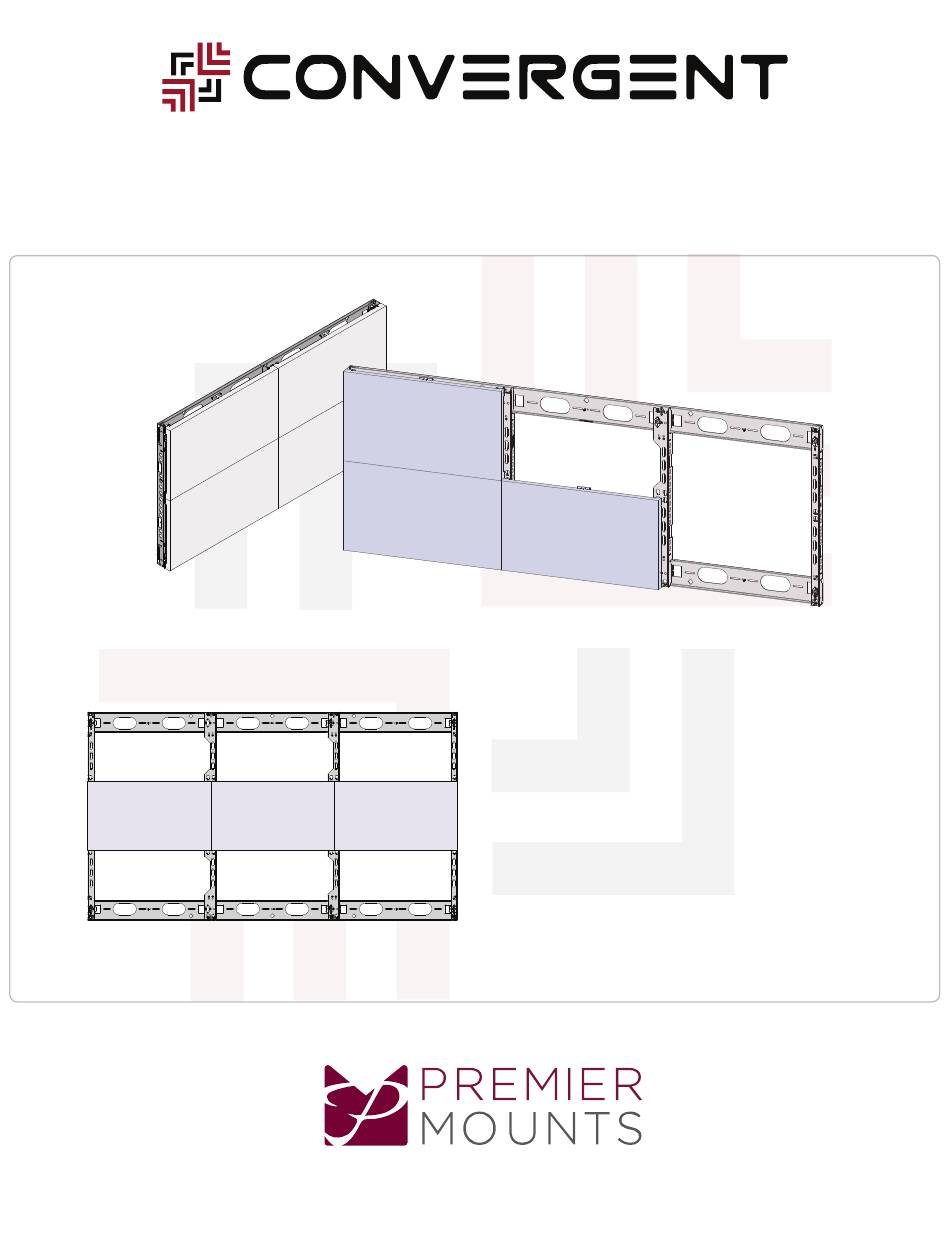

SERIES: SAM-IFJ
INSTALLATION GUIDE
Convergent Series Video Wall Mount
For Samsung IFJ LED Cabinets
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
9500254 v1.1
2620 Palisades Drive, Corona, CA 92882 USA
publ. 01/24/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the CONVERGENT SAM-IFJ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Premier Mounts CONVERGENT SAM-IFJ Series

  • Page 1 SERIES: SAM-IFJ INSTALLATION GUIDE Convergent Series Video Wall Mount For Samsung IFJ LED Cabinets www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100 9500254 v1.1 2620 Palisades Drive, Corona, CA 92882 USA publ. 01/24/19...
  • Page 2: Caution Statements

    4. ALL LED CABINETS MUST BE POWER ON TESTED PRIOR TO ANY INSTALLATION. 5. PREMIER MOUNTS RECOMMENDS THE HANDLING LED CABINETS BY AN INDUSTRY QUALIFIED PROFESSIONAL. 6. PREMIER MOUNTS IS NOT RESPONSIBLE FOR DEFECTS, MISUSE, OR IMPROPER HANDLING OF THE LED CABINETS. Tools for Installation: 00.0...
  • Page 3 SAM IFJ - Installation Guide VIDEO WALL DIMENSIONS AND MOUNTING LOCATIONS LASER LEVEL The overall dimensions of any video wall array can be Available Imperial Metric calculated by using the table within this page. Sizes (Inches) (Milimeters) 1 Wide 31.718 805.6 The desired array size is a combination of available sizes.
  • Page 4 - SAM IFJ Installation Guide ITEM #. PART NO. DESCRIPTION 4000-300-531-LX Vertical Left End Rail 3V 4000-300-501-LX Horizontal Rail 1H 4000-300-532-LX Vertical Center Rail 3V 4000-300-502-LX Horizontal Rail 2H 4000-300-533-LX Vertical Right End Rail 3V 4000-300-503-LX Horizontal Rail 3H 4000-300-541-LX Vertical Left End Rail 4V 4000-300-511-LX Vertical Left End Rail 1V...
  • Page 5: Pre-Installation

    SAM IFJ - Installation Guide PRE-INSTALLATION Floating Adjustment Assembly Identifier for the (or “Floaters”) top or bottom horizontal rail UNUSED M6 x 35mm Socket Screw Nylon Washer Steel Washer FLOATER LOCATION Even array - e.g. 6 Wide M5 x 10mm Comb Screw Odd array - e.g.
  • Page 6 - SAM IFJ Installation Guide METHOD 1 Install the Vertical and Horizontal Rails together using (4) M5x 8mm Flat Head Screw per. Horizontal Rail M5 x 8mm Flat Head Vertical Rail (center) 1. Determine the desired location by calculating the height of the pre-mounting hang location using the table on page 3.
  • Page 7 SAM IFJ - Installation Guide 1. Place a level on top of the mount and reinstall or adjust the support screws if necessary. 2. Secure the first mounting location by sliding a Wall Anchor Plate behind the mount and fasten using 1/4”...
  • Page 8 - SAM IFJ Installation Guide METHOD 2 LASER / LEVEL WALL WALL 00.0 Wall Anchor Plate Wall Anchor Plate 1. Install (2) 1/2”-13 x 1.5” Bolt with Hole onto the threaded extrusion. 2. Hang the first Horizontal Rail on the wall. 3.
  • Page 9 SAM IFJ - Installation Guide ASSEMBLE THE LOWER SECTION OF THE MOUNT 1. Securely fasten each Vertical Rail to a mounted Horizontal Rail using (2) M5 x 8mm Flat Head Screw per end. 2. Fasten the Lower Horizontal Rail but do not anchor until the mount is perfectly square. See sequential step.
  • Page 10 - SAM IFJ Installation Guide Multiple Unit Configuration Extend Horizontally To extend the width of the unit, follow the steps below. 1. Hang and position the second Horizontal Rail side by side. 2. Place a support screw while maintaining a leveled horizontal rail to temporary hold in place. 3.
  • Page 11 SAM IFJ - Installation Guide Multiple Unit Configuration Extend Vertically To extend the height of the unit, follow the steps below. 1. Position multiple units adjust to each other. 2. Joint the units together using multiple Attachment Plate and fasten using (2) M5 x 8mm Flat Head Screw per.
  • Page 12 - SAM IFJ Installation Guide SQUARE AND LEVEL Inspect each bracket using a Square and Level tool. Page 12 www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100...
  • Page 13 SAM IFJ - Installation Guide FINETUNE THE HORIZONTAL AND VERTICAL RAIL 1. Install whereever necessary. 2. Use multiple drywall or wood screws to bring the bracket closer to the wall. 3. Use multiple M5 x 0.5 tapped screws to bring the brackets away from the wall. 0.281”...
  • Page 14: Very Important

    - SAM IFJ Installation Guide VERY IMPORTANT! VERIFYING THE DIAGONAL MEASUREMENTS FOR SQUARENESS Distance 1 The two diagonal measured distances 1/8” min. gap must match Clearance Distance 2 1. Measure the distance from corner to corner INSTALL THE LOWER with a measuring tape. MOUNTING LOCATIONS 2.
  • Page 15 SAM IFJ - Installation Guide FINAL ALIGMENT AND ADJUSTMENT 1. Tie a string from one end to the other end of the entire array. 2. Tie horizontally and crisscross, especially for large video wall array. 3. Inspect for any gaps between the brackets and the string. 4.
  • Page 16 - SAM IFJ Installation Guide Adjustments Uneven wall surfaces can be adjust by turning the Flush Bolt. Up / Down 1/8” min. gap Clearance In / Out Page 16 www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100...
  • Page 17 SAM IFJ - Installation Guide NOTES: If using the additional slots for mounting points, make sure that the floating frame is fully level to the wall vertically and horizontally. Must use shims (commercially available) on every slots being used to fill the void between the wall and the frame. Avoid over tightening the screws as this would make the floating frame uneven.
  • Page 18 - SAM IFJ Installation Guide SAMSUNG IFJ LED DISPLAY INSTALLATION MANUAL must be read in conjunction with the recommended steps below. LED Cabinets to be handled by industry qualified professional. Improper installation may cause damage to the LEDs. 1. Install the first LED Cabinet from the center bottom row of the mount.
  • Page 19 2. Slowly slide the Gap-It tool away from the LED Cabinets while lowering into place. See Figure 2. PREMIER MOUNTS IS NOT RESPONSIBLE FOR ANY IMPROPER HANDLING OF THE LED CABINETS. Cautionary Advice: Do not damage the Figure 2 LEDs when lowering.
  • Page 20 - SAM IFJ Installation Guide IMPORTANT: SECURE THE LED MODULES The LEDs must be perfectly installed without any noticeable seams, black bars, or imperfection of the LED modules. Modules must be in locked position before moving forward. 1. Install the PET Sheet around the boundary of the entire video wall array as shown below.
  • Page 21 1. Products must be packed securely to insure no further damage upon arrival at Premier Mounts\PDS. Improperly packaged items will be considered non-warranty. 2. Line rejects must be shipped to Premier Mounts\PDS in a separate box using a separate RMA number from any field rejects.
