SERIES: UNI-UPS-A

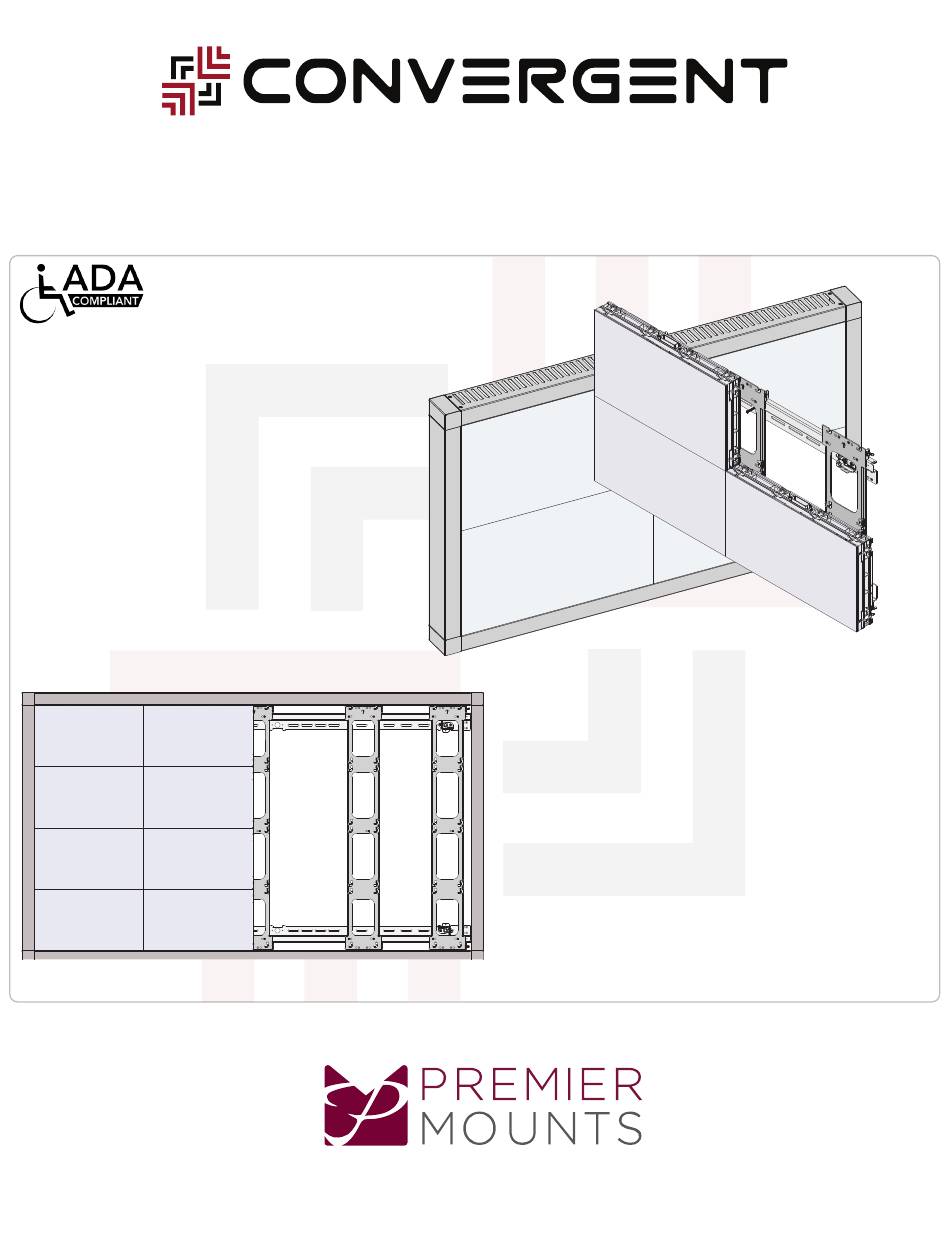

INSTALLATION GUIDE
Convergent Series Video Wall Mount (ADA Series)
For Unilumin UPS LED Cabinets
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
9500359 v1.2
2620 Palisades Drive, Corona, CA 92882 USA
publ. 04/01/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the Convergent Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Premier Mounts Convergent Series

  • Page 1 SERIES: UNI-UPS-A INSTALLATION GUIDE Convergent Series Video Wall Mount (ADA Series) For Unilumin UPS LED Cabinets www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100 9500359 v1.2 2620 Palisades Drive, Corona, CA 92882 USA publ. 04/01/20...
  • Page 2: Caution Statements

    5. ALL LED CABINETS MUST BE POWER ON TESTED PRIOR TO ANY INSTALLATION. 6. PREMIER MOUNTS RECOMMENDS THE HANDLING LED CABINETS BY AN INDUSTRY QUALIFIED PROFESSIONAL. PREMIER MOUNTS IS NOT RESPONSIBLE FOR DEFECTS, MISUSE, OR IMPROPER HANDLING OF THE LED CABINETS. Tools for Installation: 00.0...
  • Page 3 UNI-UPS-A - Installation Guide VIDEO WALL DIMENSIONS AND MOUNTING LOCATIONS 1.878” [47.7mm] 3.15” (80mm) Pre-Mounting Hang Location LASER LEVEL Notes: Use the dimension above to calculate the position of the upper-most horizontal rail for mounting purposes. Available Imperial Metric The overall dimensions of any video wall array can be Size (Inches) (Milimeters)
  • Page 4 - UNI-UPS-A Installation Guide ITEM #. PART NO. DESCRIPTION 4000-307-032-LX Vertical Rail 2V 4000-307-042-LX Horizontal Rail 2H 4000-307-033-LX Vertical Rail 3V 4000-307-043-LX Horizontal Rail 3H 4000-307-034-LX Vertical Rail 4V 4000-307-044-LX Horizontal Rail 4H 4000-307-035-LX Vertical Rail 5V 4000-307-036-LX Vertical Rail 6V 2 HIGH 3 HIGH 4 HIGH...
  • Page 5: Pre-Installation

    UNI-UPS-A - Installation Guide PRE-INSTALLATION STANDARD MOUNTING PROCEDURE Horizontal Rail 1. Attach the Adjustment Bracket to every 5/8”-11 x 1.5” mounting location (Horizontal Rail) prior to the Bolt With Hole installation of the mount, as shown. 2. Loosely fasten the M6 x 35mm Socket Head M5 x 8mm to the bracket.
  • Page 6 - UNI-UPS-A Installation Guide METHOD 1 Install the Vertical and Horizontal Rails together using (4) M5x 6mm Flat Head Screw per. Horizontal Rail Vertical Rail M5 x 6mm Flat Head *shown using 2X2 configuration 1. Determine the desired location by calculating the height of the pre-mounting hang location using the table on page 3.
  • Page 7 UNI-UPS-A - Installation Guide 1. Place a level on top of the mount and reinstall or adjust the support screws if necessary. 2. Secure the first mounting location by sliding a Wall Anchor Plate behind the mount and fasten using 5/16” x 3” Hex Lag and 5/16” Washer. 3.
  • Page 8 - UNI-UPS-A Installation Guide METHOD 2 LASER / LEVEL WALL WALL 00.0 Wall Anchor Wall Anchor Plate Plate Mounting location can be installed on either side 1. Install 5/16”-11 Bolt with Hole onto the threaded extrusion. 2. Hang the first Horizontal Rail on the wall. 3.
  • Page 9 UNI-UPS-A - Installation Guide ASSEMBLE THE LOWER SECTION OF THE MOUNT 1. Securely fasten each Vertical Rail to a mounted Horizontal Rail using (2) M5 x 6mm Flat Head Screw per end. 2. Fasten the Lower Horizontal Rail but do not anchor until the mount is perfectly square. See sequential step.
  • Page 10 - UNI-UPS-A Installation Guide Multiple Unit Configuration Extend Horizontally To extend the width of the unit, follow the steps below. 1. Hang and position the second Horizontal Rail side by side. 2. Place a support screw while maintaining a leveled horizontal rail to temporary hold in place. 3.
  • Page 11 UNI-UPS-A - Installation Guide Multiple Unit Configuration Extend Vertically To extend the height of the unit, follow the steps below. 1. Position multiple units adjust to each other. 2. Join the units together using multiple Connector Brackets (per rail) and fasten using (4) M5 x 6mm Flat Head Screw per.
  • Page 12 - UNI-UPS-A Installation Guide SQUARE AND LEVEL Inspect each bracket using a Square and Level tool. Page 12 www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100...
  • Page 13 UNI-UPS-A - Installation Guide FINETUNE THE RAIL FOR FLATNESS Available on 4 to 6 High Verticals and on 2 Wide Horizontal Towards Against the wall the wall Ø 1/4” hole Bowing M5 x 0.5mm Rail tapped hole Shown using 3 High Vertical Rail 1.
  • Page 14: Very Important

    - UNI-UPS-A Installation Guide VERY IMPORTANT! VERIFYING THE DIAGONAL MEASUREMENTS FOR SQUARENESS Distance 1 The two diagonal measured distances must match Distance 2 1. Measure the distance from corner to corner with a measuring tape. 2. Measure diagonally opposite and verify the diagonal measurements. 3.
  • Page 15 UNI-UPS-A - Installation Guide FINAL ALIGMENT AND ADJUSTMENT 1. Tie a string from one end to the other end of the entire array. 2. Tie horizontally and crisscross, especially for large video wall array. 3. Inspect for any gaps between the brackets and the string. 4.
  • Page 16: Level Adjustment

    - UNI-UPS-A Installation Guide LEVEL ADJUSTMENT LASER / LEVEL Up / Down Adjust the level by loosen or tighten the screw located on either the top OR bottom corner location of the mount. NOTES: If using the additional slots for mounting points, make sure that the floating frame is fully level to the wall vertically and horizontally.
  • Page 17 UNI-UPS-A - Installation Guide UNILUMIN UPANELS LED DISPLAY INSTALLATION MANUAL must be read in conjunction with the recommended steps below. LED Cabinets to be handled by industry qualified professional. Improper installation may cause damage to the LEDs. 1. Mount the LED Cabinets starting from bottom to upper row, then left to right column.
  • Page 18 1. Products must be packed securely to insure no further damage upon arrival at Premier Mounts\PDS. Improperly packaged items will be considered non-warranty. 2. Line rejects must be shipped to Premier Mounts\PDS in a separate box using a separate RMA number from any field rejects.
