Premier Mounts CTM-MS1 Installation Instructions Manual

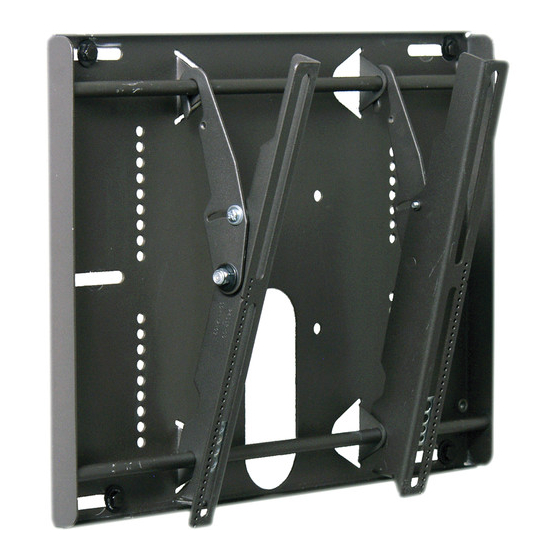

Flat panel display mount (26” to 37”)
Hide thumbs
Also See for CTM-MS1:
- Installation instructions manual (14 pages) ,
- Installation manual (10 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Quick Links
NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044
©Premier Mounts 2008
9531-000-301-03
INSTALLATION INSTRUCTIONS
Flat Panel Display Mount (26" to 37")
USA and Canada –
Phone: 800-368-9700
Fax: 800-832-4888
CTM-MS1
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Premier Mounts CTM-MS1
Summary of Contents for Premier Mounts CTM-MS1
-
Page 1: Installation Instructions
Anaheim, CA 92806 USA Shilton Industrial Estate, USA and Canada – Shilton, Coventry, England CV79JY Phone: 800-368-9700 Phone: +44 (0) 2476 614700 Fax: 800-832-4888 Fax: +44 (0) 2476 614710 Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044 ©Premier Mounts 2008 9531-000-301-03... -
Page 2: Table Of Contents
DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS... -
Page 3: Parts List
This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800-368-9700). Mounting... - Page 4 CTM-MS1 (Qty 6) (Qty 6) M6 x 20 M4 x 16 (Qty 6) M4 x 20 M6 x 30 (Qty 2) (Qty 6) M4 x 25 (Qty 6) M5 x 16 (Qty 6) M5 x 20 (Qty 6) M5 x 25...
- Page 5 CTM-MS1 Nylon spacers and flat washers actual size NOTE: The nylon spacers may be staked to achieve proper spacing. 1/2" Nylon spacers (large) (Qty 6) 5/16" Flat washers (metal) (Qty 6) 1/4" Nylon spacers (Qty 6) Installation Manual Page - 5 -...
- Page 6 CTM-MS1 Thread Depth Indicator Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure the inserts measure the same full depth and mark it. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
-
Page 7: Mounting Bracket Installation
CTM-MS1 Mounting Bracket Installation Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the flat panel. Invert the flat panel place it on a soft, flat surface to prevent damage to the flat panel. Use a blanket, foam, etc. Failure to do so will result in damaging the flat panel. - Page 8 CTM-MS1 Left Mounting Bracket Nylon Spacers Right Mounting Bracket Bottom of Flat Panel Inverted Flat Panel Center Mark Arrows Facing Step 3. Install the nylon spacers (if needed) to the mounting Step 4. Lay the left and right mounting brackets (stamped points on the flat panel.
-
Page 9: Securing The Mounting Brackets
CTM-MS1 Securing the Mounting Brackets Dimples The Griplate™ have M4, M5 M6 and M8 hole patterns to fit the hardware that your flat panel requires. EXAMPLE: If your plasma uses M8 x 20 Phillip screws, use the M8 mounting points. -
Page 10: Ctm-Ms1 Installation
CTM-MS1 CTM-MS1 Installation Mark the wall Wood Stud Finder and the center (Commercially available) of the wood studs. 16" 16" Measure and mark the viewing height desired on the wall. Wood studs behind the wall structure. Step 1. Using a (commercially available) wood stud finder, Step 2. - Page 11 CTM-MS1 Mark the six (6) mounting slot openings 16" Wall Plate Step 4. Level the wall plate with the reference arrow pointing up to the ceiling. Step 5. Drill six (6) ¼" pilot holes to the marked wall. Wall Plate 5/16”...
-
Page 12: Installing The Flat Panel Display
CTM-MS1 Installing the Flat Panel Display AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL. Bottom Step 1. Raise the flat panel with the LEFT and RIGHT mounting brackets secured to the flat panel and insert the top hooks over the upper rod. - Page 13 CTM-MS1 Step 2. Make any lateral shift adjustment and lock it by tightening the two (2) M6 x 30mm Phillips screws found on the bottom of the mounting brackets. Use the foot leveler to adjust your plasma. Do not over tighten the M6 x 30mm screws to the rods.
- Page 14 CTM-MS1 Step 3. Tilt the flat panel and secure the two (2) M6 x 12mm safety knobs to each of the mounting brackets. To remove the display from the wall simply extend the display to its maximum tilt range, remove the two 6 (mm) safety knurl knobs push the flat panel back to it’s flat position, loosen or remove the two (2) M6 x 30 lateral shift...
-
Page 15: Technical Specifications
CTM-MS1 Technical Specifications 20.00 0 (50 8) 16.00 0 (406 .4) 7.100 (180 .3) 15.50 0 (393 .7) 7.100 (180 .3) 15 .50 0 (393 .7) Installation Manual Page 15... -
Page 16: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
