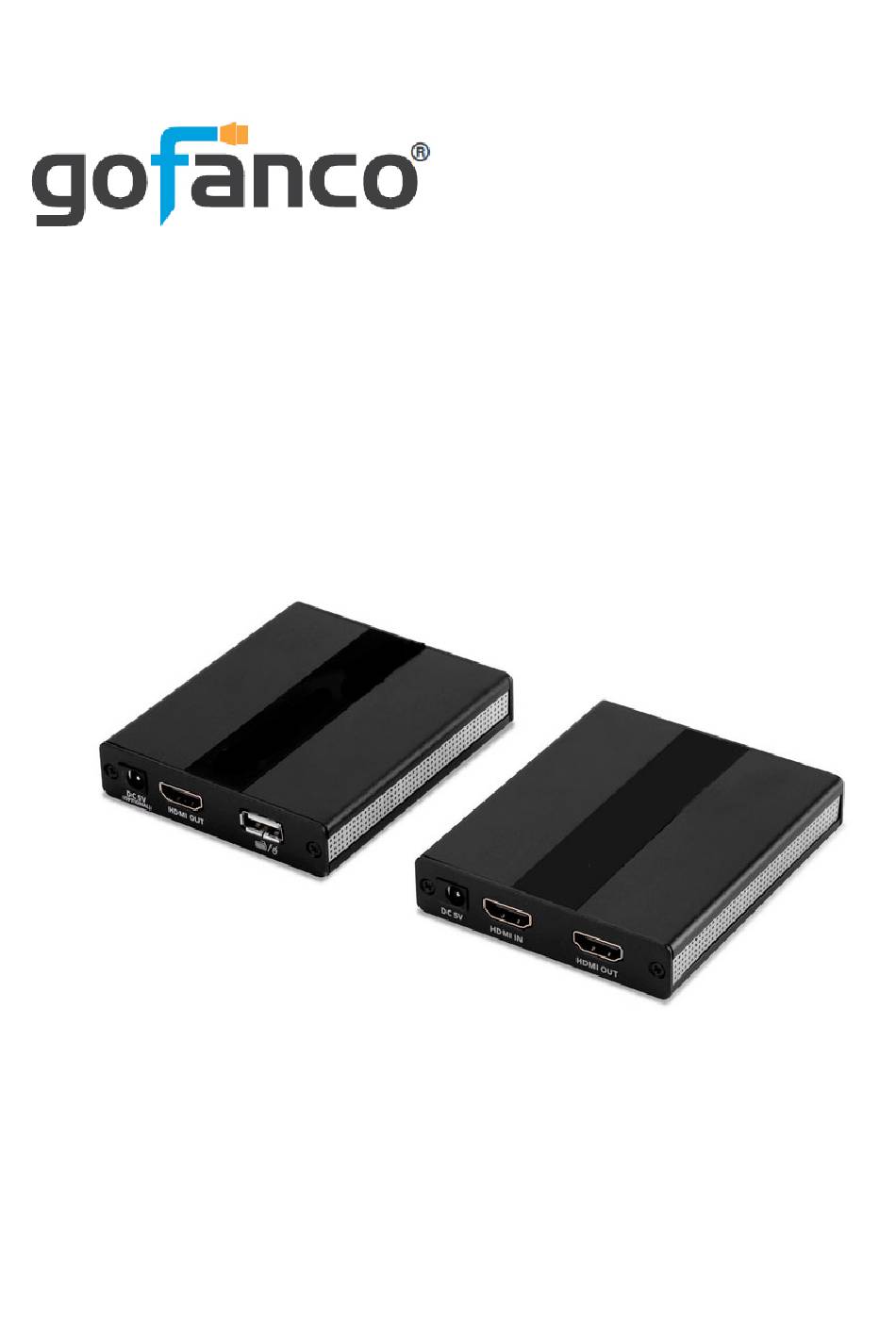

- Page 1 HDMI USB KVM CAT5e/6 Extender - 60m User's Guide P/N: KVMHDExt G4-0070A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports • Use the included DC5V power adapter only.
- Page 4 Introduction The HDMI USB KVM CAT5e/6 Extender - 60m extends HDMI and USB signals up to 60 meters (197ft) over a single CAT6 cable (50 meters with CAT5e). Features • Supports Full HD 1080p with nearly zero latency • KVM extension with 2 USB ports to control the source device, such as a PC, at a remote location •...
-
Page 5: Product Layout
Product Layout Figure 1: Transmitter (TX) Reset Button Press to reset the Transmitter (TX) unit Off: No PC connection USB Indicator Slow flashing: No USB device(s) detected on the RX unit On/Fast flashing: USB device(s) detected on the RX unit USB Port Connects to the computer's USB port RJ45 Out... -
Page 6: Hardware Installation
Figure 2: Receiver (RX) Reset Button Press to reset the Receiver (RX) unit Off: No power detected or RJ45 not linked properly to Transmitter (TX) USB Indicator On/Fast flashing: USB device(s) detected Slow flashing: No PC connection or no USB device(s) detected USB Port Connects to keyboard or mouse RJ45 In... - Page 7 Optional: Connect an HDMI display to the Transmitter's HDMI out connector with an HDMI cable (HDMI cable not included) for local monitoring of the HDMI signal. Plug your CAT5e/6 cable between the Transmitter's RJ45 Output and Receiver's RJ45 Input. Connect your HDMI display to the Receiver's HDMI out connector with an HDMI cable (HDMI cable not included).
-
Page 8: Application Diagram
CAT Cable Wiring We suggest both RJ-45 connectors be wired identically following T568B wiring standard for the best performance and compatibility Application Diagram... - Page 9 FAQ & Solutions There is no video output or video is not normal: 1) Check all cable connections. 2) Press reset button on the Transmitter and Receiver units. The Link LED is flashing: 1) Make sure the network cable follows the IEEE-T568B wiring standard.
-
Page 10: Specifications
Specifications HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.4 720x576p@50Hz, 720x480p@60Hz, 1280x720p@60Hz, 1920x1080p@60Hz, 640x480p@60Hz, 800x600p@60Hz, Resolution 1024x768p@60Hz, 1280x800p@60Hz, 1280x1024p@60Hz, 1440x900p@60Hz, 1680x1050p@60Hz Bandwidth 10.2 Gb/s Input and Output TMDS 0.5 - 1.5Vp-p (TMDS) Signal Input and Output DDC 5Vp-p (TTL) signal CAT5e: 50 meters Transmission Distance CAT6: 60 meters... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
