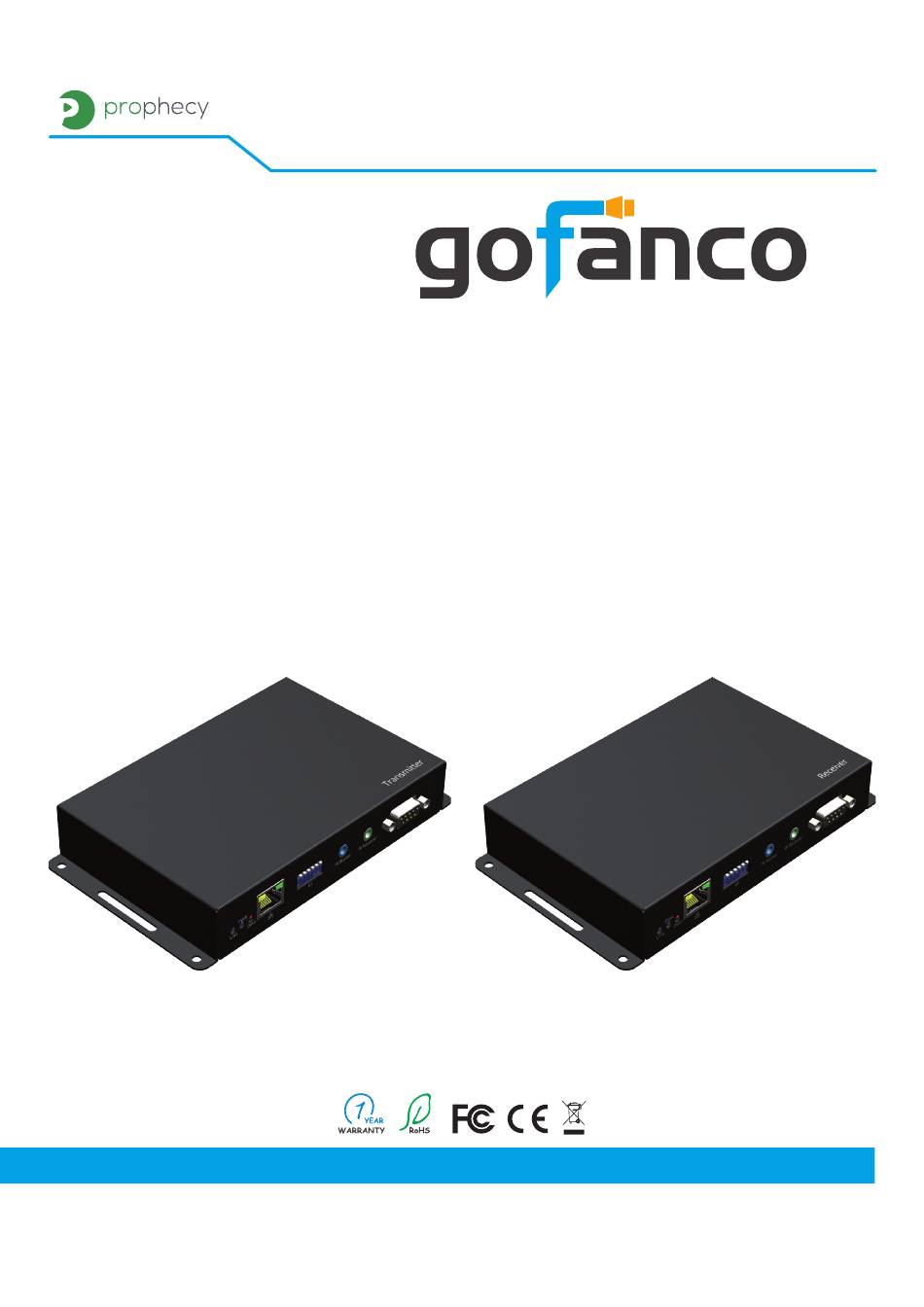

- Page 1 ® PRO-HDExtIP-TX PRO-HDExtIP-RX 4K HDMI over IP extender(TX/RX) with POE User‘s Guide PRO-HDExtIP-RX PRO-HDExtIP-TX Made in Taiwan...
- Page 2 ® PRO-HDExtIP-TX PRO-HDExtIP-RX Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
- Page 3 ® PRO-HDExtIP-TX PRO-HDExtIP-RX 1. Introduction The PRO-HDExtIP-TX/RX HDMI2.0 over IP Multicast System with Video Wall support & PoE support boosts up your video/audio transmission distance up to 120m(396ft) in UHD 4K2K format. With cost effective Ethernet cable, users can readily extend UHD sources from DVD players, Blu-ray Disc player, PS3, PC, and any other HDMI sources broadcasting to distant display monitors in- cluding HDMI or DVI enabled TV sets or LCD PC monitors.
- Page 4 ® PRO-HDExtIP-TX PRO-HDExtIP-RX 2. Features • Supports HDMI input up to 4K2K@60 4:4:4 8bits • Supports HDMI output up to 4K2K@30 RGB • Supports High Dynamic Range (HDR) • HDMI 2.0a, HDCP 2.2 compliant • Supports PoE (Power over Etherent) •...
-
Page 5: Specifications
® PRO-HDExtIP-TX PRO-HDExtIP-RX 4. Specifications Item Description Technical PRO-HDExtIP-TX PRO-HDExtIP-RX HDMI compliance HDMI HDCP compliance Up to 4K2K@60 (4:4:4 8bits) Input Video support Output Video sup- Up to 4K2K@30 (RGB) port 2 frames (33 ms) maximum Latency HDMI over UTP Ultra HD (4K2K60)-120m (396ft) [CAT.X] transmission [24-bit] Surround sound (up to 7.1ch) or stereo digital audio... - Page 6 ® PRO-HDExtIP-TX PRO-HDExtIP-RX Mechanical PRO-HDExtIP-TX PRO-HDExtIP-RX Housing Metal enclosure 170 x 101 x 29mm 170 x 101 x 29mm Model [6.7“ x 3.9“ x 1.1“] [6.7“ x 3.9“ x 1.1“] Dimensions 198 x 137 x 74mm 198 x 137 x 74mm Package [7.8"...
-
Page 7: Connection Diagram
® PRO-HDExtIP-TX PRO-HDExtIP-RX 5. Connection Diagram... -
Page 8: Panel Description

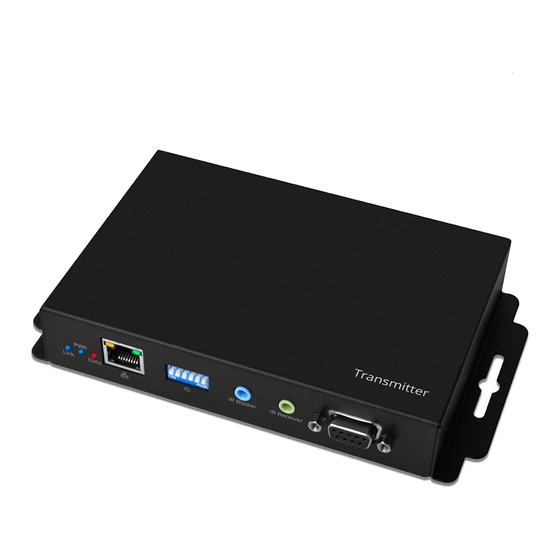

® PRO-HDExtIP-TX PRO-HDExtIP-RX 6. Panel Description PRO-HDExtIP-TX Front Panel 1. USB: Connect to upstream USB host 2. HDMI loopout: Connects to a HDMI display with a HDMI male-male cable. 3. HDMI IN: Connects to a HDMI source with a HDMI male-male cable 4. - Page 9 ® PRO-HDExtIP-TX PRO-HDExtIP-RX 8. Info LED indicator: When user click the LED button from software, the LED light will blink 30 seconds. 9. RJ-45: Gigabit Ethernet port 10. Dip Switch: Video channel selection 11. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster 12.
- Page 10 ® PRO-HDExtIP-TX PRO-HDExtIP-RX PRO-HDExtIP-RX Front Panel 1. USB(USB 2.0 downstream port): Connect to USB flash driver or other USB devices 2. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable 3. HDMI IN: Connects to a HDMI source with a HDMI male-male cable 4.
- Page 11 ® PRO-HDExtIP-TX PRO-HDExtIP-RX 8. Info LED indicator: When user click the LED button from software, the LED light will blink 30 seconds. 9. RJ-45: Gigabit Ethernet port 10. Dip Switch: Video channel selection 11. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster 12.
- Page 12 ® PRO-HDExtIP-TX PRO-HDExtIP-RX Notes: TX/RX group ID dip-switch setting...
-
Page 13: Ir Pass-Through
® PRO-HDExtIP-TX PRO-HDExtIP-RX 7. IR Pass-Through IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR recei- ver from the other end to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote con- trols of the corresponding devices. -
Page 14: Limited Warranty
® PRO-HDExtIP-TX PRO-HDExtIP-RX 8. Limited Warranty The SELLER warrants the PRO-HDExtIP-TX/RX HDMI2.0 over IP Multicast System with Video Wall support & PoE free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an au- thorized dealer. - Page 15 ® PRO-HDExtIP-TX PRO-HDExtIP-RX Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 16 ® Thank you for choosing gofanco www.gofanco.com Jun, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
