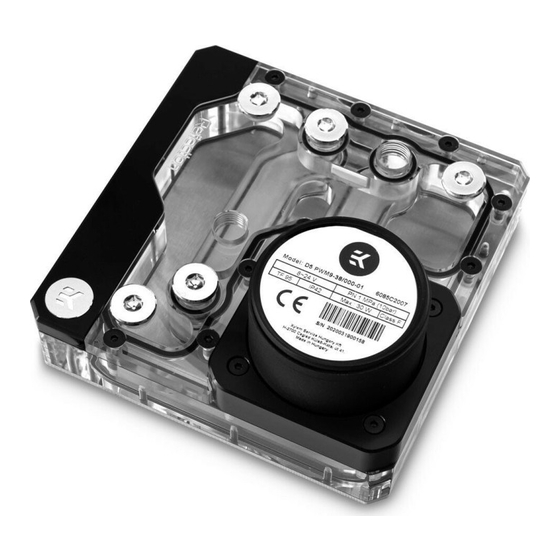

- Page 1 EK-Quantum Reflection Uni 140 D5 PWM D-RGB USER GUIDE...
- Page 2 The EK fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system. EKWB recommends any of the EK-Cryofuel for worry-free usage.
-
Page 3: Table Of Contents
TABLE OF CONTENT BOX CONTENTS MOUNTING INFORMATION INSTALLING EK-QUANTUM REFLECTION UNI 140 D5 PWM D-RGB RECOMMENDED CONFIGURATIONS CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Bag content: Bag content is universal, you may not need all screws. M4 x 8 Screw DIN7984 (5 pcs) M4 PVC Washer (5 pcs) EK-Quantum Reflection Uni 140 Allen Key 2.5 mm (1 pc) EK-Loop Multi Allen Key D5 PWM D-RGB - 4 -... -
Page 5: Mounting Information
MOUNTING INFORMATION The Reflection UNI 140 can be mounted to any standard 140mm mount (125x125mm) using the supplied M4 screws. However, it must always be mounted vertically, to assist with filling and bleeding it is optimal to keep the pump in the lowest possible position as shown here: Never mount or operate EK-Quantum Reflection UNI 140 D5 PWM D-RGB horizontally as this would allow air to accumulate in... -
Page 6: Installing Ek-Quantum Reflection Uni 140 D5 Pwm D-Rgb
INSTALLING EK-QUANTUM REFLECTION UNI 140 D5 PWM D-RGB Using the included M4 screws you can mount the Reflection UNI 140 EK-Quantum directly to your chassis or any other 140mm fan mounting location. Lian Li DK-05F Desk Reflection UNI 140 D5 PWM D-RGB... -
Page 7: Recommended Configurations
NOT USABLE install all EK fittings, do not use excessive force. All unused ports should be blocked using G1/4 plugs. FILL Using EK-Quantum Reflection UNI 140 D5 PWM D-RGB as a PUMP/RES Combo: OUTLET FILL When using the Reflection UNI 140 as a pump/res combo in any... - Page 8 Using EK-Quantum Reflection UNI 140 D5 PWM D-RGB as a INLET A distribution plate: If components will only be connected to 2 of the ports, please FILL observe pump/res combo configurations! OUTLET A There are 2 sets of Inlet and Outlet ports (A and B) that are linked...
- Page 9 OUTLET B FILL OUTLET A FILL INLET B INLET A INLET B/DRAIN FILL INLET A INLET B FILL OUTLET B OUTLET A INLET B / DRAIN - 9 -...
-
Page 10: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. D-RGB Header RGB Header CONNECTING THE PUMP... -
Page 11: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 12: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
