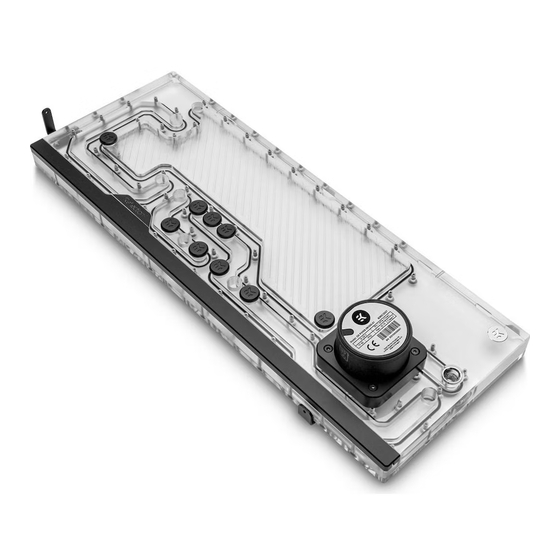

ekwb EK-Quantum Reflection2 Fractal XL D5 PWM D-RGB User Manual
Distribution plate
Hide thumbs
Also See for EK-Quantum Reflection2 Fractal XL D5 PWM D-RGB:
- User manual (15 pages) ,
- User manual (17 pages) ,
- User manual (15 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ekwb EK-Quantum Reflection2 Fractal XL D5 PWM D-RGB
Summary of Contents for ekwb EK-Quantum Reflection2 Fractal XL D5 PWM D-RGB
- Page 1 EK-Quantum Reflection Fractal XL D5 PWM D-RGB DISTRIBUTION PLATE USER GUIDE...
- Page 2 The EK Fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system. EKWB recommends any of the EKCryofuel for worry-free usage.
-
Page 3: Table Of Contents
TABLE OF CONTENT BOX CONTENTS DISTRIBUTION PLATE DIMENSIONS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS PREPARING THE FRACTAL XL CHASSIS INSTALLING THE DISTRIBUTION PLATE RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS INSTALLING THE RADIATORS AND FANS ATTACHING THE PUSH-IN ADAPTER (OPTIONAL) FLOW DIAGRAM CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE... -
Page 4: Box Contents
BOX CONTENTS Mounting Mechanism EAN: 105682 Screw M3 x 8 DIN7984 (3 pcs) Screw M3 x 5 DIN7984 (1 pc) EK-Loop Multi Allen Key Allen Key 2 mm (1 pc) EK-Quantum Reflection Fractal XL D5 PWM D-RGB - 4 -... -
Page 5: Distribution Plate Dimensions
DISTRIBUTION PLATE DIMENSIONS 183.00 mm 163.5 mm 135.5 mm 101.5 mm 72.5 mm 120.5 mm 67.5 mm 81.5 mm 62.5 mm 34.5 mm 28 mm 74 mm - 5 -... -
Page 6: Technical Specifications And Product Parts
TECHNICAL SPECIFICATIONS AND PRODUCT PARTS Technical Specification: - Dimensions with the attached pump (W x D x H): 183 x 74 x 490 mm - D-RGB LED count: 27 - D-RGB cable length: 600 mm - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity... -
Page 7: Preparing The Fractal Xl Chassis
PREPARING THE FRACTAL XL CHASSIS Before installing the distribution plate, carefully read the PC case manual. STEP 1 First, remove the front, side, and top panels from the PC case. STEP 1 STEP 2 REMOVE Unscrew the 4 (four) marked factory screws and remove the HDD panel. -
Page 8: Installing The Distribution Plate
INSTALLING THE DISTRIBUTION PLATE STEP 1 Carefully place the EK-Quantum Reflection Fractal XL D5 PWM D-RGB distribution plate into the PC case and align the mounting holes. STEP 1 STEP 2 Secure the distribution plate to the chassis with three (3) M3 x 8 DIN7984 and one (1) M3 x 5 DIN7984 screw (as shown in the diagram). -
Page 9: Recommended Distribution Plate Configurations
RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS To complete your loop, all ports must be used as marked in the image. TOP RADIATOR All remaining unused ports must be closed with supplied plugs, INLET using the EK-Loop Multi Allen Key. FILL TOP RADIATOR If one of the prescribed components will not be installed OUTLET (ie. - Page 10 FILL (EXTERIOR) DRAIN (EXTERIOR) - 10 -...
-
Page 11: Installing The Radiators And Fans
INSTALLING THE RADIATORS AND FANS With the EK-Quantum Reflection Fractal XL D5 PWM D-RGB distribution plate, it’s possible to connect the Top Radiator (Up to 480 mm) and Side Radiator (Up to 360 mm). TOP RADIATOR (UP TO 480 mm) SIDE RADIATOR (UP TO 360 mm) While securing the Top radiator with Fans into the PC case, make... -
Page 12: Attaching The Push-In Adapter (Optional)
ATTACHING THE PUSH-IN ADAPTER (OPTIONAL) The push-in adapter can be attached to the marked place in the diagram. For easier installation of the push-in adapters, EK recommends to lubricate the O-rings with a few drops of coolant or water. - 12 -... -
Page 13: Flow Diagram
FLOW DIAGRAM - 13 -... -
Page 14: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. D-RGB Header RGB Header CONNECTING THE PUMP... -
Page 15: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 16: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
