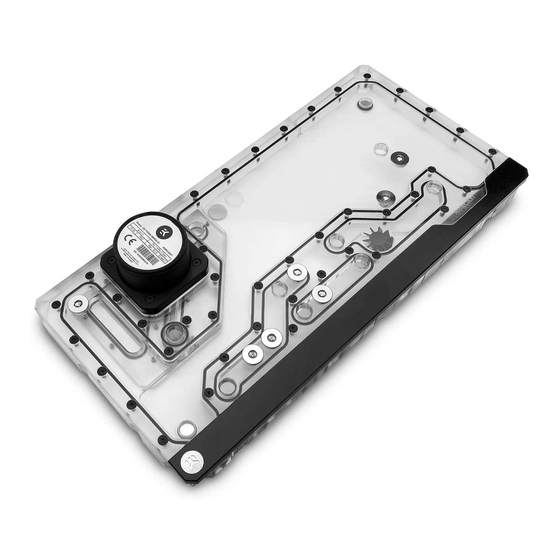

- Page 1 EK-Quantum Reflection PC-O11D D5 PWM D-RGB DISTRIBUTION PLATE USER GUIDE...
- Page 2 The EK Fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system. EKWB recommends any of the EKCryofuel for worry-free usage.
-
Page 3: Table Of Contents
TABLE OF CONTENT BOX CONTENTS PREPARING THE 011D CHASSIS INSTALLING THE DISTRIBUTION PLATE IN THE 011D RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS M3 x 11 7991DIN (2 pcs) M4 x 14 7991DIN (3 pcs) Allen Key 2.5 mm (1 pc) Allen Key 2 mm (1 pc) EK-Quantum Reflection PC-O11D D5 PWM D-RGB EK-Loop Multi Allen Key - 4 -... -
Page 5: Preparing The 011D Chassis
PREPARING THE 011D CHASSIS Before installing the distribution plate, carefully read the PC case manual. STEP 1 Unscrew the factory provided screws and remove the top panel from the case. Factory provided Screws STEP 1 STEP 2 Remove side and the front panel from the case. STEP 2 - 5 -... -
Page 6: Installing The Distribution Plate In The 011D
INSTALLING THE DISTRIBUTION PLATE IN THE 011D STEP 1 Carefully place the EK-Quantum Reflection PC-O11D D5 PWM D-RGB distribution plate into the PC case and align the mounting holes. STEP 1 STEP 2 M4 x 14 DIN7991 Secure the distribution plate to the chassis with three (3) M4 x 14 DIN7991 and two (2) M3 x 11 DIN7991 screws (as shown in the diagram). -
Page 7: Recommended Distribution Plate Configurations
RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS It is mandatory to use at least one of each type of port and all remaining ports should be sealed using the supplied plugs. The EK-Loop Multi Allen Key (6mm, 8mm, 9mm) may be used to install RADIATOR all EK fittings, do not use excessive force. - Page 8 FILL (exterior) DRAIN (exterior) - 8 -...
-
Page 9: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. D-RGB Header RGB Header CONNECTING THE PUMP... -
Page 10: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 11: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
