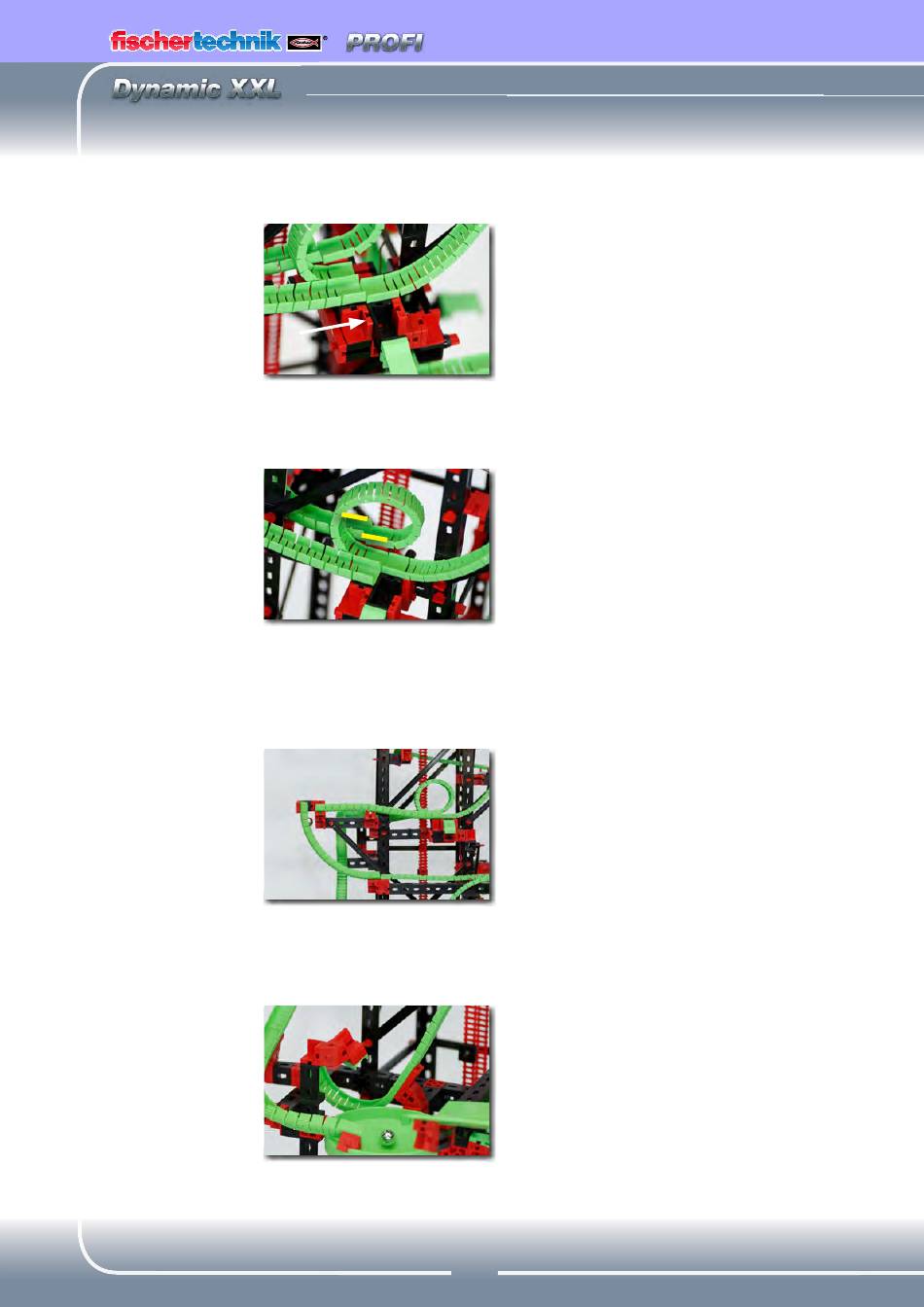

Loop; Jump Loop; Drop With Change Of Direction - fischertechnik PROFI Dynamic XXL Booklet

T i p :
If the slider moves on its own, you
can increase the friction by sliding
the V15 corner building block toward
the angle girder.

Loop

T i p :
The flex-rail profile must be
assembled as shown in the picture
to ensure that balls roll correctly
through the loop. The position of the
long edge at the beginning of the
flex-rail profile and the position of
the high speed flex-rail profile are
important. The long edge is indicated
by yellow marks in the picture.
Drop with change
of direction
T i p :
The next flex-rail must be correctly
aligned with the previous flex-rail so
that the ball is caught after it falls
and can continue to roll.

Jump loop

After the automatic cross-over, the route is very steep, ensur-
ing that the ball will accelerate to the speed required to fly
though the loop.
The ball rolls through the obstacle course - but then the flex-
rail stops suddenly and the ball falls downward. The next rail
catches the ball and immediately lets it continue to roll down
in the opposite direction.
The ball rolls through the loop, which suddenly ends. The ball
flies through the air and drops into the rotary funnel.
7
