  • Page 1 Begleitheft Activity booklet Manual d‘accompagnement Begeleidend boekje Cuaderno adjunto Folheto Libretto di istruzioni Сопроводительная инструкция 附带说明书...

  • Page 2: Table Of Contents

    Contents PROFI DYNAMIC XXL What does dynamics mean? Fun with Physics Dynamic XXL components The three Dynamic XXL obstacle courses Elevator Flex tube 360 Obstacle course 1 Automatic cross-over Switch Loop Jump loop Drop with change of direction Rotary funnel...

  • Page 3: Profi Dynamic Xxl

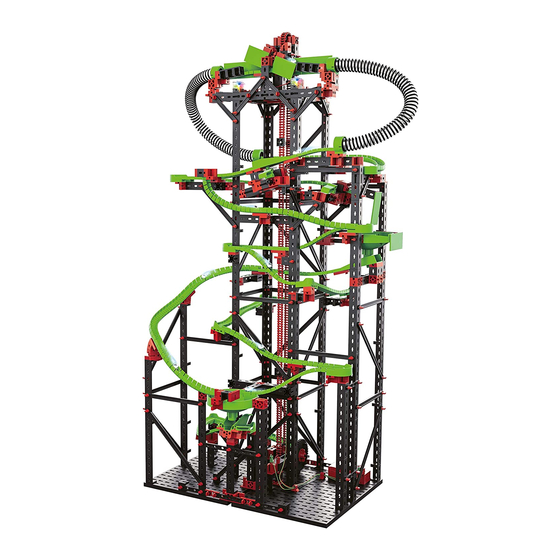

    PROFI DYNAMIC XXL ■ The new Dynamic XXL obstacle course construction set is guaranteed to be even faster, higher and more action-packed than ever. At just under one meter high with a track up to 5.60 meters long, plenty of new functions, new components and switches, this construction set guarantees unlimited hours of entertainment.

  • Page 4: Dynamic Xxl Components

    Dynamic XXL components flex-rails are flexible in all directions. When building an ob- Tip: If the flex-rails are bent after disassembly, stacle course you can be as creative as you like and build special, they can be straightened by clamping them on one crazy curves, loops and jumps.

  • Page 5: The Three Dynamic Xxl Obstacle Courses

    The three All obstacle courses shown in the assembly instructions include an elevator. This consists of a driven chain fastened to a mag- Dynamic XXL netic ball holder. obstacle courses Elevator T i p : If the balls are not picked up and transported by the elevator correctly, you can readjust the position of the ball magazine.
  • Page 6 T i p : 2. Slide the holder of the flex tube onto the spring launcher. Thread the flex tube into the end piece as far as possible so that no gap is visible between the flex tube end and the end piece.

  • Page 7: Obstacle Course 1

    Obstacle course 1 ■ This action-packed obstacle course includes many dynamic obstacles as well as two switches and a stopping point. Below are a few tips on how to ensure that the individual obstacles work correctly. Automatic cross-over After the ball has been knocked off the magnetic ball holder it rolls into the automatic cross-over T i p :...

  • Page 8: Loop

    T i p : If the slider moves on its own, you can increase the friction by sliding the V15 corner building block toward the angle girder. Loop After the automatic cross-over, the route is very steep, ensur- ing that the ball will accelerate to the speed required to fly T i p : though the loop.

  • Page 9: Rotary Funnel

    Rotary funnel The rotary funnel is installed in two places in obstacle course 1. In the rotary funnel the balls from the routes again merge on the subsequent cross-over and flex-rail. T i p : Ensure that all components for the rotary funnel mount as well as the subsequent cross-over and flex-rail are aligned correctly so that the ball...

  • Page 10: Switch With Switch Lever

    Switch with The switch with switch lever are used to determine the direction of the course. switch lever The separate PLUS XS Motor Set can be used to extend and power the switch. The assembly instructions provide information on how to install this set in obstacle course 1. T i p : Make sure that the switch lever or slider is always pushed up against...

  • Page 11: Obstacle Course 2

    Obstacle course 2 ■ This model particularly suited for those who are new to using the ball obstacle course. The balls are transported up by the elevator and after passing through the cross-over roll down two different routes to the rotary funnel. Here the balls collect and roll back on a flex-rail to the ball magazine.

  • Page 12: Stopping Point

    Stopping point The balls can be stopped at the stopping point and then released. T i p : Make sure that the flex-rail profile or slider is always pushed up against the end stop. T i p : Make sure that building block 5 with connector 30 is connected flush at the top with the 15x30x5 construction plate with three slots.

  • Page 13: Drop With Change Of Direction

    Drop with change The ball rolls through the obstacle course - but then the flex- rail stops suddenly and the ball falls downward. The next rail of direction catches the ball and immediately lets it continue to roll down in the opposite direction. T i p : The next flex-rail must be correctly aligned with the previous flex-rail so...

  • Page 14: Further Tips

    • Other construction sets from the PROFI Dynamic line are available online at www.fischertechnik.de/en/products/playing/profi-dynamic-marble-runs • For even more action, you can download free assembly instructions for this construction set with Dynamic XM from the fischertechnik homepage: www.fischertechnik.de/en/service/downloads/dynamic...
