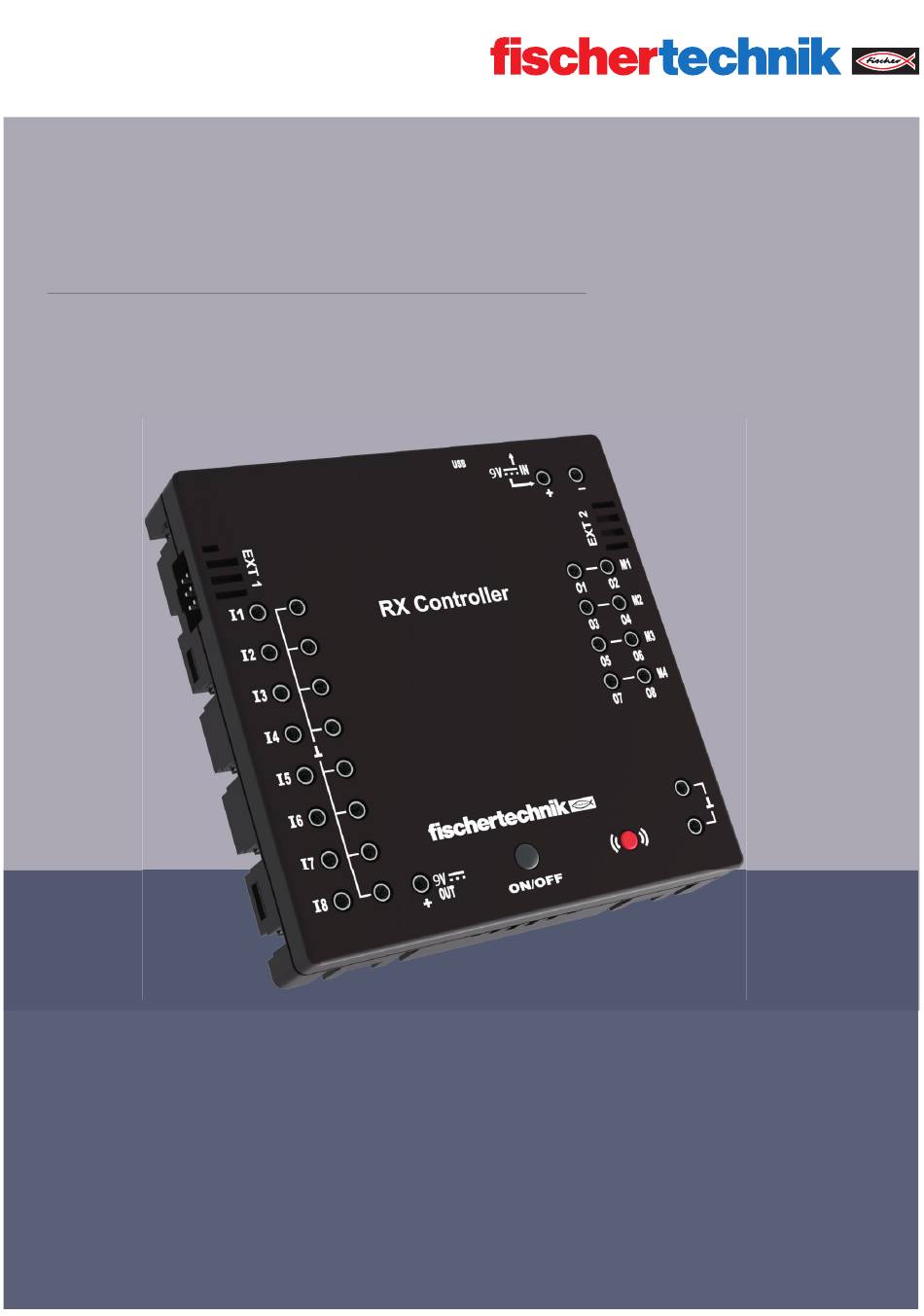

- Page 1 ROBOTICS RX CONTROLLER Operating instructions...
-
Page 2: Table Of Contents
Electromagnetic interference What can be connected to the controller Software requirements Interfaces Switching the RX Controller on / off Operating the RX Controller - meaning of the color and flashing codes Pairing the RX Controller via Bloothooth Short-circuit protectio Firmware update... -
Page 3: Overview Of Connections
The power supply unit from the Power Set is connected here (not included in the scope of delivery) 9V IN, battery / battery pack connection This connection enables a mobile power supply via a fischertechnik battery holder or rechargeable battery pack. -
Page 4: Safety Instructions
• Insert batteries with the correct polarity! • Connection terminals must not be short-circuited! • The RX Controller may only be used with a fischertechnik power supply such as z. e.g. battery holder 9V art. no. 193745 or Accu Pack 35537! •... -
Page 5: What Can Be Connected To The Controller
RX CONTROLLER THIS CAN BE CONNECTED TO THE CONTROLLER ACTUATORS 9V, 250 mA › Engine › Compressor › SENSOREN › Minitaster › Reed contact › NTC resistor › Photoresistor › Phototransistor › Ultrasonic distance sensor › Optical color sensor ›... -
Page 6: Softwarerequirements
/ Android) Available via the respective app store. MicroPython • INTERFACES The RX Controller can be connected to other devices, e.g. PC, tablet or smartphone, via USB or Bluetooth. SWITCH ON / SWITCH OFF THE RX CONTROLLER Connect the controller to a voltage source (9V IN connections). - Page 7 RX CONTROLLER LED coding if the RX Controller has no USB or Bluetooth connection: LED off RX Controller is switched off. LED lights up red RX Controller is switched on. LED lights up green Program transferred to the RX Controller is...
-
Page 8: Pairing The Rx Controller Via Bloothooth
RX CONTROLLER PAIRING THE RX CONTROLLER VIA BLUETOOTH The RX Controller is connected to an end device (PC, tablet, smartphone) directly in the programming environment (e.g. ROBO Pro Coding). A separate connection of the RX Controller via the respective operating system is not required. -
Page 9: Short-Circuit Protectio
As soon as the short circuit has been eliminated, the motor can be switched on again. If there is a short circuit at the „9V Out“ connection, the RX Controller is switched off. As soon as the short circuit has been eliminated, the device can be switched on... -
Page 10: Firmware Update
The power supply must not be interrupted during the update. Start update via „Update now“ button. The fi rmware is transferred to the RX Controller. Start update via „Update now“ button. The fi rmware is transferred to the RX Controller.
