5.3 Hardware Reset
The S5U13L01P00C100 evaluation board has an on-board reset IC which drives the RESET# input pin on the
S1D13L01. This occurs when push button SW4 is pressed.
S5U13L01P00C100 Evaluation Board
Rev. 1.3

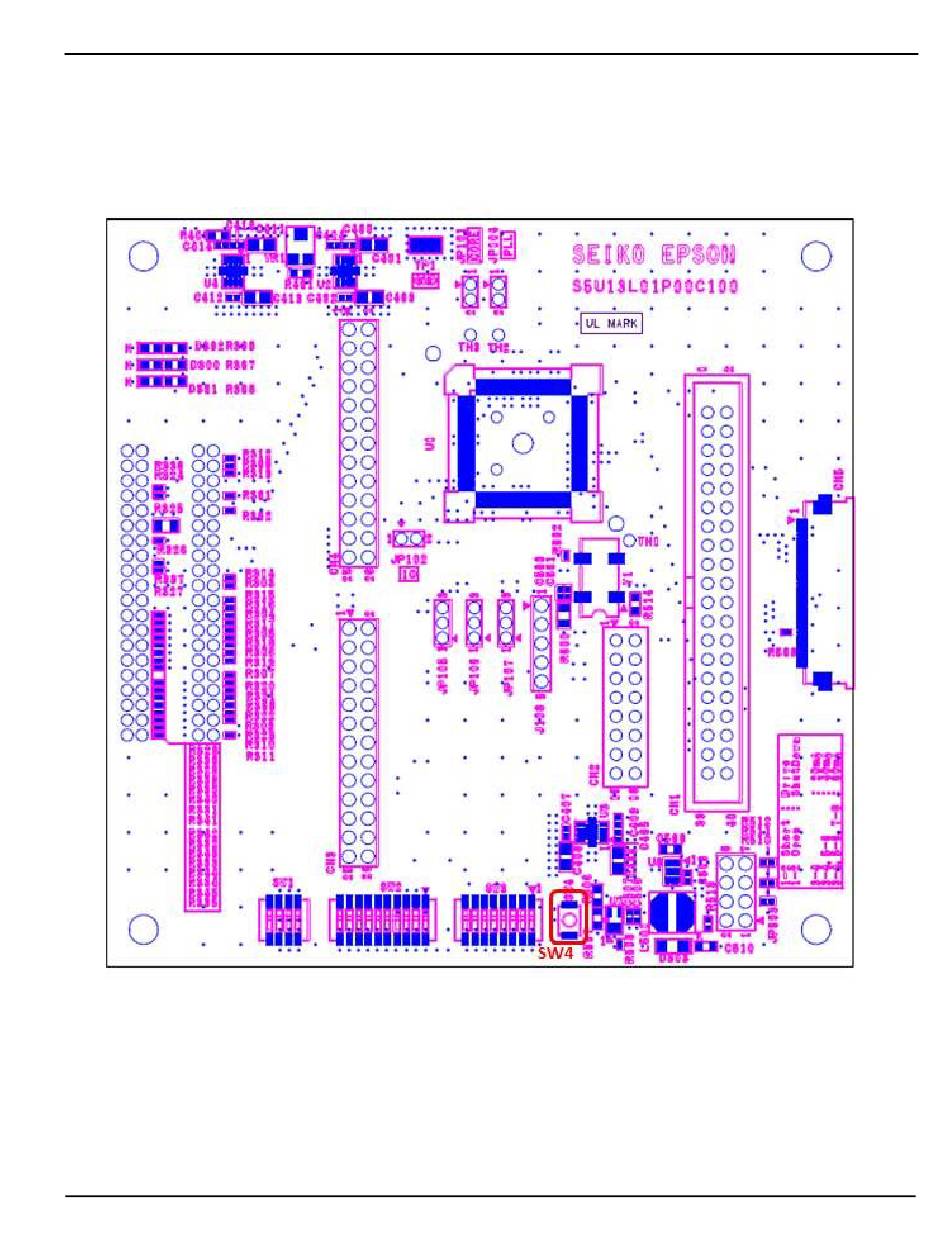

Figure 5-1: Reset Switch (SW4) Location
Seiko Epson Corporation
Technical Description
19
