3.6 LED Status Indicators

The S5U13L01P00C100 evaluation board has 3 LED status indicators which provide a quick visual status of the
following conditions as described in Table 3-8: "LED Status Indicators".
Note
Connector CN4 is only land.
LED Color
HB RED
ENUM RED
POWER RED
S5U13L01P00C100 Evaluation Board
Rev. 1.3
Table 3-8: LED Status Indicators
Signal
HEARTBEAT HEARTBEAT from the S5U13U00P00C100
ENUMARETED ENUMARETED from the S5U13U00P00C100
5V 5.0V is present from the S5U13U00P00C100 or CN4

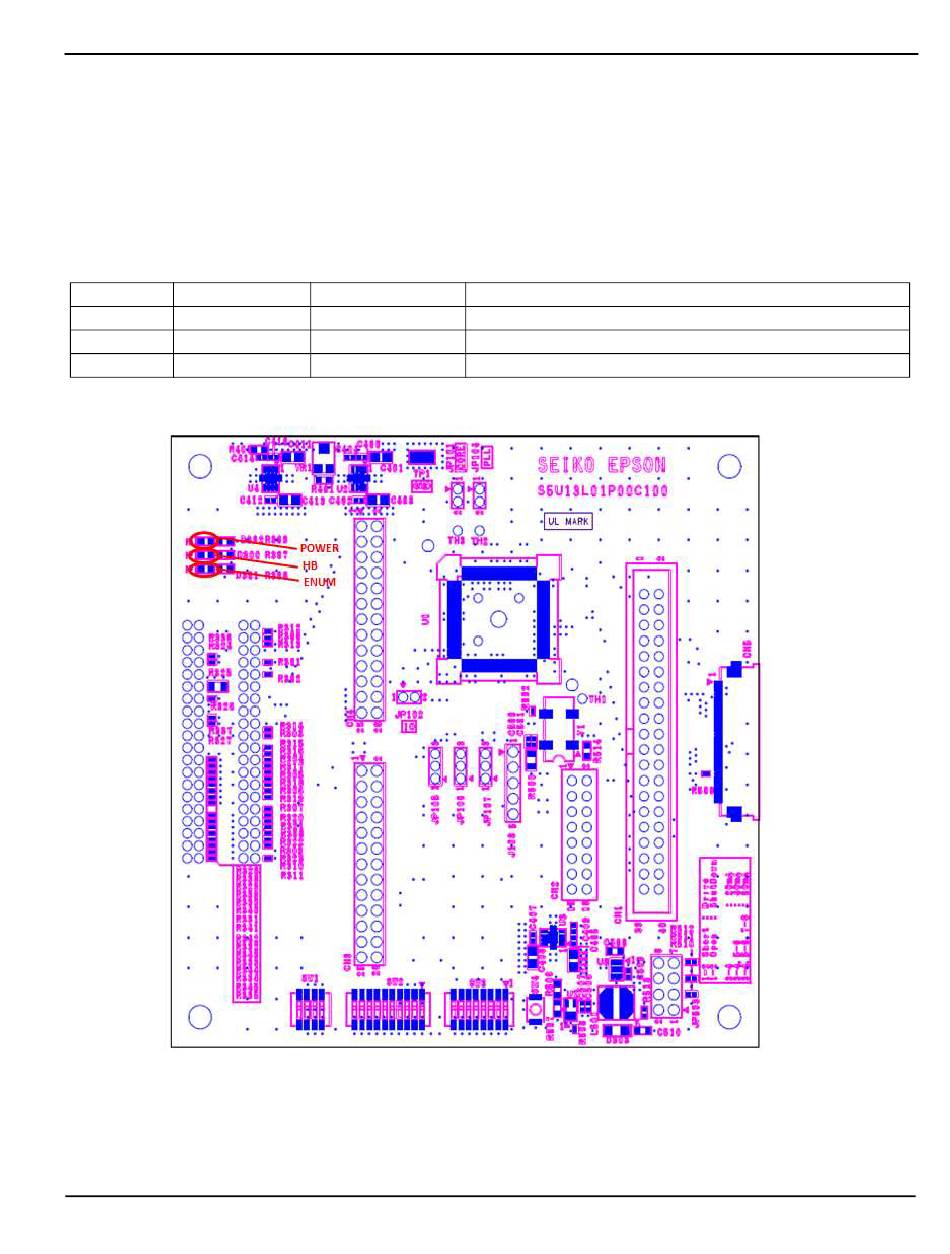

Figure 3-3: LED Locations (Red)
Seiko Epson Corporation
Installation and Configuration
Comment
13
