The following diagram shows the location of connectors P1 and P2. P1 and P2 are 2mm x 2mm, 40-pin headers
(20 x 2) located on the underside of the board.
For the pinout of connectors P1 and P2, see Section Chapter 7, "Schematic Diagrams" on page 23.
Note
A windows driver must be installed on the PC when the S5U13L01P00C100 is used with the S5U13U00P00C100
USB Adapter Board. The S1D13xxxUSB driver is available at vdc.epson.com.
S5U13L01P00C100 Evaluation Board
Rev. 1.3

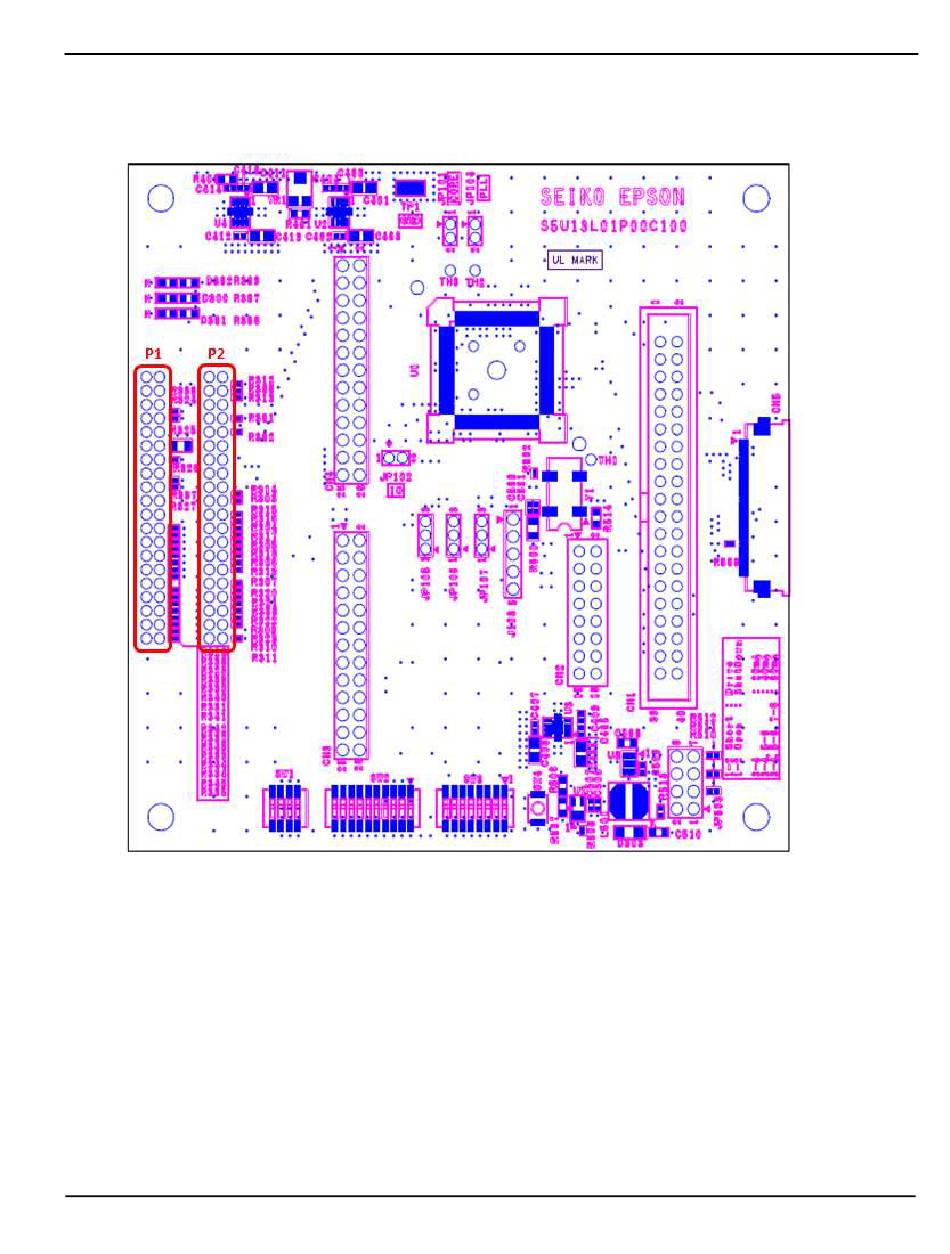

Figure 4-2: USB Adapter Connector Locations (P1, P2)
