Related Manuals for Peak Pilates CASA REFORMER
Summary of Contents for Peak Pilates CASA REFORMER

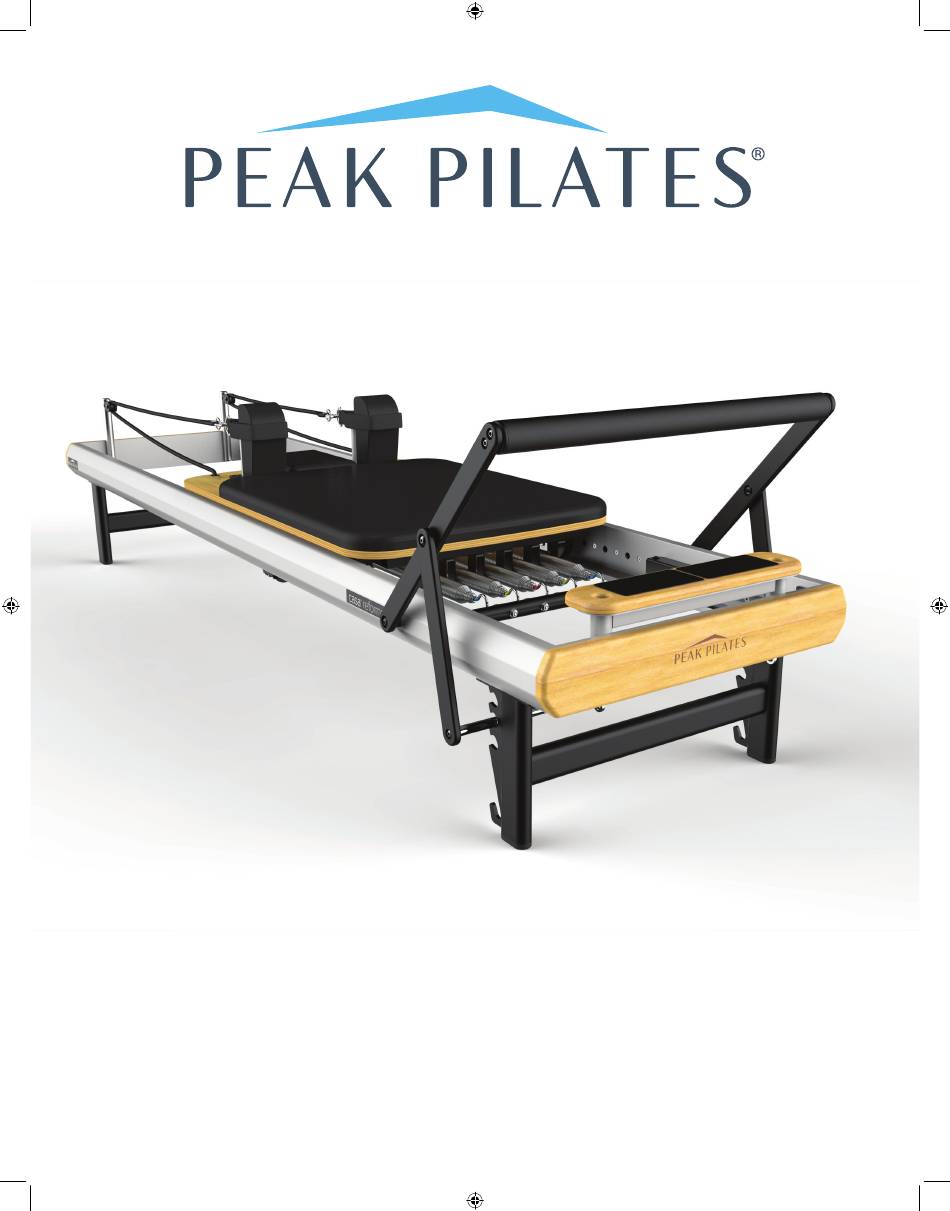

- Page 1 CASA REFORMER ™ ASSEMBLY GUIDE AND OWNER’S MANUAL www.peakpilates.com PEAK-CASA-OM-2020.indd 1 PEAK-CASA-OM-2020.indd 1 4/16/20 8:23 PM 4/16/20 8:23 PM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS About the Peak Pilates® casa Reformer ________________________________________ Recommended Use _______________________________________________________ Safety Statement _________________________________________________________ Proper Use _____________________________________________________________ Warranty _______________________________________________________________ Specifications ____________________________________________________________ Package Contents ________________________________________________________ Assembly Unpacking the carton _____________________________________________________ Assemble the legs ________________________________________________________ Attach the springs ________________________________________________________ Assemble the shoulder pads ________________________________________________... -
Page 3: About The Peak Pilates® Casa Reformer
Peak Pilates®. There are a great number of exercises that can be done on the casa reformer where correct form is imperative. We strongly advise that the casa reformer be used only by or under the supervision of a Peak Pilates®... -
Page 4: Recommended Use
Use only for the intended exercises in the Peak Pilates® educational system. Do not modify the machine in any way as it will nullify your warranty. This machine is designed to be used indoors. Keep this guide handy for future reference. -
Page 5: Proper Use
The hardware should be snugly tightened so it creates friction at the pivot point and thus ensures proper function of the self-locking feature. Do not ever use the foot bar as a handle when lifting or moving the casa reformer. NOTE Understanding each and every warning to the fullest is critical. -
Page 6: Warranty
This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. Warranties outside of the US may vary. © Copyright 2020 Peak Pilates®. All rights reserved. Peak Pilates® is a registered trademark that is owned by Mad Dogg Athletics, Inc.® casa reformer owner’s manual PEAK-CASA-OM-2020.indd 6 PEAK-CASA-OM-2020.indd 6... -
Page 7: Specifications
SPECIFICATIONS AND COMPONENTS Weight: 110 in. Length: 97 in. Width: 25 in. Carriage Height: 16 in. Maximum User Weight: 250 lbs. Training Area Length 121 in. Width 49 in. Glossary of Parts Many other parts are shown and described in other sections of this manual. Riser Assembly Head Rest Storage Bracket... -
Page 8: Package Contents
2 safety links non-slip pad shoulder pad assemblies (with L brackets and posts) flat head hex screws (for mounting the shoulder pads to the carriage) casa reformer owner’s manual PEAK-CASA-OM-2020.indd 8 PEAK-CASA-OM-2020.indd 8 4/16/20 8:23 PM 4/16/20 8:23 PM... -
Page 9: Unpacking The Carton
UNPACK THE CARTON Open the box. Carefully remove all parts and verify that all components and accessories are included. Place protective cover on the floor (so the aluminum frame will not be scratched). With one person at each end of the reformer, lift the unit out of the box and place on the floor. WARNING SINCE NO SPRINGS ARE ATTACHED, THE CARRIAGE IS NOT LOCKED IN POSITION AND MAY START TO ROLL, BE EXTRA CAUTIOUS WHEN MOVING THE UNIT. -
Page 10: Attach The Springs
flat head screws from the outside in to the riser. Go back and fully tighten the screws. Install the second riser the same way. flat head socket screws 2 per riser casa reformer owner’s manual PEAK-CASA-OM-2020.indd 10 PEAK-CASA-OM-2020.indd 10 4/16/20 8:23 PM 4/16/20 8:23 PM... -
Page 11: Install The End Panel
INSTALL THE END PANEL Align the wood end panel with the aluminum end panel. make sure that the Peak Pilates® logo is reading correctly. Install the 6 small flathead screws from inside the reformer. INSTALL THE ROPES Feed the free end of each rope through the pulley on the riser. -
Page 12: Working With The Springs And Adjustmets
WORKING WITH THE SPRINGS AND ADJUSTMENTS The casa reformer comes with 5 springs of different resistance levels as shown. RED - heavy. One center spring YELLOW - medium. Two middle springs BLUE - light. Two outside springs To attach a spring to an eye bolt on the gear bar, lift the end of the spring and insert the spring hook through the respective eye bolt on the gear bar. -
Page 13: Adjusting The Headrest
SIDE POSITIONING SLOT BEFORE BEGINNING ANY EXERCISE. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY. DO NOT USE THE FOOT BAR AS A HANDLE TO LIFT THE CASA REFORMER. INSTEAD PLEASE LIFT THE REFORMER BY GRASPING THE UNDERSIDE OF THE FRAME MEMBERS OR UNDER THE WOOD END PANELS. -
Page 14: Using The Long/Short Box
MOVING THE CASA REFORMER IMPORTANT. Before moving the casa reformer, make sure that there is at least ONE spring attached to the gear bar. l NEVER hold onto or use the footbar to move the reformer (in ANY position) l Invite your friend to help you. -
Page 15: Maintaining Your Casa Reformer
MAINTAINING THE CASA REFORMER You have purchased a high-quality piece of equipment that is constructed of the finest components and materials. Proper care requires only a small, but very important investment of time in a regular, routine maintenance program. Part... - Page 16 WARNING ENSURE AND VERIFY THAT ANY PERSON(S) MAKING ADJUSTMENTS, PERFORMING MAINTENANCE OR MAKING REPAIRS OF ANY KIND TO THE CASA REFORMER IS QUALIFIED TO DO SO. casa reformer owner’s manual PEAK-CASA-OM-2020.indd 16 PEAK-CASA-OM-2020.indd 16...
-
Page 17: Supplemental Information
Please keep pets and small children away from the reformer at all times. The casa reformer should also only be used by persons that have been trained and/or are being trained by Peak Pilates® Certified Instructors or equivalent. - Page 18 +31 1059 04508 1.310.823.7008 (Worldwide) Fax: 1.310.823.7408 peakpilates.com © 2020 Peak Pilates®, Inc. All rights reserved. Peak Pilates® is a registered trademark that is owned by Mad Dogg Athletics, Inc. PEAK-CASA-OM-2020.indd 18 PEAK-CASA-OM-2020.indd 18 4/16/20 8:23 PM 4/16/20 8:23 PM...
