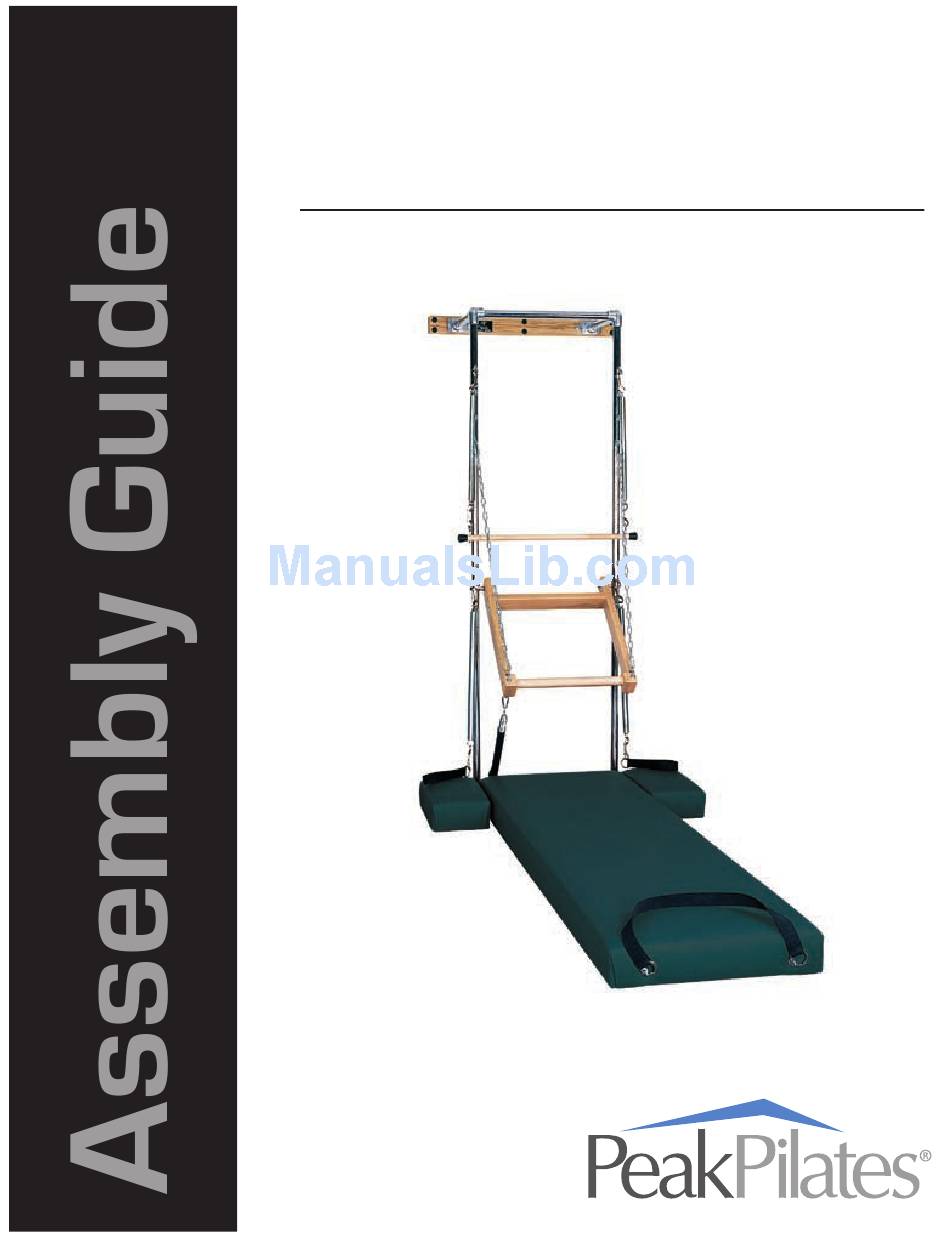

- Page 1 Wall System (Classic, Deluxe)
-
Page 2: Recommended Use
Important: This manual contains important safety and usage information. Before beginning exercise, read the entire manual, paying specific attention to all cautions and warnings, and obtain qualified instruction on the use of the Peak Pilates Wall Systems. Use only for the intended exercise. Do not modify the machine. Modifying the machine in any way will nullify your warranty. - Page 3 • Wall mounting plate • Floor mounting plate Deluxe Wall System Standard Features If you have ordered the Deluxe version of the Classic Wall System, you have also received the following: • 5” x 24” x 84” mat • 2 mat boxes •...
- Page 4 Installing the Wall Unit 1. If mounting the Wall System in a facility with pre-existing construction, Peak Pilates highly recommends first installing a backer board. The material for the backer board should be 2” x 6” and it needs to be long enough to span at least three wall studs.
- Page 5 4. Using the square as a guide, draw a 3 “ long line on the floor starting from 16 3/8” (extending to 19 3/8”). Repeat on the other side of the wall mounting plate. The floor mounting plate is located between these two lines. If the Wall System is being installed using a 2”...
- Page 6 10. Rotate the vertical poles so that the eyebolts are facing away from the wall. Do not tighten the set screws in the fittings at this time. Leaving the set screws loose will make installation of the push-through bar easier. 11.
- Page 7 Assembling the Springs and Safety Chains Attach the springs after completing installation of the Wall System structural components. Leg Springs The leg springs are the longest springs. Attach a double ended clip to each end of each spring and then attach the springs to the eyebolts in the upright poles. The leg springs can be adjusted between eyebolts depending on the desired height and tension.
- Page 8 Copyright 2013 Mad Dogg Athletics, Inc. All rights reserved. SPIN ® , Spinner ® , Spinning ® , the Spinning logo, Peak Pilates ® Resist-A-Ball ® Bodyblade are registered trademarks that are owned or used under exclusive license by Mad Dogg Athletics, Inc.
