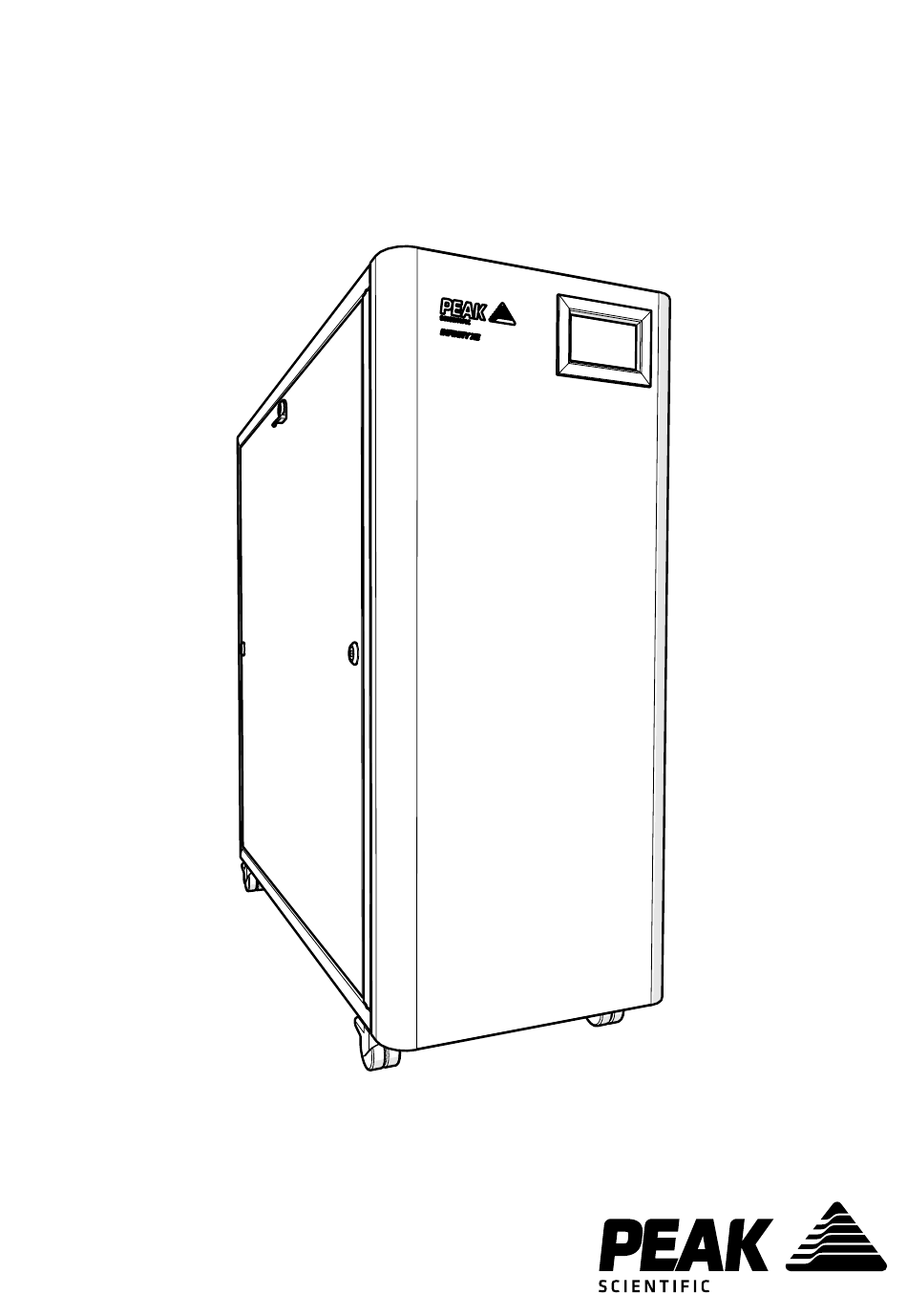

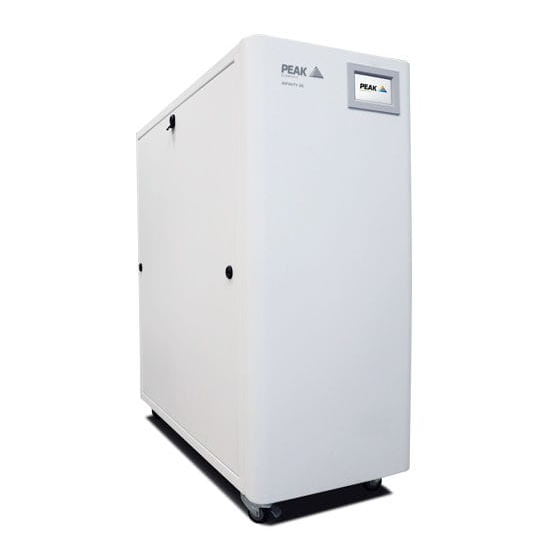

- Page 1 Infinity XE 60 Series (All Models) Installation Guide Copyright © Peak Scientific Instruments Ltd 2021 — Infinity XE 60 Series Installation Guide Rev 1 PN XXXXXX RSID 4127 EN —31/05/2021...
-
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your laboratory gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit US Mains Cable 230V C19 6-15 04-1024 1/4” Tee Fitting 02-1048 8mm Hex Key 00-0007 UK Mains Cable C19 04-1025 x3m* 12mm OD x 10mm ID PE 00-1267 Shut-Off Valve 02-4471 EU Mains Cable C19 04-1026 6mm OD x 4mm ID PE 00-1282 1/4”... - Page 5 WARNING 0° 0° Unpack the generator from the shipping crate and position on a flat surface, in desired area. An Infinity XE 6010 has been used for the purposes of this Installation Guide. WARNING Ensure all inlets and outlets are connected to correct sources and applications. All Connections should only be carried out by trained personnel.
- Page 6 02-4471 02-4471 02-1048 02-1048 02-5801 02-5801 Select the Tee Fitting 02-1048 and attach this to the Nitrogen port. Next, attach the Shut-Off Valve 02-4471 to the vertical female port on the Tee Fitting, ensuring PTFE tape is used for tight fit. Finally attach the 12mm Push-Fit Fitting 02-5801 from the fittings kit to the remaining female port on the Tee Fitting, again ensuring PTFE tape is used.
- Page 7 appropriate tubing 00-1267 00-1267 00-1282 00-1282 Connect the 6mm PE Tubing 00-1282 to the ¼”- 6mm Push Fit Fitting 02-4600. Fit the other end of the tubing to a suitable drain connection or container. The container MUST NOT have an airtight seal as water and air will be expelled periodically under a slight pressure.
- Page 8 04-1004/04-1024/04-1025 04-1004/04-1024/04-1025 /04-1026/04-1035 /04-1026/04-1035 Select the appropriate mains cable from the fittings kit and plug the IEC 60320/C19 cable into the mains input at the rear of the generator. CAUTION 110V 230V 100V Plug the mains cable into the corresponding 100/110/230VAC 50/60Hz single phase power supply.
- Page 9 Switch the generator power ON using the switch on the rear panel. The inlet pressure graph on the external HMI of the generator will gradually increase from 0Psi to the delivered inlet pressure as the system pressurises Page 9...
- Page 10 Remove the side panel, and set the desired Nitrogen output pressure using the internal pressure regulator located near the front of the generator. View the external outlet pressure reading on the HMI when setting the pressure. For units without Dry Air option fitted please replace the side panel after the regulator has been set and proceed to step 13.
- Page 11 CONGRATULATIONS Your Peak Scientific gas generator is now fully installed, operational and ready to supply gas on demand to your instrument. Page 11...
-
Page 12: General Notes
General Notes Electrical requirements for 230V generators are 195V - 253V 50/60Hz. For 195V - 219V a 06-3200 Dual Tap Transformer is required. Electrical requirement is 100-230V for all XE60 models. Electrical Requirements Voltage Frequency Generator Plug Type Infinity XE 60*0 UK, EU, US 230V ... - Page 13 Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.
- Page 14 Page 14...
- Page 15 Page 15...
- Page 16 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2021 — Infinity XE 60 Series Installation Guide Rev 1 PN XXXXXX RSID 4127 EN —31/05/2021...
