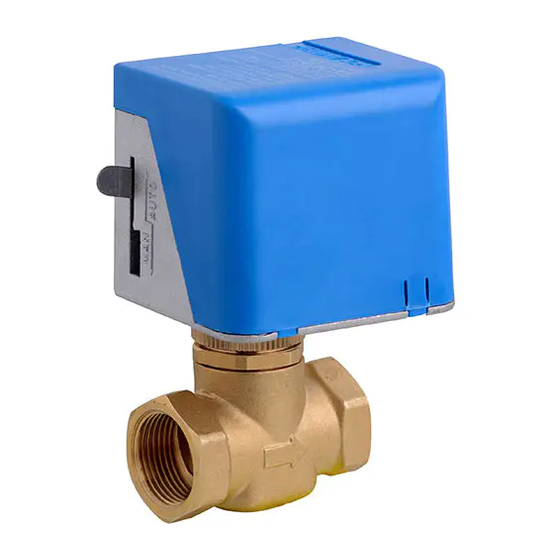

VA-7010 Series Electric On/Off Actuator
The VA-7010 Series Electric On/Off Actuators provide
two-position (open/closed) control and can easily be
field mounted with a threaded coupling onto VG5000
Series Forged Brass Valves. Refer to the VG5000
Series Forged Brass Valves 1/2 Through 1 in.,
Two-Way Normally Closed and Three-Way
Product/Technical Bulletin (LIT-977135 ) for specific
information.
A lever at the side of the actuator housing can be used
to open the mounted valve manually for servicing.
Low or Line Voltage Model
Available
AC Stall Type Motor
Manual Lever
Flat Profile Design with
Small Side Clearance
Actuator can be Mounted
after Valve Body is
Installed
Actuator can be Rotated
after Mounting
© 1999 Johnson Controls, Inc.
Part No. 34-636-763, Rev. B
Code No. LIT-977360
Figure 1: VA-7010 Actuator with VG5000 Valve
Features and Benefits
Provides application flexibility
Ensures quiet operation
Allows manual position mode for servicing
Provides mounting close to flat surfaces;
saves space
Simplifies installation in confined spaces;
allows application flexibility
Provides easier wiring by locating the wiring
conduit entry in any direction
FANs 977, 1628.3
Product/Technical Bulletin VA-7010
Issue Date 0199
www.johnsoncontrols.com
1
Advertisement
Related Manuals for Johnson Controls VA-7010 Series
Summary of Contents for Johnson Controls VA-7010 Series
- Page 1 Product/Technical Bulletin VA-7010 Issue Date 0199 VA-7010 Series Electric On/Off Actuator The VA-7010 Series Electric On/Off Actuators provide two-position (open/closed) control and can easily be field mounted with a threaded coupling onto VG5000 Series Forged Brass Valves. Refer to the VG5000 Series Forged Brass Valves 1/2 Through 1 in.,...
- Page 2 Normally Closed (N.C.) valves or the N.C. port of 3-way valves. The lever will not fully close Normally Open (N.O.) valves or the N.O. port of 3-way valves. imensions Figure 4: Valve/Actuator Mounting Positions Figure 3: Dimensions, in. (mm) VA-7010 Series Electric On/Off Actuator Product/Technical Bulletin...
- Page 3 Figure 6: Ordering Data for the VA-7010 Actuator Combinations CAUTION: Equipment Damage Hazard. Check all wiring connections The VA-7010 Series Electric Valve Actuators are before applying power to the designed to be used with the VG5000 valve series. system. Short-circuited or...
- Page 4 The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
