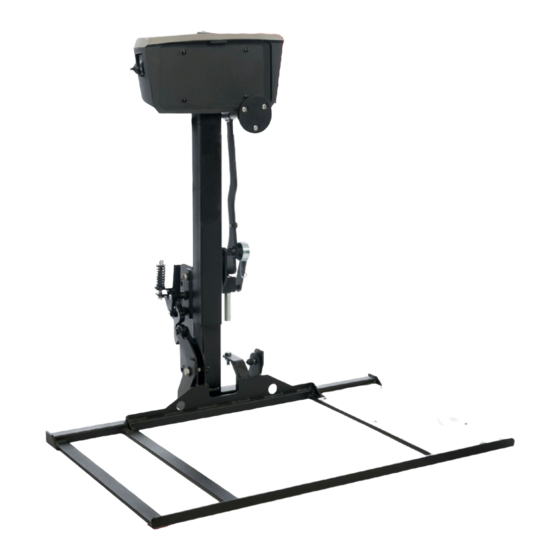

- Page 1 Including Models Outlander Series Owner’s Manual...
- Page 2 P65Warnings.ca.gov. Intended Use The intended use of the Harmar Mobility Products device is to aid in the transport of products that provide mobility to persons limited to a seated position that have the capability of operating a mobility device. Quick Reference Information...
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ............................4 SAFETY ..............................5 III. INSTALLATION ............................10 OPERATION ............................15 BATTERY CHARGING .......................... 20 CARE AND MAINTENANCE ....................... 22 VII. TROUBLESHOOTING .......................... 25 VIII. WARRANTY .............................26 Outlander Series www.harmar.com... -
Page 4: Introduction
I . I N T R O D U C T I O N SAFETY Welcome to Pride Mobility Products by Harmar. Congratulations on the purchase of your new lift system. The lift system design combines the most advanced state-of-the-art components with modern, attractive styling. - Page 5 I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the lift system to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Do not open the swing-away hitch adapter with a mobility device on the lift.
- Page 6 I I . S A F E T Y Removal of grounding prong can create electrical hazard. If necessary, properly install an approved 3-pronged adaptor to an electrical outlet having 2-pronged plug access. Do not connect an extension cord to the charger cord. Do not allow unsupervised children to play near the lift system while the batteries are charging.
- Page 7 I I . S A F E T Y Disposal and recycling - Contact your authorized Harmar Dealer for information on proper disposal of your Harmar product and its packaging. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Corrosive chemicals contained in battery.
- Page 8 I I . S A F E T Y LIFTING CAPABILITIES The lift system is an electromechanical device designed to lift and secure various types of mobility devices for the purpose of vehicle transport. The Outlander is designed for use with Class II, Class III, or Class IV hitches.
- Page 9 I I . S A F E T Y HITCH CLASS INFORMATION Hitches come in a variety of sizes and are designated by class. The classes range from Class II to Class IV. A heavier load requires a larger class, which has a higher tongue weight.
-
Page 10: Installation
I I I . I N S TA L L AT I O N LIFT SYSTEM INSTALLATION The Outlander is designed to be easily installed into any vehicle equipped with a Class II or Class III/IV hitch receiver. NOTE: For applications above 21 in (53.34 cm), please call your authorized Harmar Dealer for special installation instructions. - Page 11 I I I . I N S TA L L AT I O N Figure 5. Hold-down Bar Installation Figure 6. Retractable Tie-down Strap Installation Steps for retractable tie-down strap installation: 1. Remove mounting hardware from strap. 2. Align the meeting position on strap to the desired mounting point hole on the full platform. See figure 6.
- Page 12 I I I . I N S TA L L AT I O N 4. Secure the hitch tube with the supplied bolt and nut, inserting the bolt from the threaded side of MOUNTING the hitch tube. See figure 7. HARDWARE WARNING! Threading the bolt from the wrong side or allowing the bolt to turn while tightening...
- Page 13 I I I . I N S TA L L AT I O N Onboard Battery Installation The optional onboard battery is designed for easy installation as it does not require any wires to be routed through or under the vehicle. To install the onboard battery: 1.
- Page 14 I I I . I N S TA L L AT I O N WARNING! Do not cut or shorten the wiring harness. If the harness is too long, coil the excess WHEEL CHOCK TOP wire and secure it with plastic wire ties. 3.
-
Page 15: Operation
I V. O P E R AT I O N LIFT SYSTEM OPERATION WARNING! The lift system is intended for the transport of only mobility devices. The mobility device must be unoccupied before operating the lift. WARNING! Do not exceed the load limits of your vehicle or hitch system as specified by the vehicle manufacturer. - Page 16 I V. O P E R AT I O N mobility device could roll. HOOK 3. Secure the mobility device to the platform using either the retractable tie-down straps or the hold- down bar for power chairs or either the automatic lock-down arm or straps for scooters.
- Page 17 I V. O P E R AT I O N 4. Raise the lift platform by pressing the toggle up. Continue to raise the lift until the motor stops, then release. NOTE: As the lift platform rises, the automatic lock- down arm activates to secure the product to the lift platform.
- Page 18 I V. O P E R AT I O N THE SWING-AWAY ADAPTER The swing-away adapter allows the lift system to move away from the vehicle to permit easier access to vehicle. To operate swing-away adapter: 1. Remove the safety pin 2.
- Page 19 I V. O P E R AT I O N MANUAL LIFT SYSTEM OPERATION The lift system is equipped with a manual crank that serves as backup in the event of a power failure. Using the supplied tool, rotate the manual crank (located on top of the motor housing) clockwise or MANUAL CRANK counterclockwise to move the platform up or down.
-
Page 20: Battery Charging
V. B AT T E R Y C H A R G I N G BATTERY CHARGING To charge the onboard battery: 1. Remove the onboard battery case from the battery case bracket and place it near a standard electrical outlet. - Page 21 V. B AT T E R Y C H A R G I N G BATTERY REPLACEMENT WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds. Wear goggles and gloves when handling batteries and wash hands after handling. MANDATORY! Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
-
Page 22: Care And Maintenance
V I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your lift system requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized Harmar Dealer. - Page 23 V I . C A R E A N D M A I N T E N A N C E General Cleaning Guidelines The lift system can be hand washed along with the vehicle with soap and water. However, automatic drive-through car washes should be avoided as they may interfere with and cause damage to the lift.
- Page 24 V I . C A R E A N D M A I N T E N A N C E QUESTIONS & ANSWERS ABOUT PROPOSITION 65 What is Proposition 65? Proposition 65 requires businesses to provide warnings to Californians about significant exposures to chemicals that cause cancer, birth defects, or other reproductive harm.
-
Page 25: Troubleshooting
V I I . T R O U B L E S H O O T I N G TROUBLESHOOTING Any electromechanical device occasionally requires some troubleshooting. However, most of the problems that may arise can usually be solved with a bit of thought and common sense. Many of these problems occur because the battery is not fully charged or because the battery is worn down and can no longer hold a charge. -
Page 26: Warranty
V I I I . W A R R A N T Y THREE-YEAR TRANSFERABLE LIMITED WARRANTY For three (3) years from the date of purchase, Harmar will repair or replace at our option, free of charge, any mechanical or electrical component found upon examination by an authorized representative of Harmar to be defective in material and/or workmanship. - Page 27 N O T E S Outlander Series www.harmar.com...
- Page 28 N O T E S www.harmar.com Outlander Series...
- Page 30 800.833.0478 | www.harmar.com 03JUN19 PN:...
