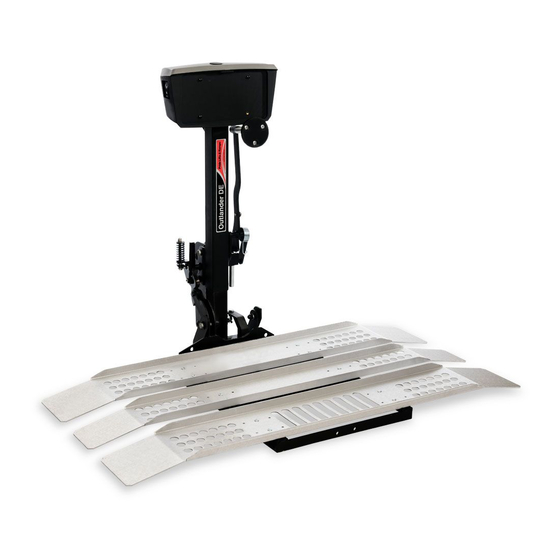

- Page 1 OUTLANDER LIFTS FULL OWNER’S MANUAL & WARRANTY Outlander Full with INFORMATION retractable strap option pictured 30JULY2020 | 630-00132 Rev B...
- Page 2 THANK YOU From all of us at Harmar, thank you for placing your trust in our products and allowing us to be a part of your journey. For more than 20 years we have been committed to building products that help you maintain independence.
-
Page 3: Table Of Contents
OUTLANDER VEHICLE LIFTS TABLE OF CONTENTS Table of Contents INTRODUCTION ..........4 Device Name: Paragon Outlander Vehicle Lift ..4 Read and Understand ............4 Purchasing Information ............4 Technical Specifications ............4 General Information ............4 SAFETY ..............6 Safety Definitions .............. -
Page 4: Introduction
OUTLANDER VEHICLE LIFTS: SECTION 1 INTRODUCTION Section 1 Introduction DEVICE NAME: PARAGON TECHNICAL SPECIFICATIONS OUTLANDER VEHICLE LIFTS Visit harmar.com for specifications on your lift model. Indications of Use: The intended use of Paragon GENERAL INFORMATION Outlander vehicle lifts is to lift a mobility device for patients or mobility-impaired persons on and off a This lift is meant to transport a wheelchair, power vehicle. - Page 5 OUTLANDER VEHICLE LIFTS: SECTION 1 INTRODUCTION Consider the following general information when using your lift. Specifics may vary based on your chair model and lift combination. • Always make certain your lift is fully deployed and flush with the ground prior to loading your mobility device.
-
Page 6: Safety
OUTLANDER VEHICLE LIFTS: SECTION 2 SAFETY Section 2 Safety SAFETY DEFINITIONS This safety alert symbol appears with safety statements. It means attention, become alert, your safety is involved! Please read and abide by the message that follows the safety alert symbol. WARNING Indicates a hazardous situation that, if not avoided, could result in death or serious injury. -
Page 7: Operation
OUTLANDER VEHICLE LIFTS: SECTION 3 OPERATION Section 3 Operation SPECIAL CAUTIONS WARNING This lift is NOT meant for human transportation. Pay attention to the following special cautions Any use other than the intended use identified while operating your chair or scooter. will VOID the warranty and could result in •... -
Page 8: Lowering The Lift
OUTLANDER VEHICLE LIFTS: SECTION 3 OPERATION LOWERING THE LIFT POSITIONING THE MOBILITY DEVICE ONTO THE PLATFORM 1. Insert the key and turn the switch to the ON position. 1. Position your mobility device slowly. 2. Press DOWN on the toggle switch. The platform 2. -
Page 9: Securing The Mobility Device Outlander Full
OUTLANDER VEHICLE LIFTS: SECTION 3 OPERATION SECURING THE MOBILITY Notes for scooter lifts with a DEVICE OUTLANDER FULL hold-down foot assembly For the Outlander Full, the type of securement device On some scooters, it may be necessary to temporarily it uses, you may wish to raise the platform halfway by move the steering tiller forward to clear the hold- using the UP toggle switch. -
Page 10: Unloading The Chair
OUTLANDER VEHICLE LIFTS: SECTION 3 OPERATION UNLOADING THE CHAIR NOTICE 1. Insert the key and turn the switch to the ON DO NOT leave the lift platform on the ground. Keep position. the platform in its stowed position when not in use or 2. -
Page 11: Opening The Swing-Away
OUTLANDER VEHICLE LIFTS: SECTION 3 OPERATION 2. Push red latch ball. See Figure 3-10. WARNING ONLY open the swing-away on level ground. Failure to open the swing-away on level ground may result in losing control of the lift, resulting in personal injury or damage to property. See Figure 3-8. -
Page 12: Closing The Swing-Away
OUTLANDER VEHICLE LIFTS: SECTION 3 OPERATION CLOSING THE SWING-AWAY 2. Install the safety pin. Be sure that the safety pin is fully inserted to the ring. Close the swing-away by returning it to the stowed See Figures 3-14 and 3-15. position. -
Page 13: Maintenance
OUTLANDER VEHICLE LIFTS: SECTION 4 MAINTENANCE Section 4 Maintenance This outside vehicle lift is designed to be as trouble free as possible. However, some basic maintenance will ensure that it continues to offer reliable use for years to come. • Oil pivot points on all moving parts every Six (6) months. -
Page 14: Troubleshooting
OUTLANDER VEHICLE LIFTS: SECTION 5 TROUBLESHOOTING Section 5 Troubleshooting If the lift doesn’t have power when you turn the key on: • Make sure the lift harness and vehicle harness Figure 5-1 are connected. 2. Using a coin or key, remove the cap on the top •... -
Page 15: Motor Covering Wiring Schematic
OUTLANDER VEHICLE LIFTS: SECTION 6 MOTOR COVER WIRING SCHEMATIC Section 6 Motor Cover Wiring Schematic Pole reversing switch Key switch Actuator light Circuit breaker 12 V Ba‚ery Vehicle harness Motor cover light Trailer plug Outlander Vehicle Lifts: Owner’s Manual 30JULY2020 | 630-00132 REV B... -
Page 16: Warranty
Section 7 3-Year Transferable Warranty Your lift came with a separate warranty page. Harmar Mobility warrants its lift products against You must turn this page in within ten (10) days of defects in material, mechanical and electrical purchase to register your lift. - Page 17 OUTLANDER VEHICLE LIFTS: SECTION 7 WARRANTY PRODUCT INFORMATION PURCHASER INFORMATION Model: Name: Serial Number: Address: Purchase Date: Phone: INSTALLER INFORMATION Email: Company Name: ADDITIONAL INFORMATION Contact Name: How did you hear about Harmar? Address: Harmar Dealer Phone: Internet ...
- Page 18 OUTLANDER VEHICLE LIFTS: SECTION 7 WARRANTY This page intentionally left blank Outlander Vehicle Lifts: Owner’s Manual 30JULY2020 | 630-00132 REV B...
- Page 19 NOTES Outlander Vehicle Lifts: Owner’s Manual 30JULY2020 | 630-00132 REV B...
- Page 20 2075 47 Street | Sarasota, FL 34234 800.833.0478 harmar.com...
