3Com Router 5000 Family
Installation Guide
Relative humidity
(noncondensing)
Note:
SDRAM (synchronous dynamic random-access memory): As the primary memory,
stores data for communication with CPU during system operation.
Flash memory: As the primary file storage media, stores application programs,
anomaly information, configuration file.
Boot ROM: Stores Bootstrap program.

2.4 3COM ROUTER 5232 Router

2.4.1 Appearance

1) POWER
3) AUX
5) SLOT1~3 (READY/ACTIVE)

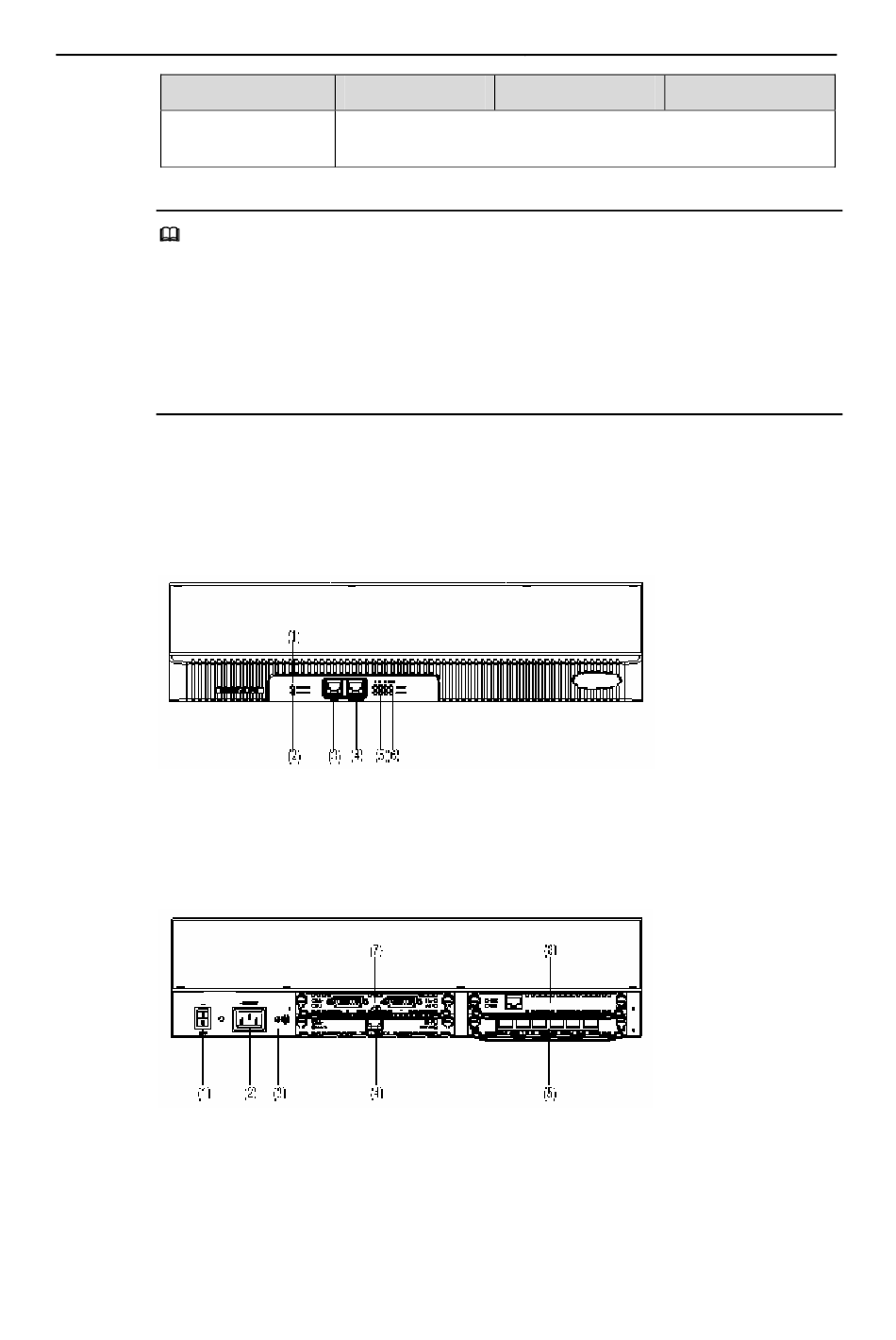

Figure 2-11 Front view of 3COM ROUTER 5232 Router
1) Power switch
3) Grounding screw
5) MIM SLOT1
7) MIM SLOT3
Figure 2-12 Rear view of 3COM ROUTER 5232
Item
5012A
5% to 90%
3Com Corporation
Chapter 2 System Specifications
5013
2) SYSTEM
4) CON
6) LAN (READY/ACTIVE)
2) Power socket
4) Fixed interface (ETERNET0)
6) MIM SLOT2
2-10
5014
