3Com Router 5000 Family
Installation Guide
(1) SIC slot 3
(3) Power switch
(5) Grounding screw
(7) Console port (CON)
(9) Fixed Ethernet interface (LAN0)
(11) MIM slot 1

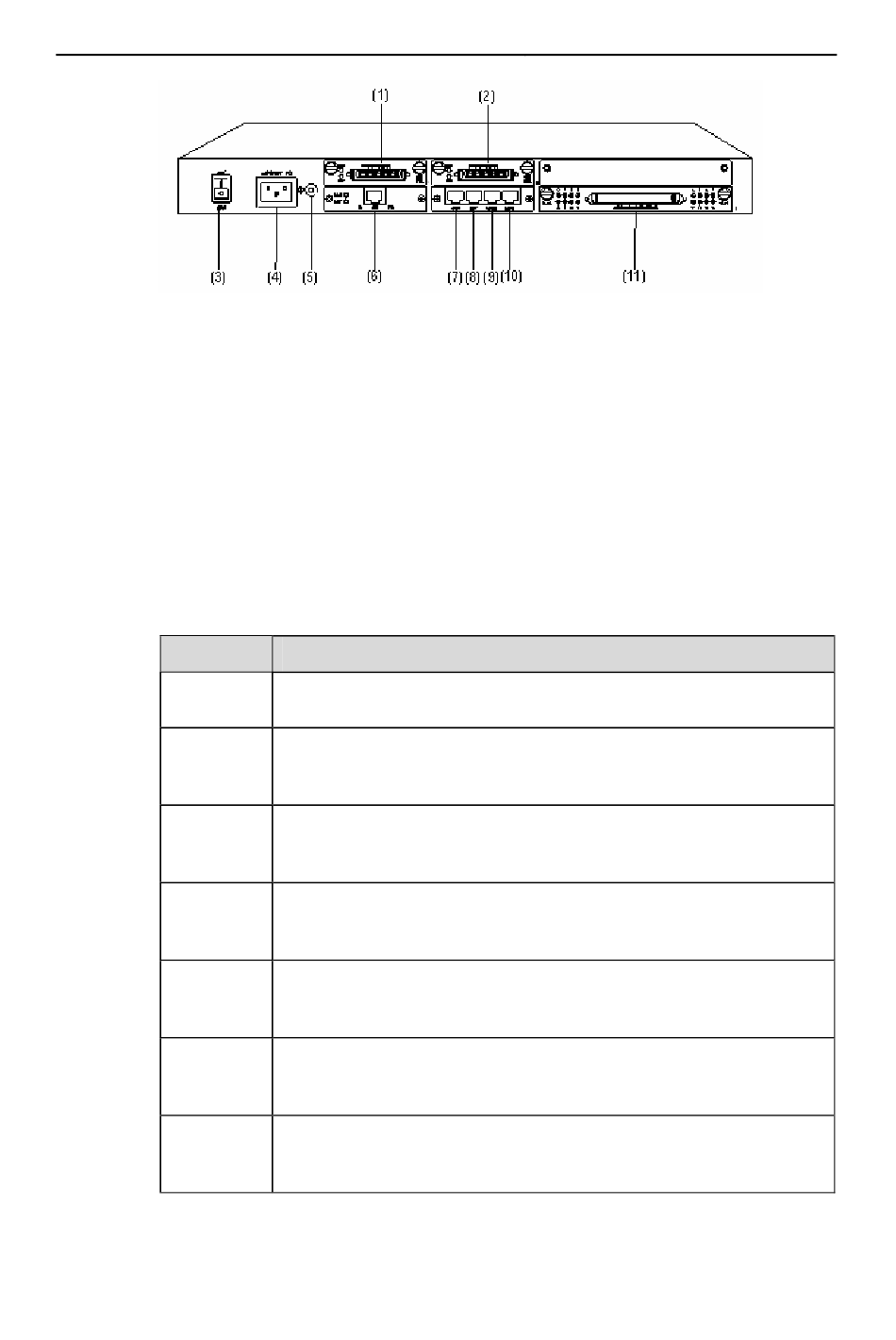

Figure 2-10 Rear view of 3Com Router 5014 (AC-input type) Router
2.3.2 Panel LEDs
Seven LEDs are provided on the front panel of 3Com Router 5012A/5013/5014 Router.
Their meaming is explained in the following table:
Table 2-5 LEDs on the front panel of 3COM ROUTER 5012A/5013/5014 Router
LED
POWER
SYSTEM
SLOT1
SLOT2
SLOT3
LAN0
LAN1
System power LED: OFF means power is off, ON means power is on.
Hardware system operating LED. Blinking means that the system is
in normal operation. Keeping ON or OFF means that the system is in
abnormal operation.
MIM LED. ON indicates that the interface module operates normally.
OFF indicates that no module is installed in the slot or the module
cannot operate properly.
SIC LED. ON indicates that the interface card operates normally.
OFF indicates that no interface card is installed in the slot or the
interface card cannot operate properly.
SIC LED. ON indicates that the interface card operates normally.
OFF indicates that no interface card is installed in the slot or the
interface card cannot operate properly.
Fixed Ethernet interface 0 LED shows the status of data transmission
on the fixed Ethernet interface. OFF means that no data is being
transceived. Blinking means that data is being transceived.
Fixed Ethernet interface 1 LED shows the status of data transmission
on the fixed Ethernet interface. OFF means that no data is being
transceived. Blinking means that data is being transceived.
3Com Corporation
2-8
Chapter 2 System Specifications
(2) SIC slot 2
(4) Power socket
(6) Fixed interface (WAN0)
(8) Auxiliary port (AUX)
(10) Fixed Ethernet interface (LAN1)
Indication
