3Com Router 5000 Family
Installation Guide

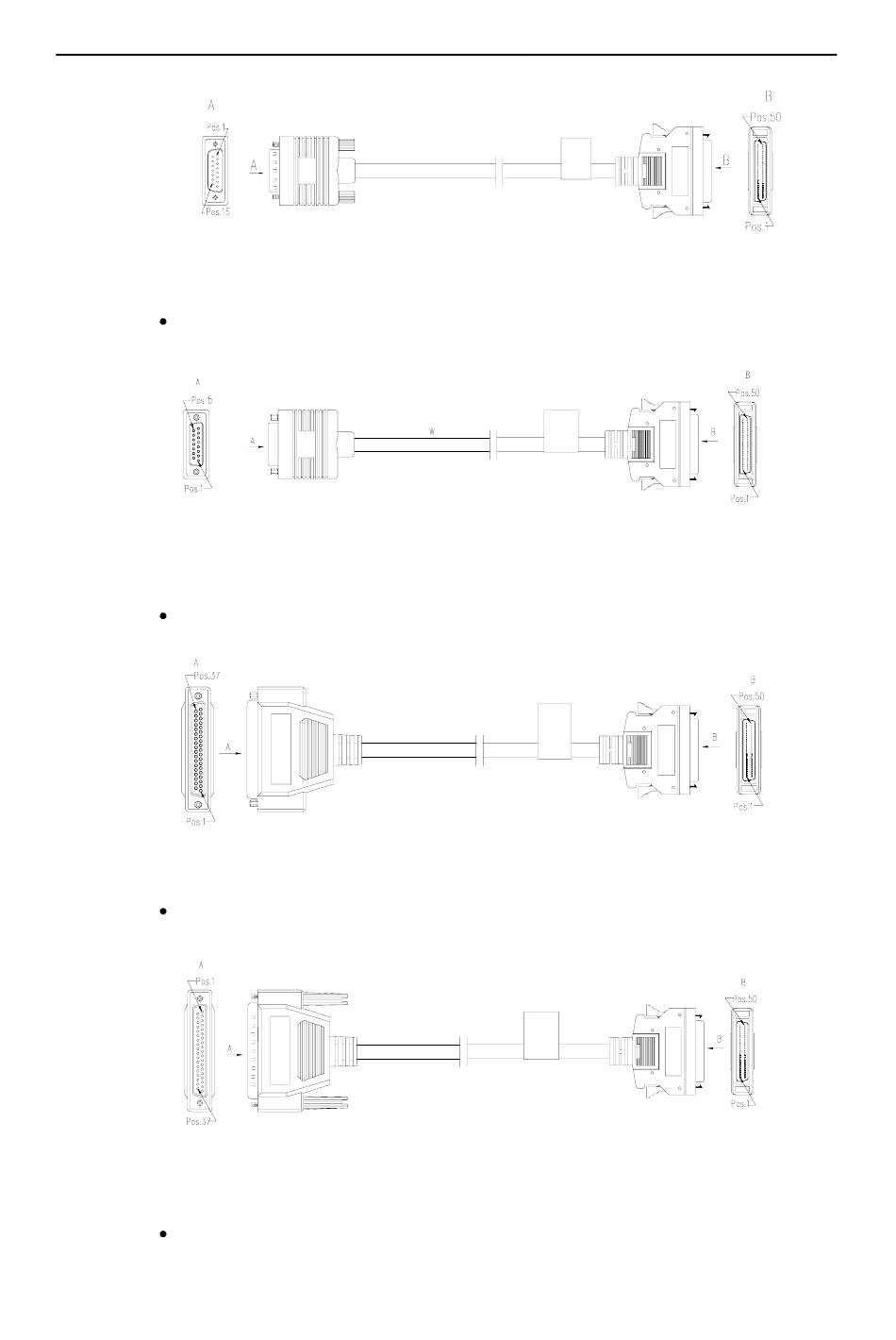

Figure 4-16 X.21 DTE cable assembly
X.21 DCE cable assembly
Figure 4-17 X.21 DCE cable assembly
RS449 DTE cable assembly
Figure 4-18 RS449 DTE cable assembly
RS449 DCE cable assembly
Figure 4-19 RS449 DCE cable assembly
RS530 DTE cable assembly
3Com Corporation
4-17
Chapter 4 Installation of the Router
