UG-1698
5. Select Single Tone from Add Generated Waveform, as
shown in Figure 10. A single tone panel is added to the
vector list.
6. Enter 2.458 GHz in Data Rate (or DAC clock frequency).
7. Enter 16 bits in DAC Resolution.
The AD9166 resolution is 16 bits. The
either 16-bit or 11-bit data because the JESD204B data
packing engine packs data in 8-bit sizes. If 11-bit data is
chosen, the DPGDownloader software appends zeros to
the data-words to create 16-bit words for transfer to the
data framer. Because the datapath is 16 bits, Analog Devices
recommends sending 16-bit data to the device so that true
16-bit math is computed with truncation happening prior
to the DAC decoder. Sending 16-bit data this way can
improve spurious performance compared to sending
11-bit data.
AD9166 can receive

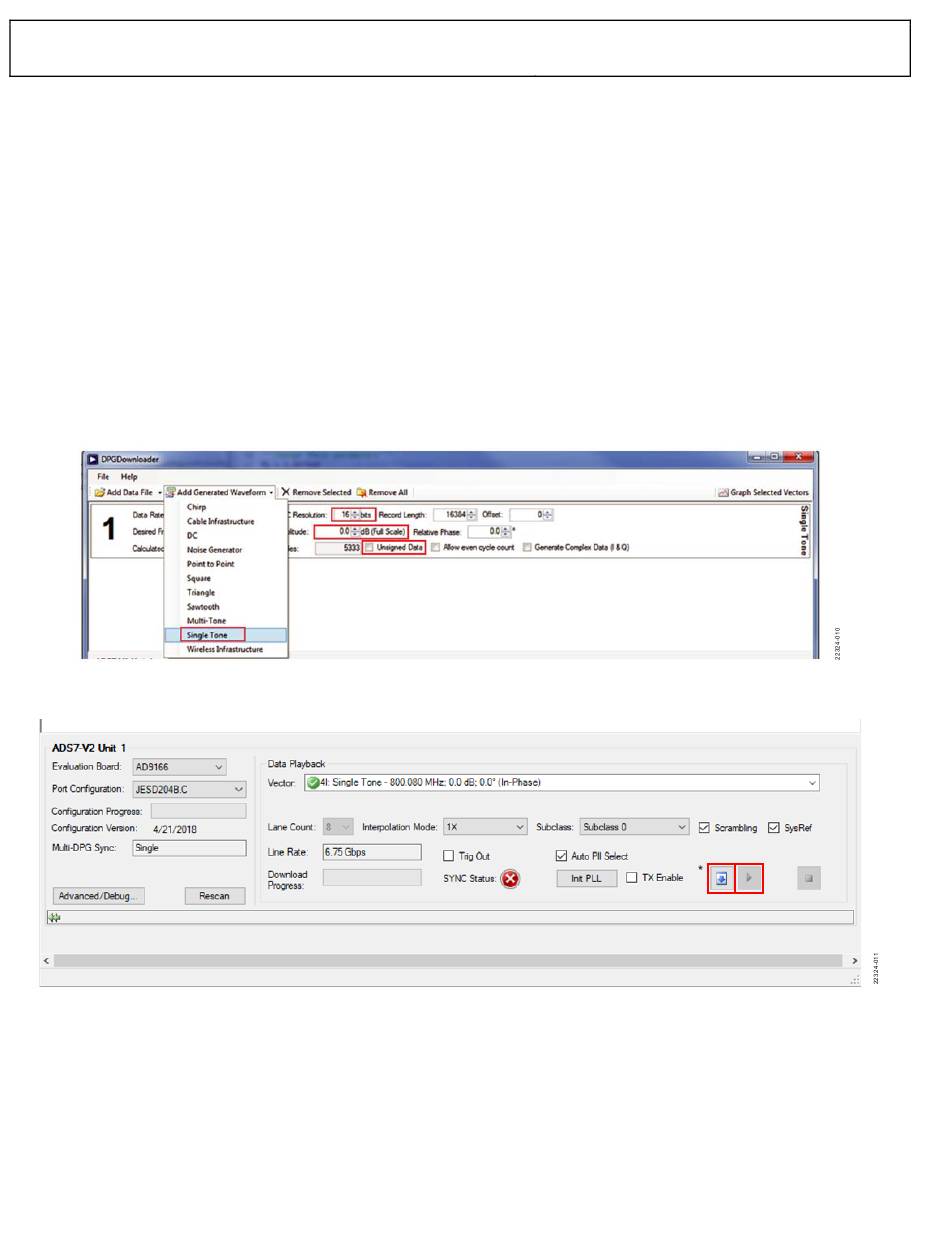

Figure 10. Choose Single Tone as the Vector Type
Figure 11. DPGDownloader: Selected Vector and Downloaded to the
Rev. 0 | Page 12 of 23
AD9166-FMC-EBZ
8. Enter 800 MHz in Desired Frequency.
9. Keep 0.0 dB in Amplitude.
10. Clear the Unsigned Data box because the
accepts twos complement data. Ensure that Generate
Complex Data (I & Q) is not selected.
11. From the Vector dropdown list, select 4I: Single Tone –
800.080 MHz; 0.0 dB; 0.0° (In-Phase) as the data vector.
12. Leave the other options at the default values. The SYNC
Status indicator may show a red cross, as shown in Figure 11.
13. Click the download button to download the pattern from
the computer to the ADS7-V2EBZ
14. Wait for the play button to become active, and then click
the play button to begin vector playback to the AD9166-
FMC-EBZ evaluation board.
DOWNLOAD
ADS7-V2EBZ
User Guide
AD9166 only
unit.
PLAY
BUTTON BUTTON
