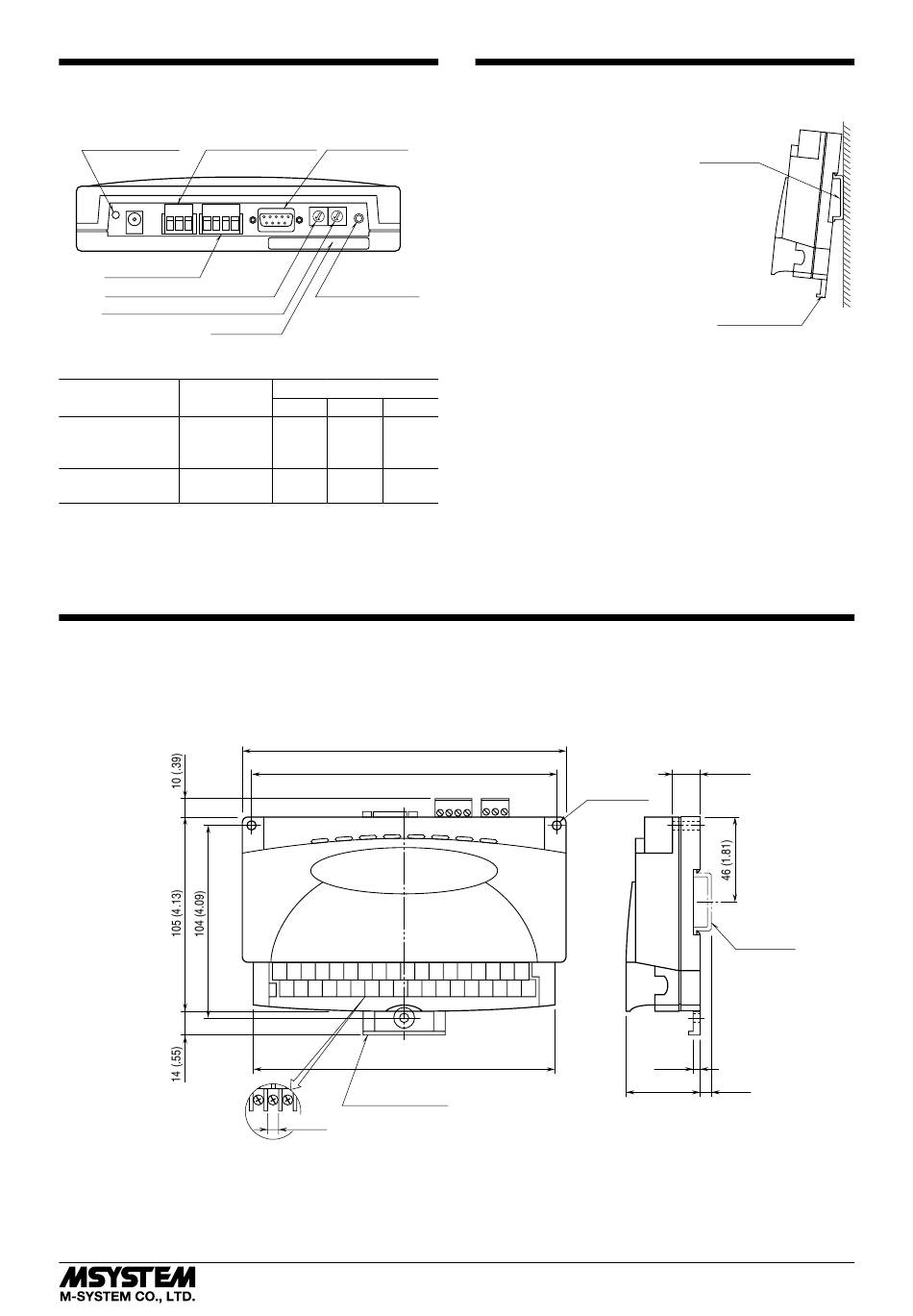

COMPONENT IDENTIFICATION

■ REAR VIEW
RUN Indicator LED Power / FG Terminals
RS-485 Connector
Node Address Setting Rotary SW
Operating Mode Setting Rotary SW
Specifications
■ OPERATING MODE
COLD JUNCTION LINE NOISE
COMP. (T/C) FREQUENCY
With 50/60 Hz
50 Hz
60 Hz
Without 50 Hz
60 Hz
Note 1: AD conversion rate is half as long as the line fre-
quency.
Note 2: Specifying the exact frequency (50 Hz and 60 Hz) pro-
vides better protection than 50/60 Hz setting.
Note 3: Factory default setting is '1.'

TERMINAL CONNECTIONS

Connect the module referring to the connection diagram.
■ EXTERNAL DIMENSIONS unit: mm (inch)
36–M3 I/O TERMINALS
RS-232-C
9-pin Connector
Configurator Jack
BURNOUT (T/C)
NONE UP DOWN
1 2 3
4 5 6
7 8 9
A B C
D E F
175 (6.89)
165 (6.50)
T1 T2 T3 T4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 35
163 (6.42)
FOR WALL MOUNT.
6.2 (.24)
