CommScope iPatch 360-iP-UP-KIT-PMAX-24 Instruction Sheet

®
iPatch Ready Upgrade Module for SYSTIMAX 360
Instruction Sheet
Material ID 860 489 913
Issue 1, August 2010

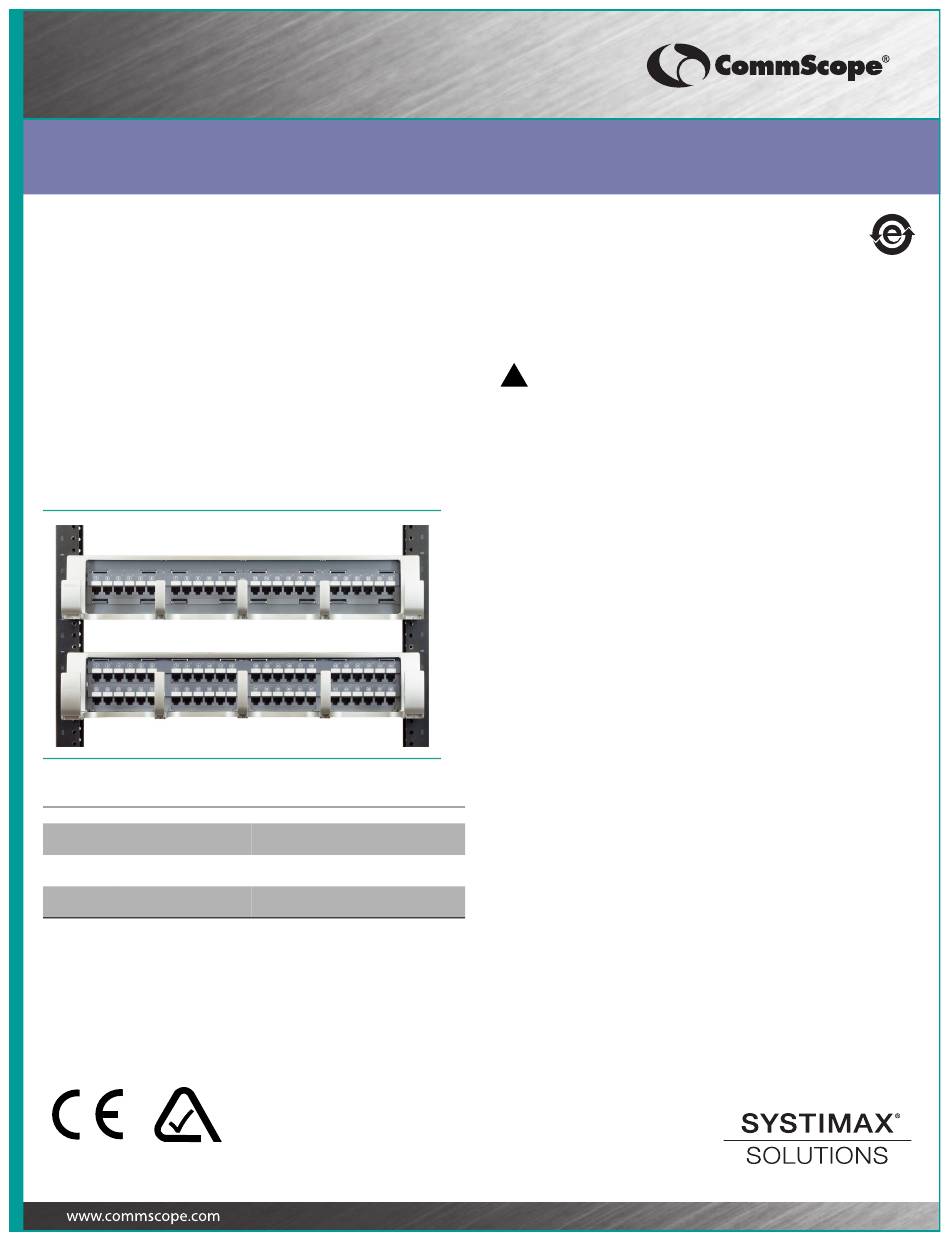

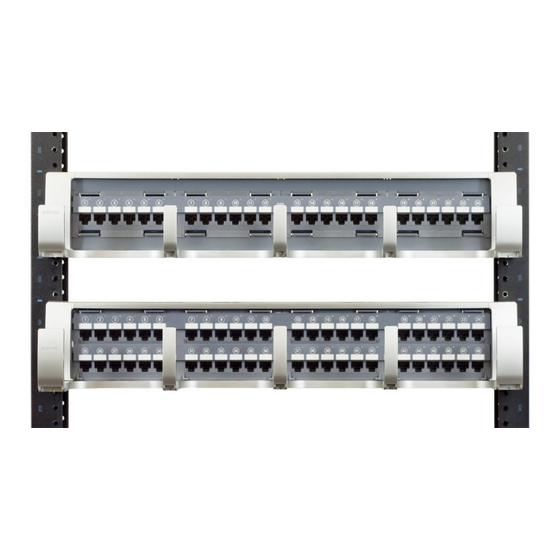

These instructions describe how to install iPatch
Ready Upgrade Modules to convert standard
SYSTIMAX 360™ PATCHMAX
iPatch panels. A single upgrade module is used to
upgrade a 24-port panel. Two upgrade modules are
used to upgrade a 48-port panel. The upgraded patch
panels can be used in an iPatch System for both
EIA-T568A or EIA-T568B wiring applications. The iPatch
Ready Upgrade Module is a SYSTIMAX
product.
Ordering information is listed below.
Material ID Product Code
760130419 360-iP-UP-KIT-PMAX-24 360 iPatch PATCHMAX 24-port upgrade
760130427 360-iP-UP-KIT-PMAX-48 360 iPatch PATCHMAX 48-port upgrade
760149096 360-iP-JMPR-PMAX
Save these instructions.
ACN 107 198 425
The iPatch System is covered by U.S. patents 6285293 and 6522737,
and other U.S. and foreign patents and patents pending.
®
®
Modular Panels to
®
approved
Description
(for 10 panels)
(for 5 panels)
360 iPatch PATCHMAX Cable Bus
Jumpers (10 jumpers)
™ ®
iPatch PATCHMAX
Important Safety Instructions
To reduce the risk of fire, electric shock, and injury to persons, read,
understand, and adhere to the following instructions as well as any
warnings marked on the product.
!
CAUTION
Remote risk of electric shock. Never install the product in wet
locations or during lightning storms. Never touch uninsulated
communication wires or terminals.
Note: All wiring that connects to this equipment must meet
applicable local and national building codes and network wiring
standards for communication cable.
iPatch Ready Upgrade Modules use infrared sensing
Important:
technology and should be installed where they are not exposed to
direct sunlight or other infrared sources.
Task Overview
To convert a rack with standard SYSTIMAX 360 PATCHMAX
Modular Panels to SYSTIMAX 360 iPatch Panels for use with an
iPatch System, you must perform the following tasks:
Task 1. Mount a panel bus for the rack.
Task 2. Install an iPatch Manager to supervise the rack.
Task 3. Install the iPatch Ready Upgrade Modules.
Task 4. Program the order of the panels in the rack.
Task 1. Mount the Panel Bus
A panel bus must be installed on each rack where you plan to
upgrade panels. The panel bus allows the iPatch Manager and
iPatch Panels to communicate. Also, the iPatch Manager supplies
power to the iPatch Panels through the panel bus.
The panel bus must be installed to the left on the rack (viewed from
the front). The preferred location is the back corner of the rack's left
rail. The area where the panel bus will be mounted must be free of
protrusions, such as threaded inserts, nuts, and bolts.
Note: To mount the panel bus on a rack other than a 7-foot rack or
on a rack with a hole pattern other than the universal hole pattern,
contact your SYSTIMAX Solutions local account representative.
For instructions to install the panel bus for the rack, see the
® ®
SYSTIMAX iPatch System Panel Manager Guide
®
Modular Panels
.
