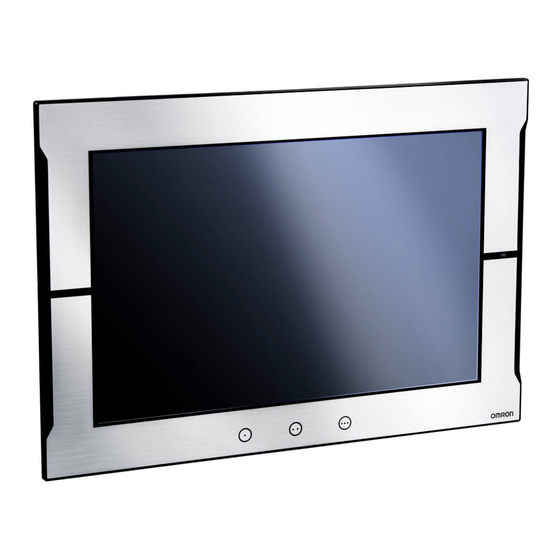

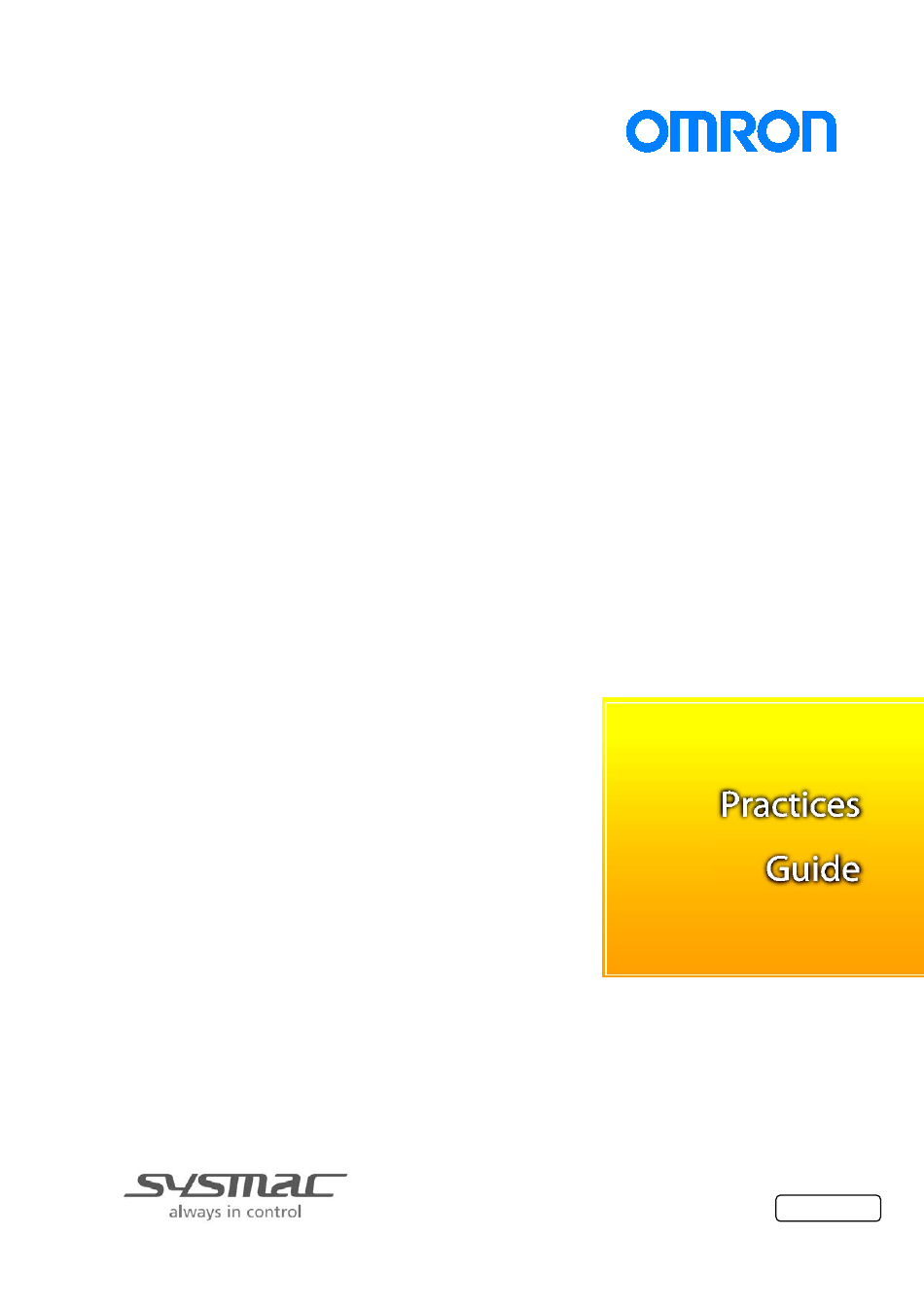

Programmable Terminal NA Series
Practice Guide
IAG Collection for NXR-ILM
IO-Link Master Unit Monitor
NA5-15□101□
NA5-12□101□
V458-E1-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Omron NA Series

Summary of Contents for Omron NA Series

  • Page 1 Programmable Terminal NA Series Practice Guide IAG Collection for NXR-ILM IO-Link Master Unit Monitor NA5-15□101□ NA5-12□101□ V458-E1-01...
  • Page 2 This guide describes reference information to create and use IAG objects. It does not provide safety information for an entire system. Be sure to obtain the manuals for NA Series Programmable Terminal, read and understand the safety points and other information required for use, and test sufficiently before actual use of the...

  • Page 3: Terms And Conditions Agreements

     Note about Descriptions Rating and performance is tested separately. Combined conditions are not warranted. - Reference data is intended to be used just for reference. Omron does NOT guarantee that the Omron Product can work properly in the range of reference data.
  • Page 4 - Omron products are designed and manufactured as commodity for general industrial products. For this reason, the usages (a) to (d) are to be unintended. Omron makes no guarantees on Omron products, if you use Omron products for those purposes. However, special applications that Omron expects or usages with especial agreement are excluded.
  • Page 5 The warranty described in this Terms and Conditions Agreements is a whole and sole liability for Omron products. There are no other warranties, expressed or implied. Omron and its distributors are not liable for any damages arisen from or relating to Omron products.

  • Page 6: Table Of Contents

    Table of Contents Terms and Conditions Agreements ..............3 Table of Contents ....................6 １ Related Manuals..................7 ２ Precautions ....................8 ３ Overview ....................10 Overview ......................10 ３-１ ３-２ System Configuration ..................11 ４ Library Versions..................12 ５ IAG Descriptions ..................

  • Page 7: Related Manuals

    １ Related Manuals Model Title V117 NA5-15W□□□□ Programmable Terminal NA Series Hardware USER’S NA5-12W□□□□ MANUAL NA5-9W□□□□ NA5-7W□□□□ V118 NA5-15W□□□□(-V1) Programmable Terminal NA Series Software USER’S NA5-12W□□□□(-V1) MANUAL NA5-9W□□□□(-V1) NA5-7W□□□□(-V1) V119 NA5-15W□□□□(-V1) Programmable Terminal NA Series Device Connection NA5-12W□□□□(-V1) USER'S MANUAL NA5-9W□□□□(-V1)

  • Page 8: Precautions

    This information is provided to increase understanding or make operation easier. Copyrights and Trademarks  Sysmac® is the trademark or registered trademark of Omron Corporation in Japan and other countries for Omron factory automation products.  Screenshots are used in accordance with Microsoft Corporation guidelines.
  • Page 9  EtherNet/IP™ and CIP Safety™ are trademarks of ODVA, Inc.  Company names and product names in this document are the trademarks or registered trademarks of their respective companies.

  • Page 10: Overview

    ３ Overview ３-１ Overview This document describes IAG collections that directly read the information from the NXR-ILM Unit, IO-Link master unit connected with the NA Series HMI via EtherNet/IP. • IAG external specifications • IAG installation on a screen Icon...

  • Page 11: ３-２ System Configuration

    ３-２ System Configuration The IAG objects were tested with the system configuration and versions below. NA Series SysmacStudio projects with IAGs EtherNet/IP Screen Transfer PC (SysmacStudio) CIP Safety on EtherNet/IP devices ■Controller NX-CSG320 NX102 Series Series Series ■Ring Super Visor...

  • Page 12: Library Versions

    ４ Library Versions This chapter describes the versions of the IAG library. You must check versions of the items listed in the table below before using the library. Item Description How to Check the Version IAG Collection The distributed IAG collection has The version can be checked in the library versions.

  • Page 13: Iag Descriptions

    ５ IAG Descriptions ５-１ IOStatus_Monitor 5-1-1 Specifications  External Specifications Object IOStatus_Monitor Category NXR_ILM_Monitor ・ Displays LED conditions of the NXR-ILM Unit (IO-Link master unit) with the selected Functions IP address. ・ Displays models and communication statuses of connected IO-Link units. ・...
  • Page 14  Screen Specifications Status Displays the information of the IO-Link master unit whose IP address is notified externally. Screen Part Description DataDisplay IP address of the selected device is displayed. Group Unit status is displayed. Refer to No. 8 and later for details. Button The LED that indicates the location of the IO-Link master unit on the screen is lit when this button is pressed.
  • Page 15 Device This window shows the device information. Information Window User I/F Specifications Part Description DataDisplay Unit model is displayed. DataDisplay Unit version is displayed DataDisplay Lot number is displayed. DataDisplay Serial number is displayed. DataDisplay Hardware version is displayed. DataDisplay MAC address is displayed.
  • Page 16 Communication This pop-up window notifies that communications between the NA and IO-Link master unit were failed. Error Window User I/F Specifications Part Description Button Switches the window to the previously shown screen. Layout Properties Default Description Position (Left, Fixed ▼Size (Width, Fixed Height)
  • Page 17 (1 to 127) Type Object type. Not changeable. NXR_ILM_Monitor. IOStatus _Monitor Version IAG version 1.0.0.0 Publisher IAG publisher Omron Promotion Sample Appearance Background Color Background color of a page Item selection Color pallet Transparent Direct input Character string Layout ▼Position (Left , Top) Position setting of an object in a page.
  • Page 18  Version History IAG version Description IAG collection version 1.0.0.0 First edition Ver1.00  Events & Actions The following IAG event can be detected. Event Description ShowPortStatusEvent Detects the event that an IO-Link port status button on the screen is pressed to be selected. Detects the event that an NXR-D Series (IO-Link HUB) device name button on the screen is SelectNXR_D_SeriesEvent pressed to be selected.
  • Page 19 5-1-2 Installation to Screen This IAG is intended to be used as the following:  When the button for NXR- ILM Unit, which is displayed by the IAG EtherNet_IP_Network Monitor or DLR_Monitor located on the screen, is pressed, the currently displayed screen switches to the screen with this IAG and the IAG accesses to the Unit to receive the necessary information to display.
  • Page 20 For this screen design, implement the settings described below.  Events and Actions Settings for Previous Screen Set the action ShowPage for the event SelectILMMaster of the IAGs, EtherNet_IP_NetworkMonitor and DLR_Monitor. Then enter the page name in which this IAG is placed.

  • Page 21: Eipstatus_Monitor

    ５-２ EIPStatus_Monitor 5-2-1 Specifications  External Specifications Object EIPStatus_Monitor Category NXR_ILM_Monitor ・ Reads and displays LED conditions of the IO-Link master unit whose IP address has Functions been notified from EtherNet/IP Monitor. ・ Reads and displays the device information on the IO-Link master unit NXR-ILM08C. ・...
  • Page 22  Screen Specifications ・ Reads and displays the device information on the IO-Link master unit NXR-ILM08C. Status ・ Reads and displays the information on Ethernet port connection statuses. Screen ・ Displays logs of FCS errors and outputs to an output variable. Part Description DataDisplay...
  • Page 23 DateTime Displays the logging times. DataDisplay Displays FCS error frequencies per sampling cycle. DataDisplay Displays integrated values of FCS errors. DropDown Select and display a sampling cycle for logging. Options: 1, 10, and 60 (s). Default is 1 DataEdit Displays a threshold to determine abnormal FCS error frequency. Range: 1 to 500 (frequency).
  • Page 24 (1 to 127) Type Object type. Not changeable. NXR_ILM_Monitor. EIPStatus_Monitor Version IAG version 1.0.0.0 Publisher IAG publisher Omron Promotion Sample Appearance Background Color Background color of a page Item selection Color pallet Transparent Direct input Character string Layout ▼Position (Left , Top) Position setting of an object in a page.
  • Page 25 Precautions for Correct Use The use case in this guide does not require settings for IO variables CurrentPageName and ExitMonitor. Leave them blank; if not, the IAG may perform an unintended operation.  Version History IAG version Description IAG collection version 1.0.0.0 First edition Ver1.00...
  • Page 26 5-2-2 Installation to Screen This IAG is intended to be used as the following:  When the button for NXR- ILM Unit, which is displayed by the IAG EtherNet_IP_Network Monitor or DLR_Monitor located on the screen, is pressed, the currently displayed screen switches to the screen with this IAG and the IAG accesses to the Unit to receive the necessary information to display.
  • Page 27 For this screen design, implement the settings described below.  Events and Actions Settings for Previous Screen Set the action ShowPage for the event SelectILMMaster of the IAGs, EtherNet_IP_NetworkMonitor and DLR_Monitor. Then enter the page name in which this IAG is placed.

  • Page 28: Dcvoltage_Monitor

    ５-３ DCVoltage_Monitor 5-3-1 Specifications  External Specifications Object DCVoltage_Monitor Category NXR_ILM_Monitor ・ Reads and displays LED conditions of the IO-Link master unit whose IP address has Functions been notified from EtherNet/IP Monitor. ・ Displays input/output power supply voltage logs of the IO-Link master unit. This IAG consists of one screen and two pop-ups.
  • Page 29  Screen Specifications Power Displays input/output power supply voltage of the IO-Link master unit. Status Screen Logs input/output power supply voltage per sampling cycle Part Description DataDisplay IP address of the selected device is displayed. Group Units’ information is shown. Refer to No. 15 and later for details. Button The LED that indicates the location of the IO-Link master unit on the screen is lit when this button is pressed.
  • Page 30 DataEdit Displays upper and lower voltage limits. Default upper limit: 26.4 VDC, Default lower limit : 20.4 VDC (Rated voltage range) Note: Upper and lower limits must be set within the rated voltages Lamp Unit status is displayed. Lamp Network condition is displayed. Lamp Displays EtherNet1 port condition.
  • Page 31 Communication This pop-up window notifies that communications between the NA and IO-Link master unit were failed. Error Window User I/F Specifications Part Description Button Switches the window to the previously shown screen. Layout Properties Default Description Position (Left, Fixed ▼Size (Width, Fixed Height)
  • Page 32 (1 to 127) Type Object type. Not changeable. NXR_ILM_Monitor. DCVoltage_Monitor Version IAG version 1.0.0.0 Publisher IAG publisher Omron Promotion Sample Appearance Background Color Background color of a page Item selection Color pallet Transparent Direct input Character string Layout ▼Position (Left , Top) Position setting of an object in a page.
  • Page 33 Precautions for Correct Use The use case in this guide does not require settings for IO variables CurrentPageName and ExitMonitor. Leave them blank; if not, the IAG may perform an unintended operation.  Version History IAG version Description IAG collection version 1.0.0.0 First edition Ver1.00...
  • Page 34 5-3-2 Installation to Screen This IAG is intended to be used as the following:  When the button for NXR- ILM Unit, which is displayed by the IAG EtherNet_IP_Network Monitor or DLR_Monitor located on the screen, is pressed, the currently displayed screen switches to the screen with this IAG and the IAG accesses to the Unit to receive the necessary information to display.
  • Page 35 For this screen design, implement the settings described below.  Events and Actions Settings for Previous Screen Set the action ShowPage for the event SelectILMMaster of the IAGs, EtherNet_IP_NetworkMonitor and DLR_Monitor. Then enter the page name in which this IAG is placed.

  • Page 36: Multistatication_Viewer

    ５-４ MultiStatication_Viewer 5-4-1 Specifications  External Specifications Object MultiStatication_Viewer Category NXR_ILM_Monitor ・ Displays logs acquired in other screens for the NXR-ILM08C IO-Link master unit in a Functions graph. ・ Displays logs of FCS error frequency in a graph. ・ Displays logs of input/output power supply voltage in a graph. This IAG consists of one screen.
  • Page 37  Screen Specifications Statistical Displays logs acquired in other screens in a graph. Information Graph Screen Part Description DataDisplay Selected ILM Unit’s IP address is displayed. Button Displays logs acquired in the EIP Status Screen. Button Displays logs acquired in the DC Power Status Screen. Button It is for expansion and not shown in the actual NA.
  • Page 38 (1 to 127) Type Object type. Not changeable. NXR_ILM_Monitor. MultiStatication_Viewer Version IAG version 1.0.0.0 Publisher IAG publisher Omron Promotion Sample Appearance Background Color Background color of a page Item selection Color pallet Transparent Direct input Character string Layout ▼Position (Left , Top) Position setting of an object in a page.
  • Page 39 1: Transparent 2: The origin of coordinates locates at the top left corner of NA screen. Precautions for Correct Use The use case in this guide does not require settings for IO variables PreviousPageName, CurrentPageName and ExitMonitor. Leave them blank; if not, the IAG may perform an unintended operation.
  • Page 40 5-4-2 Installation to Screen This IAG is intended to be used as the following:  Loading logs acquired in other screens through variables: FCS error frequency logs of the IAG EIPStatus_Monitor and DC voltage logs of the IAG DCVoltage_Monitor.  Creating a common background screen shared with the screen where log data is acquired and the screen where this IAG is placed.
  • Page 41 Switches the screen ■Related Screen (log data acquiring screen 1) Screen switching button area ■Related Screen (log data acquiring screen 2) Screen switching button area ■Screen with IAG Screen switching button area Non-retentive variable area SelectDeviceIPAddress ■Common Background Screen LogPort1FCSErrorCount LogPort1FCSErrorTime LogPort2FCSErrorCount LogPort2FCSErrorTime...
  • Page 42 To use this functionality, implement the settings described below.  IAG Property Assignment (Log Data Acquiring Screen) Assign the variables to the following properties (Input/Output) for EIPStatus_Monitor. Property (Input/Output) Description Variable Variable Data Type SelectDeviceIPAddress IP address of the connected unit SelectDeviceIPAddress String LogPort1FCSErrorCount...
  • Page 43  Common Background Screen Setting Place screen switching buttons on the Common Background Screen. Set the action ShowPage to the button event Release, and then, enter the page name. Switches to the page where the IAG EIPStatus_Monitor is placed. Switches to the page where the IAG DCVoltage_Monitor is placed.

  • Page 44: Displaying Multiple Iag Screens And Linking Them To Eip Monitor Screen

    ５-５ Displaying Multiple IAG Screens and Linking Them to EIP Monitor Screen Combination of this IAG collection and the IAG EtherNet_IP_NetworkMonitor or DLR_Monitor enables the EIP Monitor Screen in other page to display various information about the NXR-ILM Unit. This section provides how to perform the following processing. ...
  • Page 45 When the NXR- ILM Unit is selected and its button is pressed in the EtherNet_IP_NetworkMonitor IAG or the DLR_Monitor IAG, the screen switches to the page where the IAG IOStatus_Monitor is placed. The screen switches to each When you press the Return button, the currently page when a screen switching displayed screen switches to the page where the IAG button is pressed.
  • Page 46 To use these functionalities, implement the settings described below.  Events and Actions Settings for Previous Screen Set the action ShowPage to the events for both EtherNet_IP_NetworkMonitor and DLR_Monitor. Then enter the page name in which the IAG IOStatus_Monitor is placed. Event Description SelectILMMaster...
  • Page 47  IAG (DCVoltage_Monitor) Property Assignment (Destination Screen) Assign the variables to the following properties (Input/Output). Property (Input/Output) Description Variable Data Type SelectDeviceIPAddress IP address of the device to be displayed SelectDeviceIPAddress String PreviousPageName Name of the page displayed after this PreviousPageName String page is closed...
  • Page 48  Common Background Screen Setting 1 Allocate the Common Background Screen to all the screen with destination IAGs. Place screen switching buttons on the Common Background Screen next. Set the action ShowPage to the button event Release, and then, enter the page name. Switches the screen to the page where any of following IAGs is placed.
  • Page 49  Common Background Screen Setting 2 In the same way, place the Return button on the Common Background Screen. Then set the action ShowPage to the button event Release. Next, enter the name of the previous page in which the IAG EtherNet_IP_NetworkMonitor is placed. Return Screen switching button area IAG area...

  • Page 50: Revision History

    Revision History Revision Code Date Revision Description March 2020 First edition...
