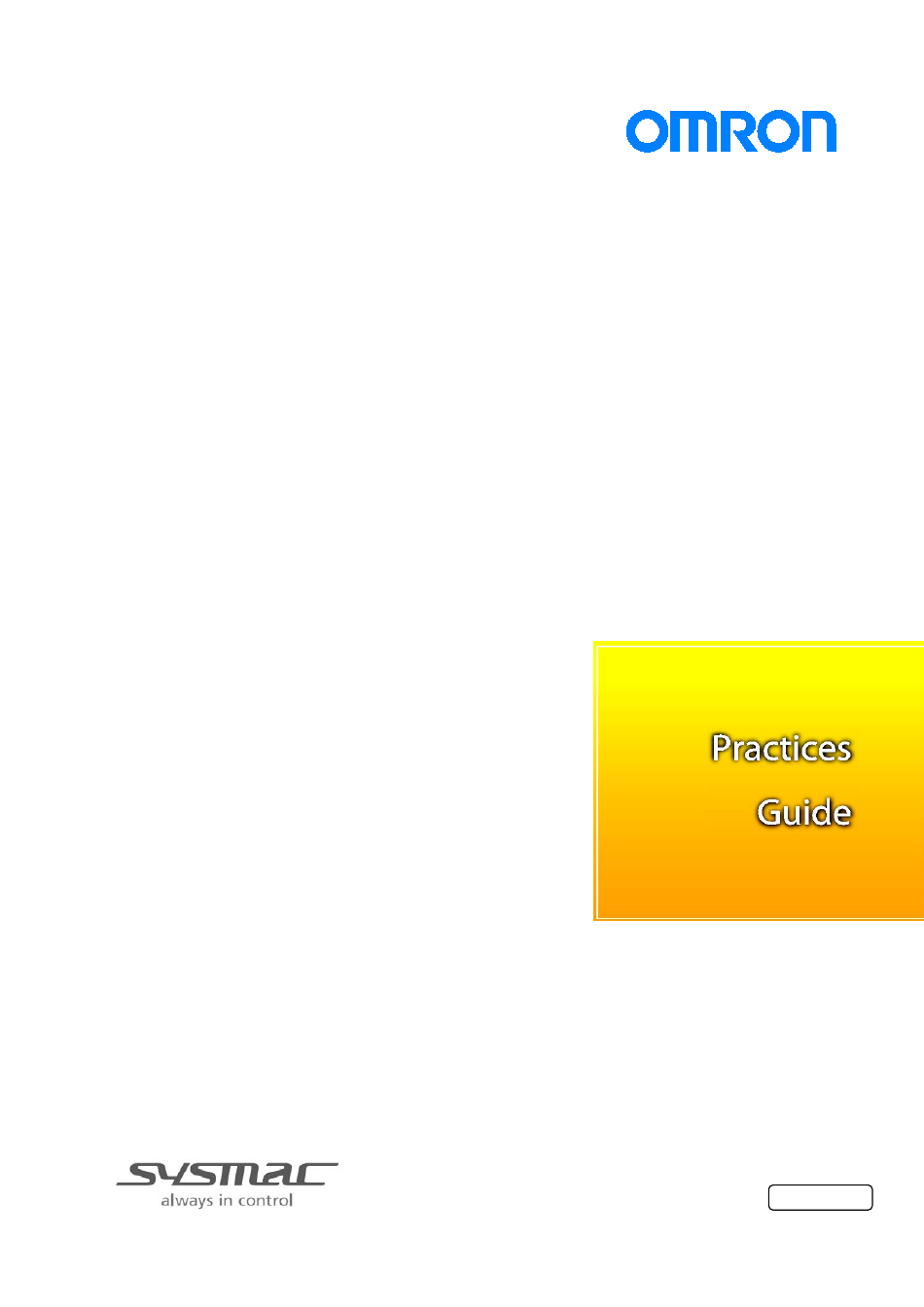

Programmable Terminal NA Series
Practice Guide
IAG Collection for
GI-S Safety I/O Terminal Unit Monitor
NA5-15□101□
NA5-12□101□
V456-E1-01

Advertisement

Table of Contents
loading

Related Manuals for Omron NA5-15 101

Summary of Contents for Omron NA5-15 101

  • Page 1 Programmable Terminal NA Series Practice Guide IAG Collection for GI-S Safety I/O Terminal Unit Monitor NA5-15□101□ NA5-12□101□ V456-E1-01...
  • Page 2 ■ Introduction This guide describes reference information to create and use IAG objects. It does not provide safety information for an entire system. Be sure to obtain the manuals for NA Series Programmable Terminal, read and understand the safety points and other information required for use, and test sufficiently before actual use of the equipment.

  • Page 3: Terms And Conditions Agreements

     Note about Descriptions Rating and performance is tested separately. Combined conditions are not warranted. - Reference data is intended to be used just for reference. Omron does NOT guarantee that the Omron Product can work properly in the range of reference data.
  • Page 4 - Omron products are designed and manufactured as commodity for general industrial products. For this reason, the usages (a) to (d) are to be unintended. Omron makes no guarantees on Omron products, if you use Omron products for those purposes.
  • Page 5 The warranty described in this Terms and Conditions Agreements is a whole and sole liability for Omron products. There are no other warranties, expressed or implied. Omron and its distributors are not liable for any damages arisen from or relating to Omron products.  Export Control...

  • Page 6: Table Of Contents

    Table of Contents Terms and Conditions Agreements ............3 Table of Contents ..................6 Related Manuals ................. 7 Precautions ..................8 Overview....................9 Overview ..........................9 System Configuration ....................10 Library Versions ................11 IAG Descriptions ................12 LEDStatus_Monitor ......................12 Revision History ..................21...

  • Page 7: Related Manuals

    Related Manuals Model Title V117 NA5-15W□□□□ Programmable Terminal NA Series Hardware NA5-12W□□□□ USER’S MANUAL NA5-9W□□□□ NA5-7W□□□□ V118 NA5-15W□□□□ Programmable Terminal NA Series Software NA5-12W□□□□ USER’S MANUAL NA5-9W□□□□ NA5-7W□□□□ V119 NA5-15W□□□□ Programmable Terminal NA Series Device NA5-12W□□□□ Connection USER'S MANUAL NA5-9W□□□□ NA5-7W□□□□...

  • Page 8: Precautions

    OMRON. (5) The information in this guide is current as of February 2020. It is subject to change without notice because of product’s update.

  • Page 9: Overview

    • IAG installation on a screen Icon Description LEDStatus_Monitor Monitors LED statuses. The IAG is included in the IAG collection file below. File name Description GI_S_D_Monitor_IAG_12inch_RevA.iag For “RevA”, the underlined letter stands for version. Ask an Omron sales representative for the file.

  • Page 10: System Configuration

    3-2 System Configuration The IAG objects were tested with the system configuration and versions below. NA Series Sysmac Studio projects with IAGs EtherNet/IP Screen Transfer PC (Sysmac Studio) CIP Safety on EtherNet/IP devices ■Controller NX-CSG320 NX102 Series Series Series ■Ring Super Visor supporting R-SV device...

  • Page 11: Library Versions

    Library Versions This chapter describes the versions of the IAG library. You must check versions of the items listed in the table below before using the library. Item Description How to Check the Version IAG Collection The distributed IAG collection has The version can be checked in the library versions.

  • Page 12: Iag Descriptions

    IAG Descriptions 5-1 LEDStatus_Monitor 5-1-1 Specifications  External Specifications Object LEDStatus_Monitor Category GI_S_D_Monitor_IAG_12inch ・ Reads and displays the LED statuses of GI-S Series Safety I/O Terminal Unit with a Functions specified IP address. ・ Reads and displays the device information of the GI-S Series Safety I/O Terminal Unit. ・...
  • Page 13  Screen Specifications Status On this screen, the information and LED statuses of the Safety I/O Terminal Unit are displayed. Screen User I/F Specifications Part Description Data Display Selected Safety I/O Terminal Unit’s device name is displayed. Data Display Selected Safety I/O Terminal Unit’s IP address is displayed. Label Displays LED indicator’s updating status.
  • Page 14 Error Details This screen shows the errors that LEDs stand for and the solutions for them. and Solutions Window User I/F Specifications Part Description Button Displays the previous page. Button Displays the next page. Button Closes this window. Layout Properties Default Description Position...
  • Page 15 Communication This pop-up window notifies that communications between NA and Safety I/O Terminal Unit has been failed and Error Window quits displaying this IAG. User I/F Specifications Part Description Button Switches to the page with the name of the PreviousPageName variable. Layout Properties Default...
  • Page 16 Device This window shows the device information. Information Window User I/F Specifications Part Description Data Display Unit model is displayed. Data Display Unit version is displayed. Data Display Lot number is displayed. Data Display Serial number is displayed. Data Display Hardware version is displayed.
  • Page 17 (1 to 127) Type Object type. Not changeable. GI_S_D_Monitor_IA G_12inch.LEDStatu s_Monitor Version IAG version 1.0.0.0 Publisher IAG publisher Omron Promotion Sample Appearance Background Color Background color of a page Item Color pallet Transparent selection Character Direct input string Layout ▼Position (Left , Top)
  • Page 18  Version History IAG version Description IAG collection version 1.0.0.0 First edition Ver1.00  Events & Actions No events and actions  Animations Basic motions can be defined.  Security No security function available.
  • Page 19 5-2-2 Installation to Screen This IAG is intended to be used as the following:  When the button for GI-S Series Unit, which is displayed by the IAG “EtherNet_IP_Network Monitor” or IAG” DLR_Monitor” located on another page, is pressed, the currently displayed page switches to the page with this IAG and the IAG accesses to the Unit to receive the necessary information to display.
  • Page 20  Screen setting Place a button in the page where this IAG is placed. Set the event “click” and the action “ShowPage” and enter the page name in which IAG “EtherNet/IP NetworkMonitor” is placed. Enter the name of the page where “EtherNet_IP_Networ kMonior”...

  • Page 21: Revision History

    Revision History Revision Code Date Revision Description February 2020 First edition...
  • Page 22 2020 © OMRON Corporation All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No. 438A Alexandra Road # 05-05/08 (Lobby 2), specifications are subject to change without notice.
