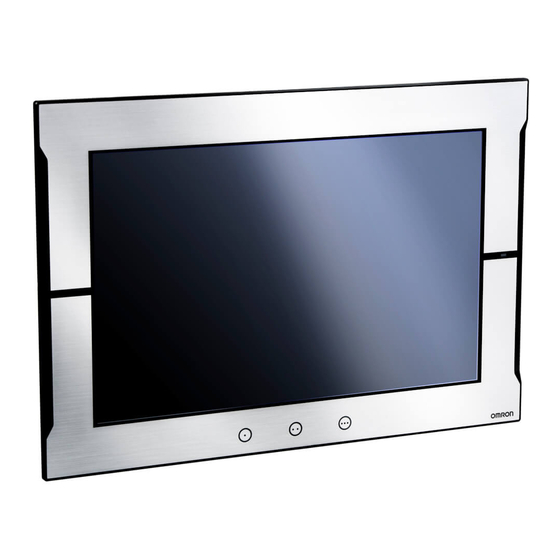

Programmable Terminal NA-series
Practices Guide
Creating Basic Pages
□□□□
NA5-15W
□□□□
NA5-12W
□□□□
NA5-9W
□□□□
NA5-7W
V421-E1-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron NA Series

Summary of Contents for Omron NA Series

  • Page 1 Programmable Terminal NA-series Practices Guide Creating Basic Pages □□□□ NA5-15W □□□□ NA5-12W □□□□ NA5-9W □□□□ NA5-7W V421-E1-01...
  • Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.

  • Page 3: Terms And Conditions Agreement

    Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.

  • Page 4: Application Considerations

    It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.

  • Page 5: Table Of Contents

    Contents Terms and Conditions Agreement ................ 3 Warranty, Limitations of Liability ..................... 3 Application Considerations ..................... 4 Disclaimers ..........................4 Related Manuals ..................... 7 １ Introduction ....................8 Overview ........................8 １-１ System Configuration ....................9 １-２ １-３ Procedure to Create Pages ..................10 ２...
  • Page 6 Synchronization ...................... 58 ５-２ ５-３ Operations ......................60 ６ Integrated Simulation .................. 61 ７ Reference Materials ..................62 Correspondence Table of Data Types between the NJ-series Controllers and the ７-１ PTs ......................... 62 NA Series Lineup....................63 ７-２ Revision History ....................64...

  • Page 7: Related Manuals

    Related Manuals The following manuals are related to this manual. Cat.No. Model Manual Name SBCA-362 SYSMAC-SE2□□□ Sysmac Studio Version 1 Operation Manual NA5-15W□□□□ SBSA-545 NA-series Programmable Terminal Hardware User’s NA5-12W□□□□ Manual NA5-9W□□□□ NA5-7W□□□□ NA5-15W□□□□ SBSA-546 NA-series Programmable Terminal Software User’s NA5-12W□□□□...

  • Page 8: Introduction

    １ Introduction In this chapter, you will learn what information is required to create the pages on the NA-series PTs while confirming the contents included in this guide. You will also learn the system configuration required and the procedure for creating pages. １-１...
  • Page 9 The Ethern net is used f for commun ications betw ween the NJ J series and d NA series, as well as for the scre een data tra ansfer from t the PC. Address: 192.16 68.250.20 Address: 192.1...

  • Page 10: Procedure To Create

    １-３ Pro ocedure to o Create Pages -３-１ Proc cedure to C Create Pag １- reate an NJ p project. efine global v variables for t the NJ. dd an NA to the NJ projec pecify the co onfiguration a nd settings f or the NA.

  • Page 11: Project Creation

    ２-１ Creating Projects ２-１-１ Creating a Project There are two ways to create a project to create pages for the NA series as described below: (1) Add NA to the existing NJ project. (2) Create a new NA project.

  • Page 12: Starting Up Sysmac Studio

    [Create]. A project file is then created. ・Project name “Arbitrary project name” ・Device “NJ301-1100” * ・Version “1.07” * * Specify the model and version of the NJ to be connected. The versions that are supported for the NA series are 1.01 and later.
  • Page 13 ２-２-３ Changing the Controller Name For easy identification, change the controller name. Right-click the NJ icon and select “Rename”. Change the controller name to “NJ_1”. ２-２-４ Confirming the IP Address To connect NJ with Sysmac Studio via EtherNet/IP , confirm the IP address of the NJ side as described below.

  • Page 14: Registering Global Variables

    ２-３ Registering Global Variables ２-３-１ Registering Global Variables To exchange data with the NA, register the global variables of the NJ. Double-click [Programming]-[Data]-[Global Variables]. Click the variable table and register a variable name. Subsequently, right-click on the variable table and select “Create New”.

  • Page 15: Basic Settings

    ３ Basic Settings This chapter describes the basic procedure to create an NA project, to specify communication settings, and to register variables. ３-１ Adding an NA ３-１-１ Adding an NA Add an NA to the project. Select [Insert]-[HMI]-[NA5]. Select an option from among the list according to the actual unit.
  • Page 16 Change the NA name for easy identification. Right-click the NA icon and select “Rename”. Change the name to “NA_1”.

  • Page 17: Sysmac Studio Window Components For Creating Na

    ３-２ Sysmac Studio Window Components for Creating NA Pages ３-２-１ Sysmac Studio Window Components for Creating NA Pages ③ ④ ① ② Name Description ① Mutiview Explorer Used to select items to set or pages to create. ② Edit Pane Used to perform configuration settings or to create pages.

  • Page 18: Na Communication Settings

    ３-３ NA Communication Settings ３-３-１ NA Communication Settings Specify the Ethernet communication settings following the procedure below. Double-click [Configurations and Setup]-[HMI Settings]. Click the “TCP/IP” icon. Set 192.168.250.20 in “IP Address”.

  • Page 19: Registering Variables

    NA A series and d register them as th he NA series s’ global vari iables. (“Cre eate Device Variable”) Sysm ac Studio Proj ject...
  • Page 20 automatically reported to the NA. ３-４-２ Variable Mapping Procedure Double-click [Configurations and Setup]-[Variable Mapping]. The controllers that exist within the project appear on the table. When you click the arrowhead to the left of “NJ_1”, the categories of the variables defined for the NJ_1 controller appear.
  • Page 21 The created variables are registered as the global variables for the NA project. Click [HMI]-[Data]-[Global Variables] and check if they are registered as the global variables.

  • Page 22: Creating Basic

    ４ Creat ing B Basic Page his chapter d describes th he procedure e to create b basic pages  Images of P Pages to Cr reate this chapte er, you are to o create the following pa ages. (1) Equipmen nt Monitor 2) Backgrou 3) Setting S...

  • Page 23: Adding

    ４-１ A Adding Pa ages ４-１-１ P Page Types In NA, you u can create the followin ng three type es of pages: Classific ation Description NS Equival ents Main pages e basic pages displayed duri ng NA operatio Basic c screens Popup pages e pages that ca...
  • Page 24 ４-１-３ Creating Page Groups  Pages and Page Groups You can create multiple pages as a group. By grouping multiple pages, you can easily copy the multiple pages such as alarm/troubleshooter pages as a unit. In this subsection, you are to group the troubleshooter pages.
  • Page 25 ４-１-４ Changing the Page Names In NA, the pages are managed by the names instead of the numbers. Right-click on a page and select [Rename]. Change all the page names as described on the right.
  • Page 26 ４-１-５ Specifying a Background Page You can specify a background page for each page. The setting can be performed from [Properties]. Select [View]-[Properties]. If you use the toolbar, click the icon. The [Properties] window appears on the right of the screen. Properties window The properties of the selected page...

  • Page 27: Creating On/Off Switches

    ４-２ C Creating O ON/OFF Switches ４-２-１ O Object Prop perties IN the NA series, the f functional pa arts laid out on pages a re called “ob bjects”. In the NS s series, the f unctional ob bjects placed d on pages a are all define ed only by “...
  • Page 28 ４-２-３ Creating ON/OFF Switches Create the START button on the “Control_Panel” page. Drag and drop the object from the Toolbox to the page. Open the “Control_Panel” page and click the “Toolbox” tab. From [Toolbox], select [Buttons]-[Momentary Button], and drag and drop it to the page. Use [Properties] to set text attributes.
  • Page 29 After p lacing the ob bject on the page, y you can chan nge its size b draggin ng the handle You ca an move it by y dragging its self. You ca an also chang ge the shape e or [Chang ging shape] [Changing color]...

  • Page 30: Creating Bit Lamps

    ４-３ Cre eating Bit t Lamps -３-１ Crea ating Bit La amps ４- reate a Bit L Lamp on the e “Control_P Panel” page. Select the [Toolbox x] tab. Select [Lamps]-[Bit t Lamp] and t then drag an nd drop it to the page.
  • Page 31 Additional Information In [Expression], you can specify a conditional expression using variables as described below: How to specify [Expression] When you assign a Boolean variable for an object such as Lamp, specify [Expression] under [Behavior] in [Properties] as below. Example 1: To execute the function when a Boolean variable (blnSample) is True; blnSample=True * If the value is True, you can omit the [=True] part.
  • Page 32 [Image eFileButtonU p] under [Appea arance]. Open t the folder loc cated at the followin ng path. C:¥Pro ogram Files¥O OMRON¥CX X-One¥CX-De esig ner¥int taparts¥BMP Pfiles¥LampS Swit ch-Rec ctangle Select LSW_21.BM MP and click “Open” ”. 3 32...
  • Page 33 “Ima age” in [Prope erties]. ecify the follo owing image files resp pectively for the Lamp. File e path C:¥ ¥Program File es¥OMRON¥ ¥CX-One¥CX X-Desig ner¥ ¥intaparts¥B BMPfiles¥Lam mps-Cir ageFileOff: C CIR_11.BMP Inag geFileOn: CI R_10.BMP...

  • Page 34: Creating Labels

    ４-４ Cre eating La bels -４-１ Crea ating Labe ４- reate a Labe el on the “Co ontrol_Pane el” page. Select the [Toolbox x] tab. Select [Standa ard Controls ]-[Label] and then dr rag and drop p it to the pag Click th he [Propertie es] tab and...
  • Page 35 Chang e [Text (Defa ault)] to “Sett ting Screen n” in [Propert ties]. Similar rly, copy and paste the La abel 《Indic cator page》 respec ctively to the “Indicator” a “Alarm_ _Display” pa ages and the modify the text resp pectively.

  • Page 36: Off-Line Testing 1

    ４-５ Off- -line Test ting 1 -５-１ Build ４- heck if there e is no error in the creat ted pages to o confirm tha a t they opera a te properly. Select [Project]-[Bu uild HMI]. The Bu uild window a appears at th bottom m of the scree...

  • Page 37: Creating The Button To Switch

    ４-６ Creating the Button to Switch Pages ４-６-１ Events and Actions To create a button to switch pages, perform settings to display the new page upon pressing the button. Use [Events and Actions] to perform such settings.  Available Actions Actions Description CallSubroutine...
  • Page 38 -６-２ Crea ating the B Buttons to S Switch Pag ４- reate the Bu uttons to swi itch pages o on the “Back kground” pag Open t the “Backgro ound” page. Select from the Too olbox [Button ns]-[Button], a and then dra and dro op it to the p age.
  • Page 39 Click th he cell to the right of [Action ns], and selec ct “ShowPag ge”. Click th he cell to the right of [PageN Name] and se elect “Contro ol_Panel”. This co ompletes the e settings for switchi ng pages. Next, s specify the pr roperties.
  • Page 40 In [Eve ents and Acti ons], set “Data_ _Display” in [P PageName]. Similar rly, create the e Buttons to switch to the “Indica ator” and “Alarm_ _Display” pa ages respec ctively. 1) Cop py and past t the Button to o the resp pective page...

  • Page 41: Creating Data Display/Edit Objects

    ４-７ C Creating D Data Disp play/Edit Objects ４-７-１ C Creating Da ata Display y Objects Create on the “Data_D Display” pag ge a Data Display object t . m [Toolbox], select [Stan ndard ntrols]-[Data Display] and d drag d drop it to th e page.
  • Page 42 -７-２ Crea ating Data Edit Objec ４- reate on the e “Data_Disp play” page a a Data Edit o o bject. From [T Toolbox], se lect [Standar Contro ls]-[Data Edi it] and drag a drop it to the page. In [Pro perties], set “NJ_1_Num 1”...
  • Page 43 ４-７-３ B Batch Modi fication of Objects by y the Page e Explorer The Page Explorer dis splays the ob bjects includ ded in the pa ages in the t tree format. It allows you to edit t the propert ties including g the text siz ze and othe...
  • Page 44 Modify the objects’ sizes and adjust the positions.
  • Page 45 ４-７-４ C Creating the e Labels Create the e Labels of th he Data obje ects. m [Toolbox], select [Stan ndard ntrols]. Drag and drop two o Label obje ects to the pa age. In [P Properties], c change [Text efault)] to [Da ata Display] a ta Input] resp...

  • Page 46: Creating Gauges

    Object ４- he Gauge o bjects displa ay the digita al values of v variables in t the analog f format. he NA series s provides tw wo basic ga auge types. Description Appear rance Linear Ga auge Linearly display...
  • Page 47 ４-８-３ C Creating Sl iders Create a S Slider for che ecking the o operation. m [Toolbox], select [Stan ndard ntrols]-[Slider r] and drag a drop p it to the pa In [P Properties], s set “NJ_1_N um2” in [Var riable] under r [Behavior].

  • Page 48: Off-Line Testing 2

    ４-９ Off- -line Test ting 2 -９-１ Off- line Testin ４- uild the proje ect and star rt up the sim mulator. Operation Ch heck 1] Click the [Se etting Scree en] Button to o switch the page. When you c click the Data a Edit objec ct, a numeric...

  • Page 49: Creating Alarms

    ４-１０ Creating g Alarms ４-１０-１ A Alarm Mech hanism Just as the e convention nal PTs, the NA has the e function to manage ala arms that giv ve the users the warnin gs of errors and problem ms occurred d in the mac hines.
  • Page 50 -１０-２ Cre eating Alar rm Lists ４- rst, create a an alarm list Double e-click to ope en [HMI]-[Use Alarms s]-[Group0]. Right-c click on the E Edit Pane and select “ “Add”. Registe er the followi ing alarms respec ctively. <Alarm m1>...
  • Page 51 Displaying g the Troub bleshooter ４-１０-３ Perform se ettings so th at the troub leshooter is displayed w w hen confirm m ing errors. ile keeping o one of the sp ecified alar rms selected d, open the [E Events d Actions] win ndow.
  • Page 52 milarly for the No Work err ror, perf form the sett tings so that “No o_Work” page e is displaye d when firing the err ror. 5 52...
  • Page 53 Creating A Alarm Obje ects (Active e Display M Mode) ４-１０-４ The Alarm objects inc lude the mo ode in which to display th he currently raised alarm ms (Active Display Mo ode) and the e other mod e in which to o display the e log (Log D Display Mode...
  • Page 54 ４-１０-６ Creating a Switch to Cause Alarms To check operations, create a switch that causes alarms. Place a Momentary Button on the page. Specify the properties as described below. [TextButtonUp(Default)] Alarm1 [TextButtonDown(Default)] Alarm1 [Variable] NJ_1_ALM1 Copy and paste the object, and specify the properties as described below.

  • Page 55: Displaying Pdf Files

    Displayi ng PDF F Files ４-１１ Displaying g PDF Files ４-１１-１ Perform th he settings fo or displaying g a PDF file when press s ing a Button n . Plac ce a Button o object on the “Ba ttery_Error” page.

  • Page 56: Displaying Videos

    ４-１２ D Displaying g Videos -１２-１ Dis splaying Vi deos ４- erform the s settings for d displaying vid deos. Open t the “No_Wor rk” page. Sel [HMI C Controls]-[Me dia Player] a drag an nd drop it to the page. In [Pro perties], click k the...

  • Page 57: ５ Check On The Actual Unit

    ５ Chec ck on n the Actu al Un This chapt ter describes s the proced dure to trans sfer the proje ect data of S Sysmac Stud dio to an NA unit to che eck the opera ation. If you do n not have any y actual unit, , you can ch...
  • Page 58 ５-２ Syn nchroniza ation -２-１ Syn chronizatio on with NJ ５- o transfer th e configurat tions and se ettings as we e ll as the pro o grams of th h e NJ, synch h ronize ith the NJ. Select [Contro oller]-[Comm...

  • Page 59: Synchronization

    ５-２-２ S Synchroniza ation with Subseque ntly, synchro onize with N NA to transfe e r the configurations and d settings as s well as the programs o of the NA. tich the proje ect to “NA_1” ”. Sele ect [HMI]-[Co ommunicatio Setu up…].

  • Page 60: Operations

    ５-３ Ope erations -３-１ Che ecking Ope erations ５- heck the op erations on each page. ) Equipment t Monitor Lamp objec cts light up w while a STAR RT Button is s held down. indications of the switch hes and lam mps change when turnin ng ON/OFF t...

  • Page 61: ６ Integrated Simulation

    ６ Integ grate d Sim mulat When you do not have e an actual N NJ or NA un nit, you can c confirm the NJ program ms and NA operations s using the in ntegrated sim mulation fun nction as de scribed belo Clic ck [Simulation...

  • Page 62: Reference Materials

    ７ Reference Materials ７-１ Correspondence Table of Data Types between the NJ-series Controllers and the PTs ７-１-１ Data Types Following is the correspondence of data types between the NJ-series controllers and the PTs. Data Types of the NJ-series Data Types of the PTs Controllers BOOL Boolean...

  • Page 63: Na Series Lineup

    ７-２ NA Series Lineup ７-２-１ NA Series Lineup The NA series offers the lineup of 7-inch, 9-inch, 12-inch and 15-inch screen sizes. The model differs depending on the screen size. Models NA5-15W□□□□ NA5-12W□□□□ NA5-9W□□□□ NA5-7W□□□□ Screen Size 15 inches 12 inches...

  • Page 64: Revision History

    Revision History Revision code Date Revised content September 2015 Original production...
