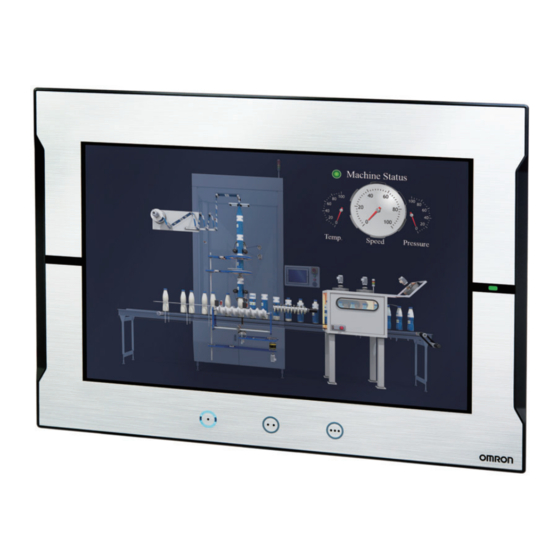

- Page 1 Programmable Terminal NA-series Practices Guide Page Editing – Broken-line Graph NA5-15□101□ NA5-12□101□ NA5-9□001□ NA5-7□001□ V424-E1-01...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Terms And Conditions Agreement
Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied. -
Page 4: Application Considerations
It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability. -
Page 5: Table Of Contents
Terms and Conditions Agreement Contents Terms and Conditions Agreement ................ 3 Warranty, Limitations of Liability ..................... 3 Application Considerations ..................... 4 Disclaimers ..........................4 １ Broken-line Graphs ..................7 Broken-line Graph Basic Settings ................7 １-１ Revision History ....................13... - Page 6 Related Manuals The following manuals are related to this manual. Cat.No. Model Manual Name W504 SYSMAC-SE2□□□ Sysmac Studio Version 1 Operation Manual NA5-15W□□□□ V117 NA-series Programmable Terminal Hardware User’s NA5-12W□□□□ Manual NA5-9W□□□□ NA5-7W□□□□ NA5-15W□□□□ V118 NA-series Programmable Terminal Software User’s NA5-12W□□□□...
-
Page 7: Broken-Line Graphs
１ Broken-line Graphs １-１ Broken-line Graph Basic Settings The Broken-line Graph objects display the graphs of the current value of array variables or multiple variables of the same data type. Beware that a Broken-line Graph object does not operate in the simulation function of Sysmac Studio. You must transfer data to the NA unit and operate the actual unit to confirm operations. - Page 8 You can have different types of data series such as “Variable” and “Array” within a data group. Following is the explanation of the settings in cases where “Variable” is specified as the graph type. To add the variables to be displayed in the graph, right-click and select “Add”, or click the [+] button.
- Page 9 １-１-２ Setting the Properties of a Broken-line Graph Object Perform settings for displaying as a graph the data group specified in the previous subsection. From [Toolbox], select [HMI Controls]-[Broken-line Graph] and drag and drop it to the page. In [DataGroup] under [Data] in the Properties, enter the name of the data group created in the previous subsection.
- Page 10 Specify the timing for the graph to be updated. You can select from among two options: to update at a constant interval, or to update when a variable condition is met. If you select “Interval” in [DisplayUpdateType] under [Behavior] in the Properties, the graph display is updated at the interval specified in [UpdateRate] (unit: msec.).
- Page 11 １-１-３ Checking Operations of the Broken-line Graph Object Check the operations of the Broken-line Graph object created in the previous subsection. Create a Data Edit object for checking the operations. From [Toolbox], select [Standard Controls]-[Data Edit] and drag and drop it to the page. Specify arbitrarily the font type and size.
- Page 12 Click the [Transfer To Device] Button. After the transfer is completed, enter values in the Data Edit objects created in Steps 1 to 3 on the NA unit. Confirm that the value in the graph changes at the timing specified in Step 5 or 6 in “1-1-2 Setting the Properties of a Broken-line Graph Object”, in accordance with the...
-
Page 13: Revision History
Revision History Revision code Date Revised content December 2015 Original production... - Page 14 Note: Do not use this document to operate the Unit. 2015 V424-E1-01 1215 (1215)
