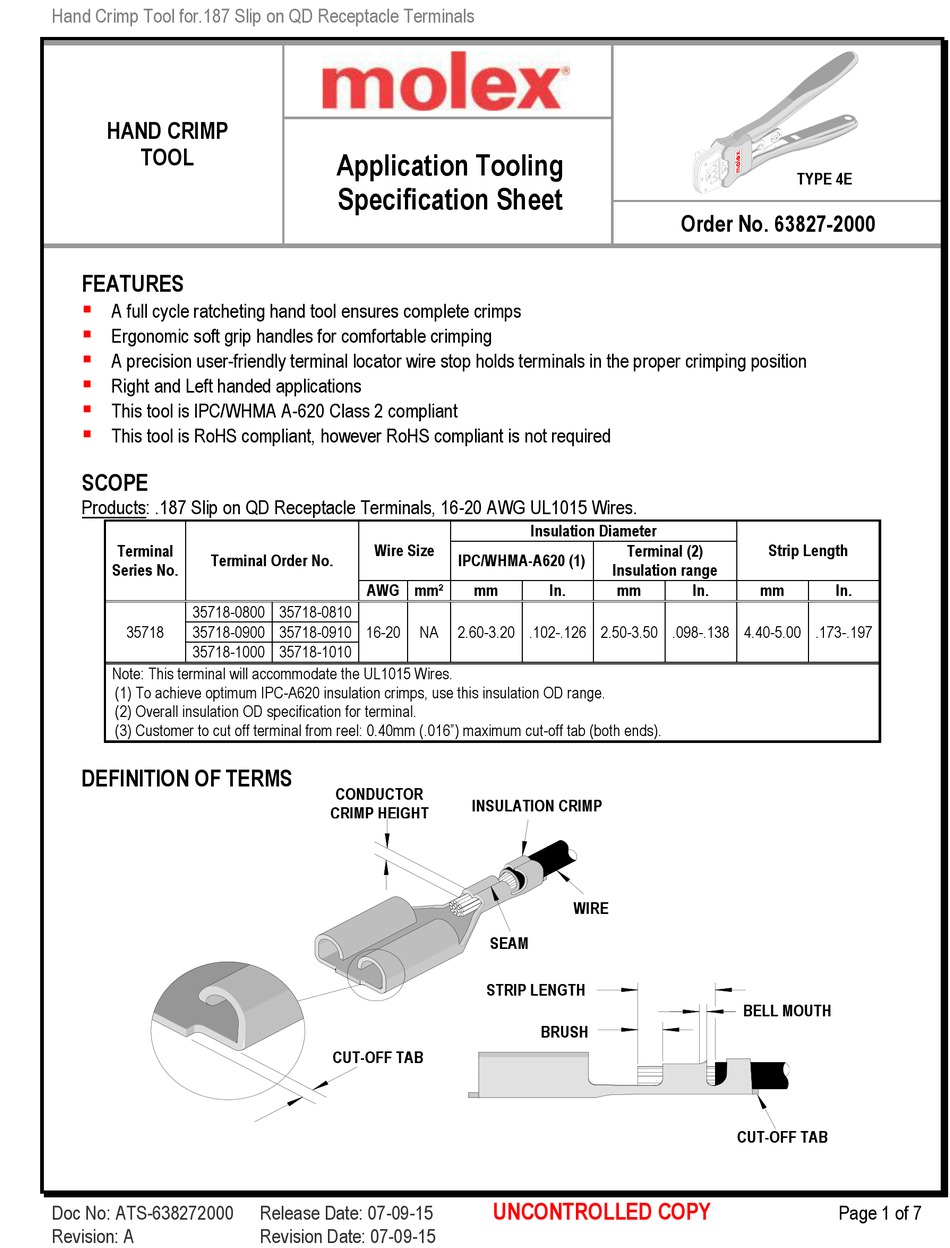

Hand Crimp Tool for.187 Slip on QD Receptacle Terminals
HAND CRIMP
TOOL
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is IPC/WHMA A-620 Class 2 compliant
This tool is RoHS compliant, however RoHS compliant is not required
SCOPE
Products: .187 Slip on QD Receptacle Terminals, 16-20 AWG UL1015 Wires.
Terminal
Terminal Order No.
Series No.
35718-0800 35718-0810
35718
35718-0900 35718-0910
35718-1000 35718-1010
Note: This terminal will accommodate the UL1015 Wires.
(1) To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
(2) Overall insulation OD specification for terminal.
(3) Customer to cut off terminal from reel: 0.40mm (.016") maximum cut-off tab (both ends).
DEFINITION OF TERMS
Doc No: ATS-638272000
Revision: A
Application Tooling
Specification Sheet
Wire Size
AWG mm²
16-20
NA
CONDUCTOR
CRIMP HEIGHT
CUT-OFF TAB
Release Date: 07-09-15
Revision Date: 07-09-15
Insulation Diameter
Terminal (2)
IPC/WHMA-A620 (1)
Insulation range
mm
In.
mm
2.60-3.20 .102-.126 2.50-3.50 .098-.138 4.40-5.00 .173-.197
INSULATION CRIMP
WIRE
SEAM
STRIP LENGTH
BRUSH
UNCONTROLLED COPY
TYPE 4E
Order No. 63827-2000
Strip Length
In.
mm
In.
BELL MOUTH
CUT-OFF TAB
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for molex 63827-2000
Summary of Contents for molex 63827-2000
- Page 1 Hand Crimp Tool for.187 Slip on QD Receptacle Terminals HAND CRIMP TOOL Application Tooling TYPE 4E Specification Sheet Order No. 63827-2000 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping ...
- Page 2 1. Pull Force should be measured with no influence from the insulation crimp. 2. The above specifications are guidelines to an optimum crimp. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
- Page 3 Hand Crimp Tool for.187 Slip on QD Receptacle Terminals OPERATION Open the tool by squeezing the handles together. INSERT At the end of the closing stroke, the ratchet TEMINAL mechanism will release the handles and the hand tool will spring open. See Figure 1. Crimping Terminals 1.
- Page 4 Hand Crimp Tool for.187 Slip on QD Receptacle Terminals 5. Replace the locator assembly into the frame head. MATCH 6. Reinstall the tightening lock nut. MATCH UP MARKS UP MARKS Remove and Install Tooling 1. Make sure the tool is in open position before remove or install tooling. 2.
- Page 5 This tool is designed for hand use only. Any clamping, fixturing, or use of handle extensions voids this warranty. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY...
- Page 6 Molex does not certify or re-certify hand tools but rather supplies the following guidelines for customers to re-certify hand tools. This tool is qualified to pull force only. See the Molex web site for the Quality Crimp Handbook for more ...
- Page 7 Spring, Ratchet M4 LOCKNUT M3 x 6 LG SCREW M4 x 30 LG SCREW M4 x 12 LG SCREW Figure 9 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638272000 Release Date: 07-09-15 Page 7 of 7 Revision: A...
