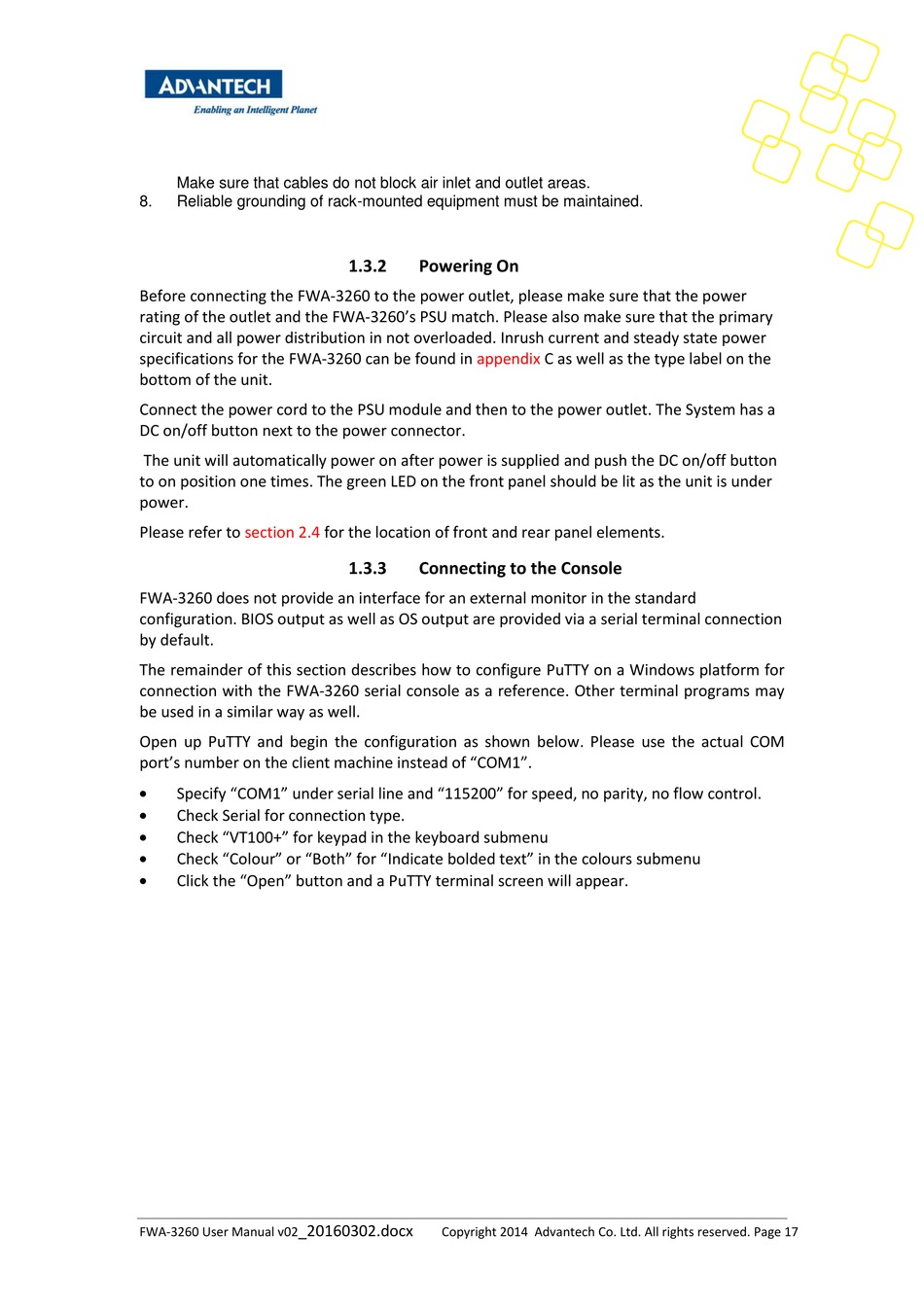

Make sure that cables do not block air inlet and outlet areas.
8. Reliable grounding of rack-mounted equipment must be maintained.
Before connecting the FWA-3260 to the power outlet, please make sure that the power
rating of the outlet and the FWA-3260's PSU match. Please also make sure that the primary
circuit and all power distribution in not overloaded. Inrush current and steady state power
specifications for the FWA-3260 can be found in
bottom of the unit.
Connect the power cord to the PSU module and then to the power outlet. The System has a
DC on/off button next to the power connector.
The unit will automatically power on after power is supplied and push the DC on/off button
to on position one times. The green LED on the front panel should be lit as the unit is under
power.
Please refer to section 2.4
FWA-3260 does not provide an interface for an external monitor in the standard
configuration. BIOS output as well as OS output are provided via a serial terminal connection
by default.
The remainder of this section describes how to configure PuTTY on a Windows platform for
connection with the FWA-3260 serial console as a reference. Other terminal programs may
be used in a similar way as well.
Open up PuTTY and begin the configuration as shown below. Please use the actual COM
port's number on the client machine instead of "COM1".

Specify "COM1" under serial line and "115200" for speed, no parity, no flow control.

Check Serial for connection type.

Check "VT100+" for keypad in the keyboard submenu

Check "Colour" or "Both" for "Indicate bolded text" in the colours submenu

Click the "Open" button and a PuTTY terminal screen will appear.
_20160302.docx
FWA-3260 User Manual v02
1.3.2

Powering On

appendix
for the location of front and rear panel elements.
1.3.3

Connecting to the Console

Copyright 2014 Advantech Co. Ltd. All rights reserved. Page 17
C as well as the type label on the
