Industrial Electronic Devices
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses,
PROFINET and EtherNet/IP.
By Pressing the
"Set
Communication" button from the main window for SW67B78
(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means of the fields for "PROFINET Master" are:
In the fields
"IP
Address" the IP address for PROFINET side of the converter
is defined;
In the fields
"SubNet
converter is defined;
In the fields "Gateway" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used
for going out of the net;
In the field
"Name of
Station" the name of the PROFINET node is defined.
In the field
"IP
Address" the IP address for EtherNet/IP side of the converter
is defined;
In the field
"SubNet
converter is defined;
In the field "Gateway" the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "Port" the port to use for EtherNet/IP communication is defined;
In the field
"Number Bytes
Master to the converter is defined;
In the field
"Number Bytes Output
to the EtherNet/IP Master is defined;
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask for PROFINET side of the
Mask" the SubNet Mask for EtherNet/IP side of the
Input" the number of byte from the EtherNet/IP
" the number of byte from the converter
User Manual PROFINET Master / EtherNet/IP
Document code: MN67B78_ENG
Revision 1.000

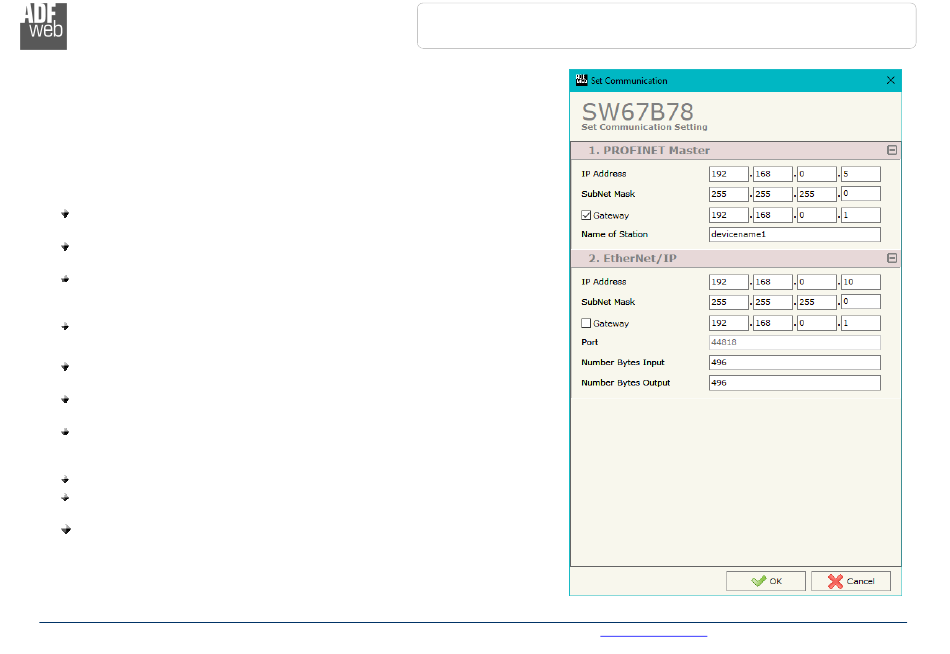

Figure 3: "Set Communication" window
INFO:
www.adfweb.com
Page 15 of 28
